CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

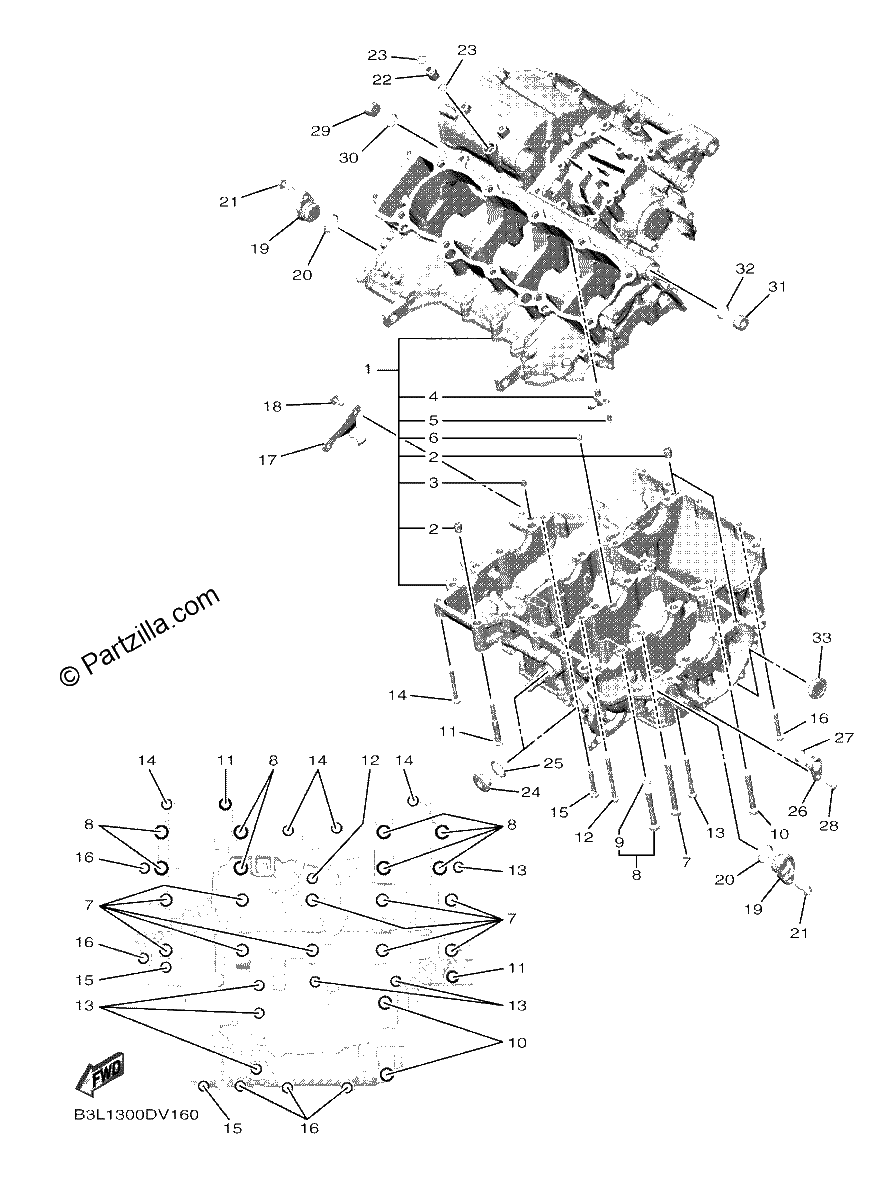

Diagrama de CRANKCASE

Repuestos

#1
B3L-15100-09-00
Crankcase Assy
$3505.89¢1 752 944
1
#2
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#3
91808-16002-00
PIN, DOWEL
$5.81¢2 906
1
#4
B3L-15105-00-00
Nozzle Assy
$75.70¢37 850
1
#5
90149-06158-00
SCREW
$7.56¢3 781
1
#6
2CR-15138-00-00
NOZZLE 1
$4.94¢2 469
1
#7
90119-09010-00
BOLT, WITH WASHER
$13.70¢6 850
1
#8
14B-15156-00-00
BOLT, CRANKCASE JOURNAL
$8.97¢4 488
1
#9
93210-07540-00
O-RING
$6.88¢3 438
1
#10
95812-08060-00
BOLT, FLANGE
$3.89¢1 944
1
#11
90109-06100-00
BOLT
$9.06¢4 531
1
#12
95812-06070-00
BOLT, FLANGE
$7.71¢3 856
1
#13
95812-06060-00
Bolt, Flange
$3.19¢1 594
1
#14
95812-06050-00
BOLT, FLANGE
$1.80¢900
1
#15
90105-06213-00
BOLT, FLANGE
$1.80¢900
1
#16
95812-06040-00
BOLT, FLANGE
$5.41¢2 706
1
#17
2CR-15441-01-00
HOLDER, CLUTCH CABLE
$11.31¢5 656
1
#18
90110-06399-00
BOLT, HEXAGON SOCKET HEAD
$1.86¢931
1
#19
2CR-15189-00-00
PLUG
$14.21¢7 106
1
#20
93210-23326-00
O-RING
$7.34¢3 669
1
#21
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
#22
2CR-13191-00-00
PIPE, DELIVERY 4
$8.15¢4 075
1
#23
93210-11453-00
O-RING
$6.99¢3 494
1
#24
4H7-15189-00-00
PLUG
$30.76¢15 381
1
#25
93210-207A0-00
O-Ring
$1.15¢575
1
#26
2CR-15319-02-00
JOINT
$34.24¢17 119
1
#27
93210-13657-00
O-RING
$6.99¢3 494
1
#28
90149-06068-00
SCREW
$3.99¢1 994
1
#29
90338-16262-00
PLUG
$13.77¢6 887
1
#30
93210-12790-00
O-RING
$6.85¢3 425
1
#31
90338-16009-00
PLUG
$13.26¢6 631
1
#32
93210-16325-00
O-RING
$6.99¢3 494
1
#33
2H7-15361-00-00
GAUGE, LEVEL
$102.81¢51 406
1
