ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

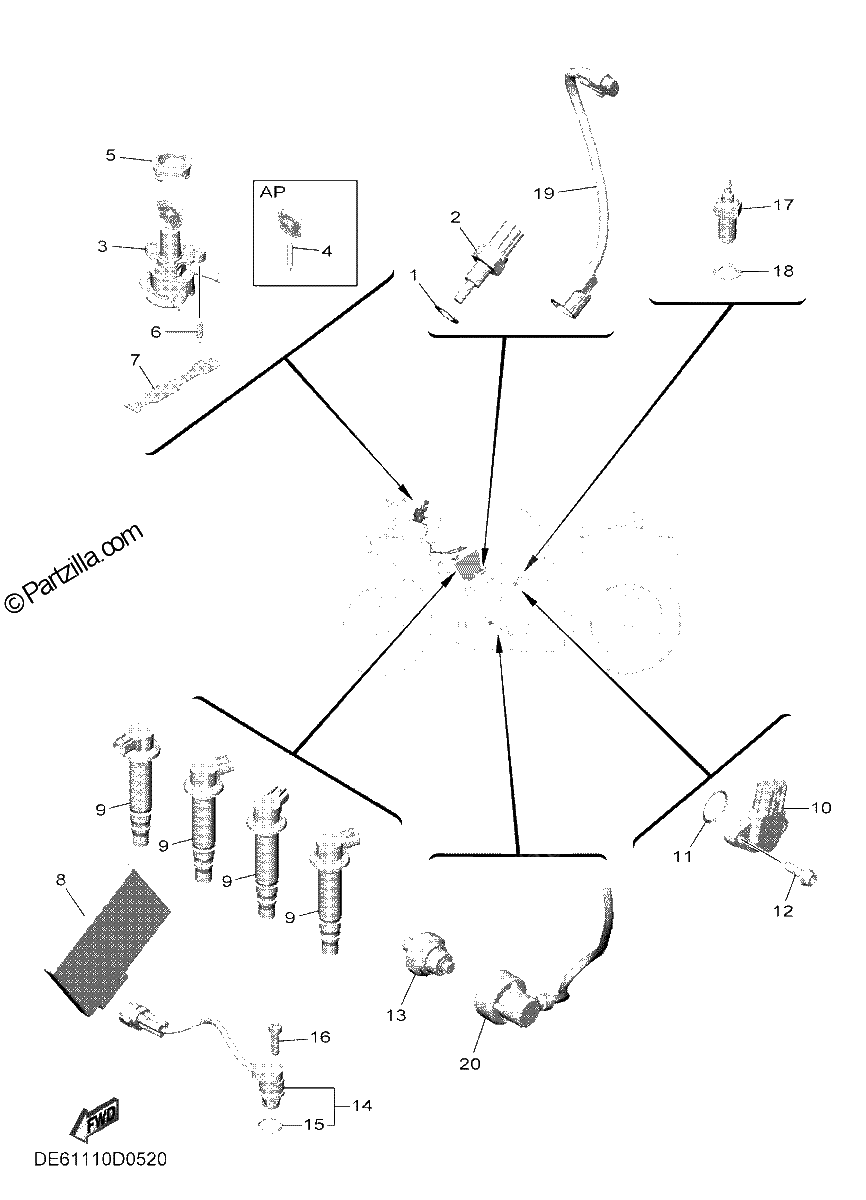

Diagrama de ELECTRICAL 1

Repuestos

#1
90430-10004-00
GASKET
$6.51¢3 254
1
#2
52B-H3591-00-00
THERMO UNIT
$31.65¢15 824
1
#3
B3L-82501-11-00
MAIN SWITCH STEERING LOCK
$183.37¢91 684
1
#4
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#5
36P-82552-00-00
CAP, SWITCH
$13.78¢6 889
1
#6
90109-08196-00
BOLT
$6.76¢3 381
1
#7
B3L-2376R-00-00
Protector
$2.77¢1 386
1
#8
B3L-8591A-11-00
ENGINE CONTROL UNIT ASSY (replaces B3L-8591A-10-00)
$1547.89¢773 944
1
#9
2CR-82310-00-00
IGNITION COIL ASSY
$130.50¢65 251
1
#10
2CR-85899-10-00
SENSOR, GEAR POSITION
$119.69¢59 846
1
#11
93210-17008-00
O-RING
$1.99¢995
1
#12
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#13
1WS-82504-01-00
OIL PRESSURE SWITCH ASSY
$66.99¢33 494
1
#14
B3L-85896-01-00
SENSOR, CAM POSITION
$170.11¢85 054
1
#15
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#16
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#17
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#18
90430-10148-00
Gasket
$5.21¢2 605
1
#19
1RC-82309-01-00
WIRE, SUB LEAD
$22.37¢11 184
1
#20
B3L-82509-11-00
WIRE, SUB LEAD
$14.04¢7 021
1
