FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

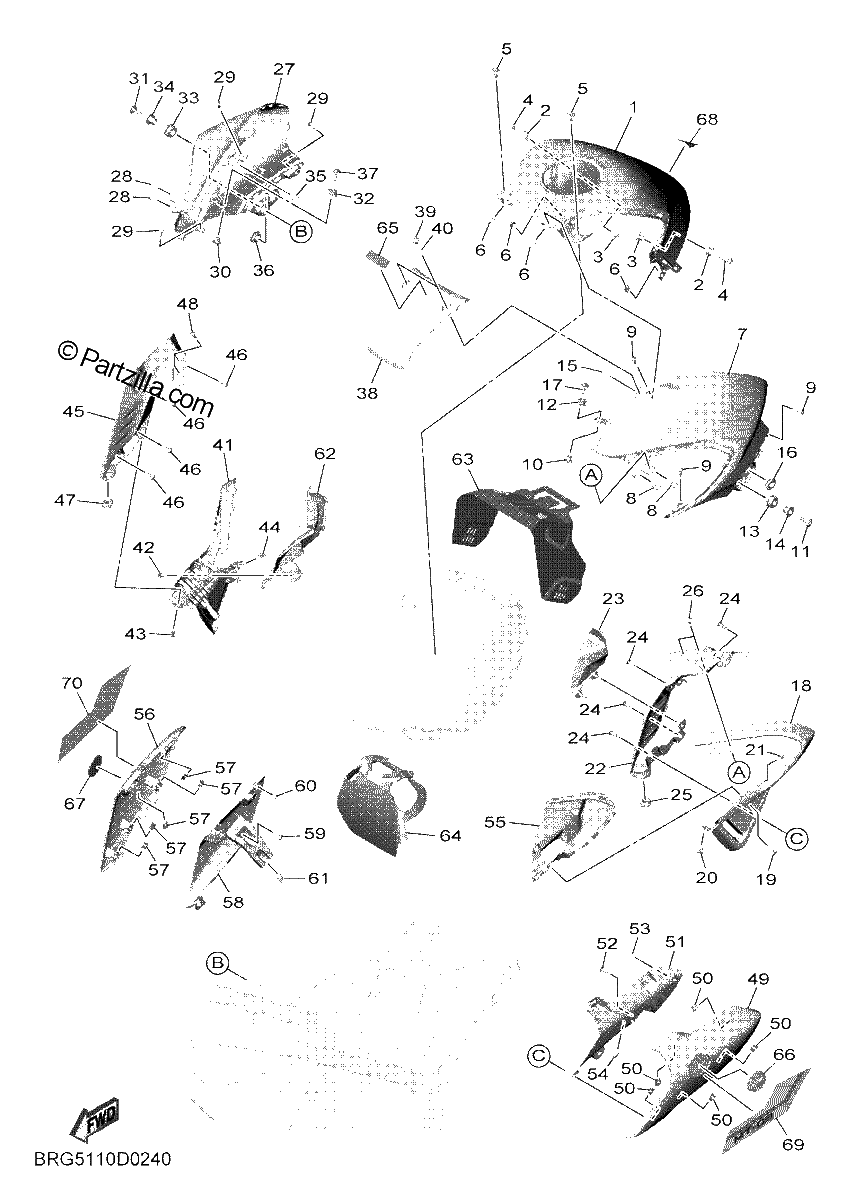

Diagrama de FUEL TANK 2

Repuestos

#1
B9T-F41B1-00-P5
COVER, TANK
$48.90¢24 450
1
#2
90480-12808-00
GROMMET
$2.95¢1 475
1
#3
90387-06899-00
COLLAR
$2.94¢1 469
1
#4
90119-06309-00
BOLT, WITH WASHER
$2.06¢1 031
1
#5
90109-068B2-00
BOLT (B9B1)
$0.49¢244
1
#6
90183-05042-00
NUT, SPRING
$1.25¢625
1
#7
B9T-F4129-00-P1
COVER, SIDE 1
$29.53¢14 763
1
#8
90183-05042-00
NUT, SPRING
$1.25¢625
1
#9
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#10
90387-06899-00
COLLAR
$2.94¢1 469
1
#11
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#12
90480-12808-00
GROMMET
$2.95¢1 475
1
#13
90480-17007-00
GROMMET
$7.52¢3 762
1
#14
90387-10107-00
COLLAR
$5.41¢2 706
1
#15
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#16
90480-01559-00
Grommet
$5.72¢2 863
1
#17
90119-05020-00
BOLT, WITH WASHER
$6.38¢3 188
1
#18
B9T-F838N-00-00
DUCT 1
$12.75¢6 375
1
#19
90160-05009-00
SCREW, ROUND TAPPI
$0.51¢256
1
#20
90269-06816-00
RIVET
$1.71¢856
1
#21
90183-05042-00
NUT, SPRING
$1.25¢625
1
#22
BRG-F137K-00-00
GUIDE, AIR 3
$12.14¢6 069
1
#23
BRG-F4217-00-00
COVER
$6.29¢3 144
1
#24
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#25
90480-01559-00
Grommet
$5.72¢2 863
1
#26
90160-05009-00
SCREW, ROUND TAPPI
$0.51¢256
1
#27
B9T-F4139-00-P1
COVER, SIDE 2
$29.53¢14 763
1
#28
90183-05042-00
NUT, SPRING
$1.25¢625
1
#29
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#30
90387-06899-00
COLLAR
$2.94¢1 469
1
#31
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#32
90480-12808-00
GROMMET
$2.95¢1 475
1
#33
90480-17007-00
GROMMET
$7.52¢3 762
1
#34
90387-10107-00
COLLAR
$5.41¢2 706
1
#35
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#36
90480-01559-00
Grommet
$5.72¢2 863
1
#37
90119-05020-00
BOLT, WITH WASHER
$6.38¢3 188
1
#38
B9T-F171A-00-P1
COVER, TOP
$16.07¢8 038
1
#39
90111-05056-00
BOLT,HEX. SOCKET B
$2.60¢1 300
1
#40
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#41
B9T-F838R-00-00
DUCT 2
$12.75¢6 375
1
#42
90160-05009-00
SCREW, ROUND TAPPI
$0.51¢256
1
#43
90269-06816-00
RIVET
$1.71¢856
1
#44
90183-05042-00
NUT, SPRING
$1.25¢625
1
#45
BRG-F137L-00-00
GUIDE, AIR 4
$12.56¢6 281
1
#46
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#47
90480-01559-00
Grommet
$5.72¢2 863
1
#48
90160-05009-00
SCREW, ROUND TAPPI
$0.51¢256
1
#49
B9T-F137W-00-P1
SCOOP, AIR 1
$31.11¢15 556
1
#50
90183-05042-00
NUT, SPRING
$1.25¢625
1
#51
B9T-F836K-00-00
PANEL, INNER 1
$12.24¢6 119
1
#52
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#53
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#54
90183-05042-00
NUT, SPRING
$1.25¢625
1
#55
BRG-F837N-00-00
GRILL, AIR INTAKE 1
$4.55¢2 275
1
#56
B9T-F137X-00-P1
SCOOP, AIR 2
$30.88¢15 438
1
#57
90183-05042-00
NUT, SPRING
$1.25¢625
1
#58
B9T-F836L-00-00
PANEL, INNER 2
$12.24¢6 119
1
#59
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#60
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#61
90183-05042-00
NUT, SPRING
$1.25¢625
1
#62
BRG-F837R-00-00
GRILL, AIR INTAKE 2
$4.55¢2 275
1
#63
BRG-E449E-00-00
COVER, AIR CLEANER
$22.01¢11 006
1
#64
BRA-F1642-00-00
GUARD, FLAP
$10.72¢5 363
1
#65
1TP-2118K-A2-00
. LABEL, CAUTION
$7.16¢3 581
1
#66
1WD-F413B-01-00
TUNING FORK MARK, 3D
$10.56¢5 281
1
#67
1WD-F413B-01-00
TUNING FORK MARK, 3D
$10.56¢5 281
1
#68
B04-F4254-K0-00
GRAPHIC, FUEL TANK 7
$7.82¢3 912
1
#69
BRG-F8391-00-00
GRAPHIC 1
$14.31¢7 156
1
#70
BRG-F8392-00-00
GRAPHIC 2
$14.31¢7 156
1
