SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

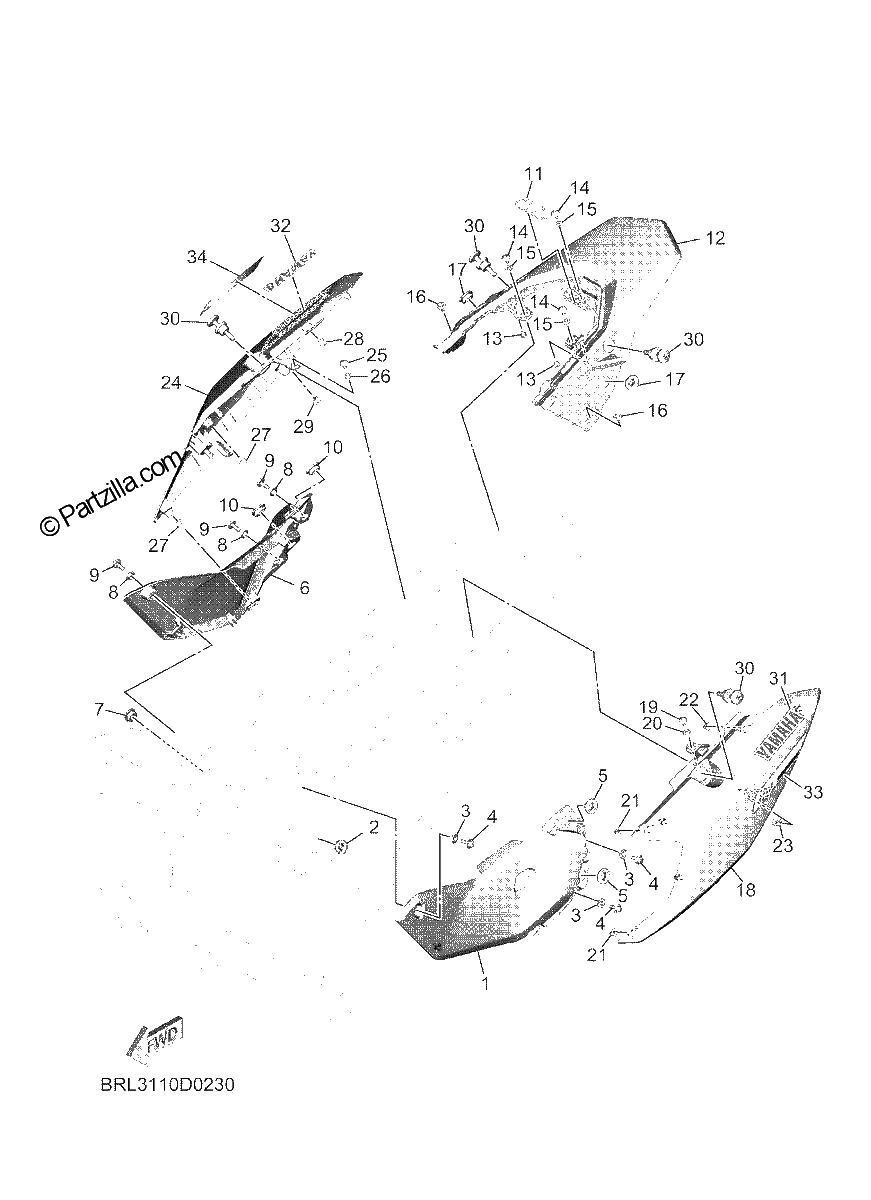

Diagrama de SIDE COVER

Repuestos

#1
BRL-21711-00-00
COVER, SIDE 1
$60.77¢30 388
1
#2
90480-01558-00
Grommet
$4.69¢2 344
1
#3
90387-06X71-00
COLLAR
$6.55¢3 275
1
#4
90149-06221-00
SCREW
$4.20¢2 100
1
#5
90480-01559-00
Grommet
$5.72¢2 863
1
#6
BRL-21721-00-00
COVER, SIDE 2
$60.77¢30 388
1
#7
90480-01558-00
Grommet
$4.69¢2 344
1
#8
90387-06X71-00
COLLAR
$6.55¢3 275
1
#9
90149-06221-00
SCREW
$4.20¢2 100
1
#10
90480-01559-00
Grommet
$5.72¢2 863
1
#11
BRL-21732-00-00
SEAL 1
$4.83¢2 413
1
#12
BRL-2171E-00-P0
COVER, SIDE 5
$129.00¢64 500
1
#13
90338-07180-00
PLUG
$6.76¢3 381
1
#14
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#15
90387-05035-00
COLLAR
$5.99¢2 994
1
#16
90149-05042-00
SCREW
$3.33¢1 663
1
#17
90480-01559-00
Grommet
$5.72¢2 863
1
#18
BRL-21731-00-P1
COVER, SIDE 3
$144.19¢72 094
1
#19
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#20
90387-05035-00
COLLAR
$5.99¢2 994
1
#21
90468-040A0-00
CLIP
$7.43¢3 713
1
#22
90468-040A0-00
CLIP
$7.43¢3 713
1
#23
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#24
BRL-21741-00-P1
COVER, SIDE 4
$144.19¢72 094
1
#25
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#26
90387-05035-00
COLLAR
$5.99¢2 994
1
#27
90468-040A0-00
CLIP
$7.43¢3 713
1
#28
90468-040A0-00
CLIP
$7.43¢3 713
1
#29
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#30
BMB-2162A-00-00
HOOK
$120.17¢60 088
1
#31
BRL-2153E-10-00
EMBLEM, YAMAHA
$6.54¢3 269
1
#32
BRL-2153E-10-00
EMBLEM, YAMAHA
$6.54¢3 269
1
#33
BRL-2173E-10-00
GRAPHIC 1
$22.64¢11 319
1
#34
BRL-2173F-10-00
GRAPHIC 2
$22.64¢11 319
1
