INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

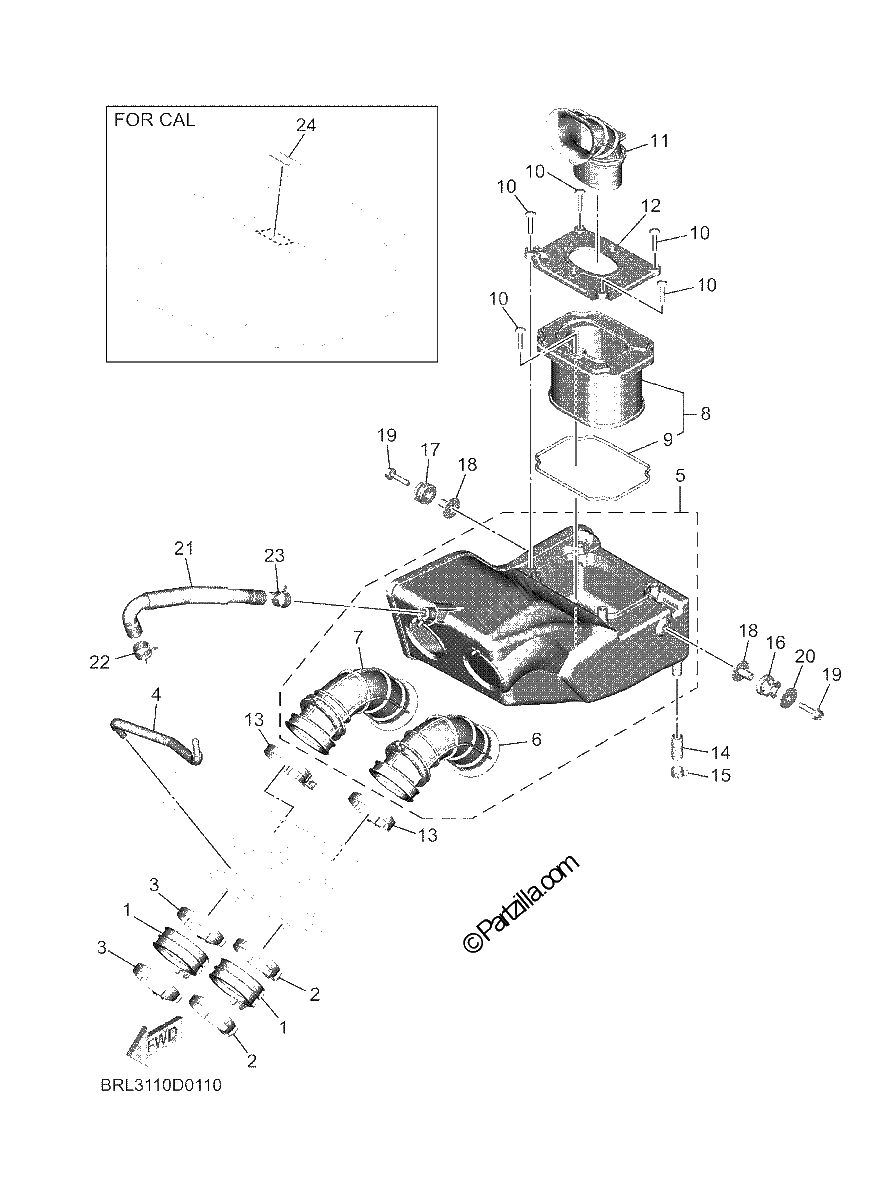

Diagrama de INTAKE

Repuestos

#1
1WS-13635-00-00
JOINT, INTAKE 1
$26.15¢13 075
1
#2
90450-56011-00
HOSE CLAMP ASSY
$12.35¢6 175
1
#3
90450-56012-00
HOSE CLAMP ASSY
$35.69¢17 844
1
#4
BRL-13542-00-00
HOSE, VACUUM SENSING 1
$12.16¢6 081
1
#5
BW3-14401-02-00
AIR CLEANER CASE ASSY
$136.59¢68 294
1
#6
BW3-14469-01-00
. .FUNNEL, AIR (replaces BW3-14469-00-00)
$28.71¢14 356
1
#7
BW3-1446C-01-00
. .FUNNEL 2 (replaces BW3-1446C-00-00)
$28.71¢14 356
1
#8
1WS-14450-00-00
ELEMENT ASSY, AIR
$41.60¢20 800
1
#9
1WS-14452-00-00
SEAL
$8.03¢4 013
1
#10
90160-05013-00
SCREW, ROUND TAPPING
$7.34¢3 669
1
#11
BRL-14437-00-00
DUCT
$44.41¢22 206
1
#12
BRL-14468-00-00
PLATE,ELEMENT FITTING
$5.70¢2 850
1
#13
90450-56011-00
HOSE CLAMP ASSY
$12.35¢6 175
1
#14
1WS-1443E-00-00
PIPE, DRAIN
$4.85¢2 425
1
#15
90467-13133-00
CLIP(3YX) (replaces 90467-13083-00)
$6.27¢3 137
1
#16
90480-15001-00
Grommet
$8.35¢4 175
1
#17
90480-15014-00
Grommet
$4.79¢2 394
1
#18
90387-06300-00
Collar
$7.91¢3 956
1
#19
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#20
90201-064K6-00
WASHER, PLATE
$7.48¢3 738
1
#21
BRL-11166-00-00
PIPE, BREATHER 1
$23.15¢11 575
1
#22
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.94¢3 969
1
#23
90467-160A2-00
CLIP
$5.19¢2 594
1
