REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

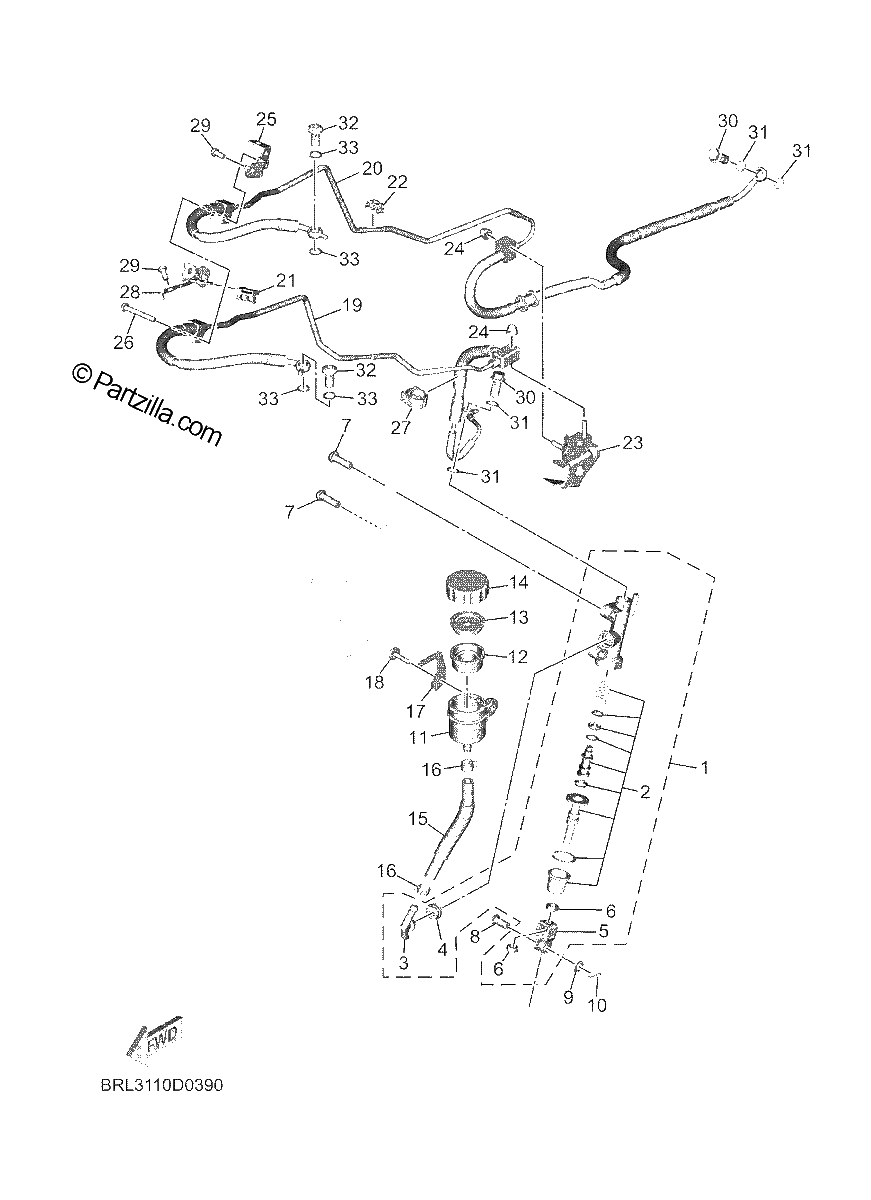

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
4P5-2583V-01-00
RR. MASTER CYLINDER ASSY.
$155.19¢77 594
1
#2
5VX-W0042-51-00
CYLINDER KIT, MASTER
$100.65¢50 325
1
#3
2D1-2582A-01-00
JOINT
$121.80¢60 900
1
#4
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#5
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#6
90170-08010-00
NUT
$7.49¢3 744
1
#7
92014-08025-00
BOLT, BUTTON HEAD
$6.99¢3 494
1
#8
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#9
90201-08070-00
WASHER, plate
$7.67¢3 838
1
#10
91490-20015-00
PIN. COTTER
$2.20¢1 100
1
#11
2D1-25894-00-00
TANK, RESERVOIR
$7.88¢3 938
1
#12
5SL-25854-00-00
DIAPHRAGM, RESERVOIR
$21.74¢10 869
1
#13
5SL-25855-00-00
BUSH, DIAPHRAGM
$8.03¢4 013
1
#14
5SL-25852-00-00
CAP, RESERVOIR
$28.44¢14 219
1
#15
BW3-25895-00-00
HOSE, RESERVOIR
$5.69¢2 844
1
#16
90467-120A3-00
CLIP
$6.99¢3 494
1
#17
BRL-25888-00-00
COVER, RESERVOIR TANK
$5.21¢2 606
1
#18
90159-05011-00
SCREW,WITH WASHER
$2.91¢1 456
1
#19
BRL-2584D-00-00
HOSE, BRAKE
$227.14¢113 569
1
#20
BRL-2584E-00-00
BRAKE HOSE ASSY 5
$244.00¢122 000
1
#21
90464-07014-00
CLAMP
$2.75¢1 375
1
#22
90464-04001-00
CLAMP
$6.42¢3 213
1
#23
BW3-2588F-00-00
HOLDER, BRAKE HOSE 5
$16.85¢8 425
1
#24
90176-06065-00
NUT, CROWN
$8.24¢4 119
1
#25
1XB-2175T-00-00
BRACKET 1
$14.28¢7 138
1
#26
92012-06040-00
BOLT, BUTTON HEAD
$3.96¢1 981
1
#27
90464-18004-00
Clamp
$5.21¢2 606
1
#28
BRL-2175U-00-00
BRACKET 2
$18.31¢9 156
1
#29
90111-06103-00
BOLT,HEX. SOCKET BUT
$6.14¢3 069
1
#30
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#31
90430-10005-00
GASKET
$8.39¢4 194
1
#32
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#33
90430-10005-00
GASKET
$8.39¢4 194
1
