ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

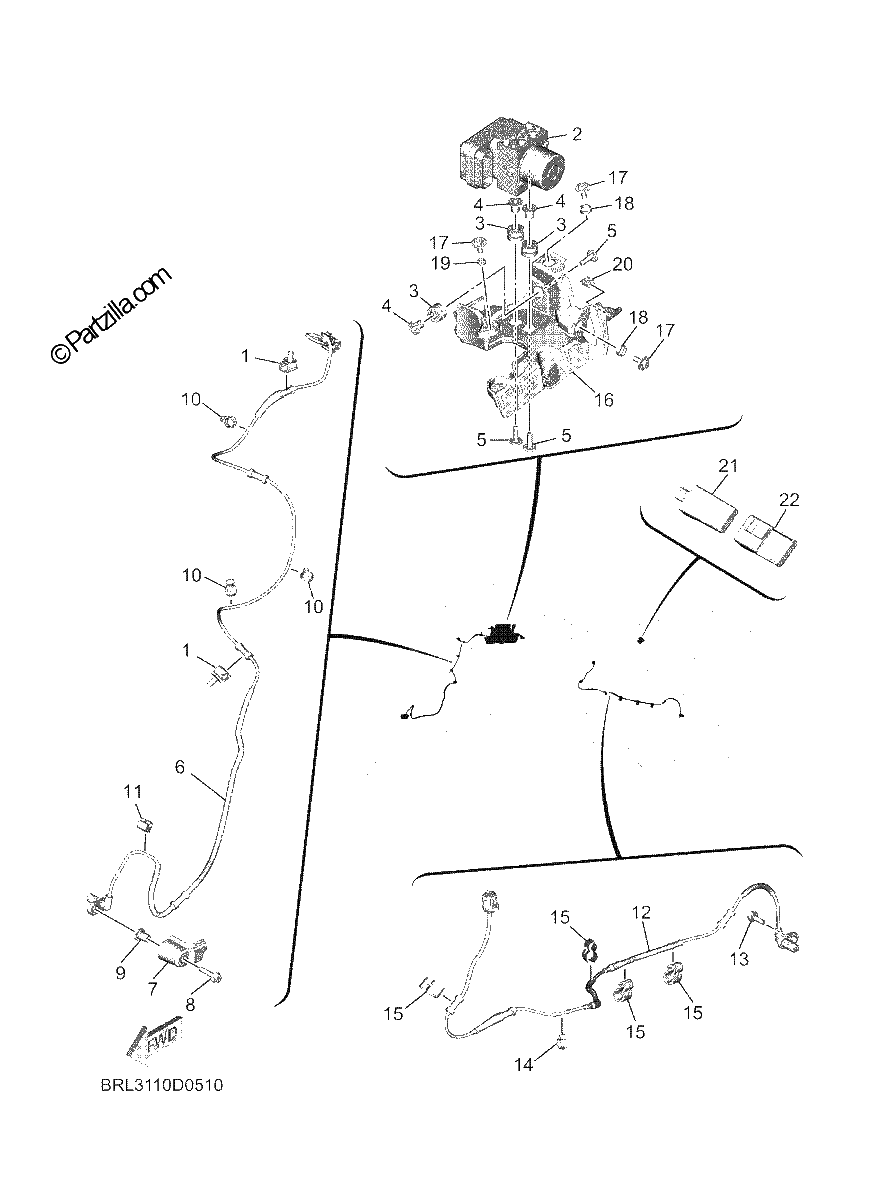

Diagrama de ELECTRICAL 3

Repuestos

#1
90464-08012-00
CLAMP
$3.49¢1 744
1
#2
BRL-85930-09-00
HYDRAULIC UNIT ASSY
$1149.45¢574 725
1
#3
90480-14229-00
GROMMET
$7.34¢3 669
1
#4
90387-06313-00
COLLAR
$3.52¢1 763
1
#5
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$5.15¢2 575
1
#6
BW3-85970-02-00
WHEEL SENSOR ASSY, FRONT
$158.20¢79 100
1
#7
BMB-2517A-00-00
HOUSING, SENSOR FRONT
$8.61¢4 306
1
#8
95814-06030-00
BOLT, FLANGE (replaces 95824-06030-00)
$3.26¢1 631
1
#9
90387-06221-00
COLLAR
$3.77¢1 888
1
#10
90464-12013-00
Clamp
$7.84¢3 919
1
#11
90464-05188-00
CLAMP
$3.65¢1 825
1
#12
BW3-85980-01-00
WHEEL SENSOR ASSY, REAR
$138.06¢69 031
1
#13
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#14
90464-12013-00
Clamp
$7.84¢3 919
1
#15
90464-10233-00
CLAMP
$7.56¢3 781
1
#16
BRL-85991-00-00
BRACKET, UNIT
$59.75¢29 875
1
#17
90119-06209-00
BOLT, WITH WASHER
$6.70¢3 350
1
#18
90387-1001B-00
COLLAR
$3.71¢1 856
1
#19
90387-06106-00
COLLAR
$6.45¢3 225
1
#20
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#21
BPD-H5810-00-00
COMMUNICATION CONT. UNIT ASSY
$305.76¢152 881
1
#22
BRL-82591-00-00
BAND
$11.23¢5 613
1
