CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

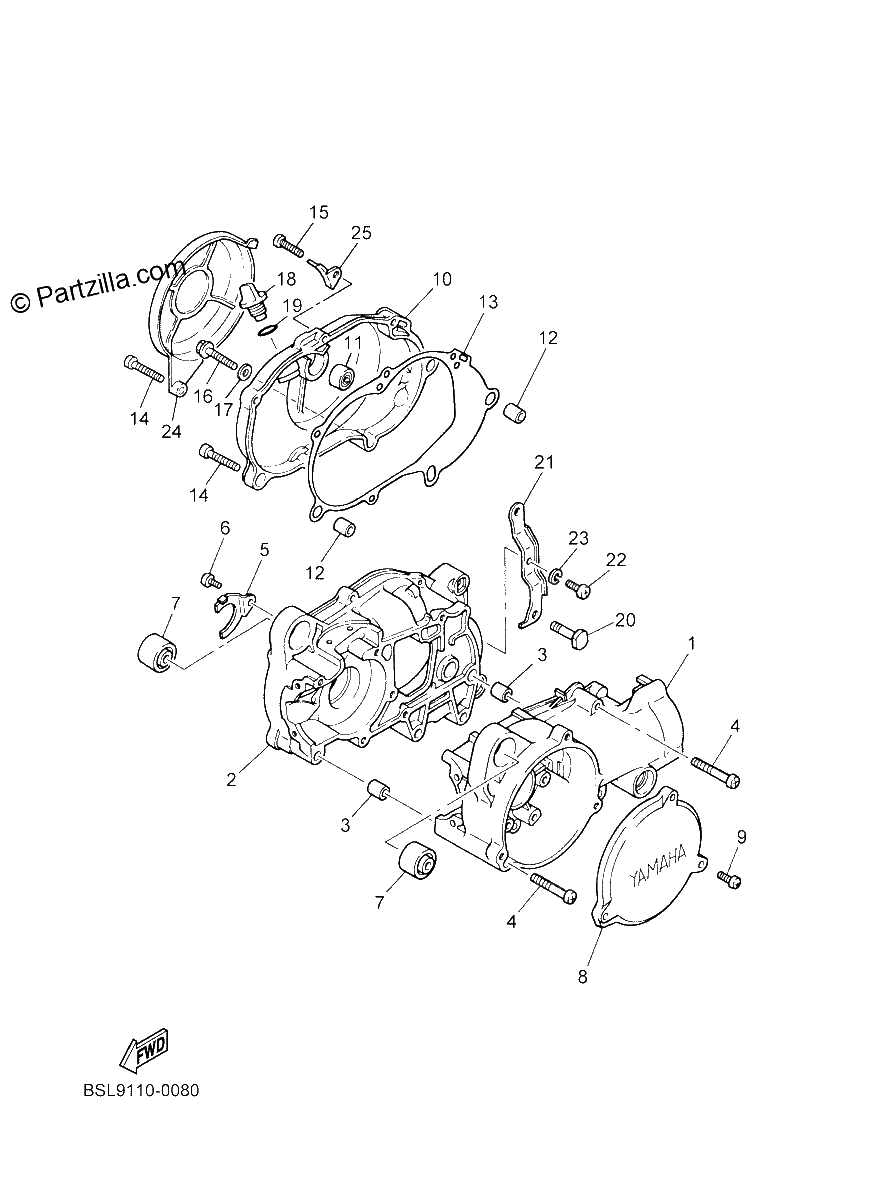

Diagrama de CRANKCASE

Repuestos

#1
4X4-15111-00-00
CRANKCASE 1
$305.99¢152 994
1
#2
4J2-15121-01-00
CRANKCASE 2
$138.30¢69 150
1
#3
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#4
98507-06045-00
SCREW, PAN HEAD
$3.14¢1 569
1
#5
3L5-15128-00-00
HOLDER
$3.94¢1 969
1
#6
98507-06012-00
SCREW,PAN
$3.74¢1 869
1
#7
2E9-15316-00-00
DAMPER 1
$29.71¢14 856
1
#8
4J2-15415-00-00
COVER, 1
$38.96¢19 481
1
#9
98507-05014-00
SCREW, PAN HEAD
$6.26¢3 131
1
#10
4X4-15421-02-00
COVER, CRANKCASE 2
$152.14¢76 069
1
#11
3L5-17112-02-00
BUSH 1
$16.98¢8 488
1
#12
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#13
3L5-15451-12-00
GASKET, CRANKCASE COVER 1
$20.38¢10 188
1
#14
98507-06035-00
SCREW, PAN HEAD
$7.35¢3 675
1
#15
98507-06025-00
SCREW, PAN HEAD
$3.70¢1 850
1
#16
95827-08035-00
BOLT, FLANGE
$7.94¢3 969
1
#17
90430-08119-00
GASKET
$6.91¢3 456
1
#18
4J2-15363-10-00
PLUG, OIL
$4.49¢2 244
1
#19
93210-14104-00
O-RING
$5.93¢2 963
1
#20
90109-08582-00
BOLT
$9.55¢4 775
1
#21
4J2-15113-00-00
PLATE
No Disponible
1
#22
98507-06012-00
SCREW,PAN
$3.74¢1 869
1
#23
92907-06100-00
WASHER, SPRING
$1.23¢613
1
#24
4X4-15491-00-00
PROTECTOR
$29.66¢14 831
1
#25
4X4-15484-00-00
CLAMP 2
$12.20¢6 100
1
