CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

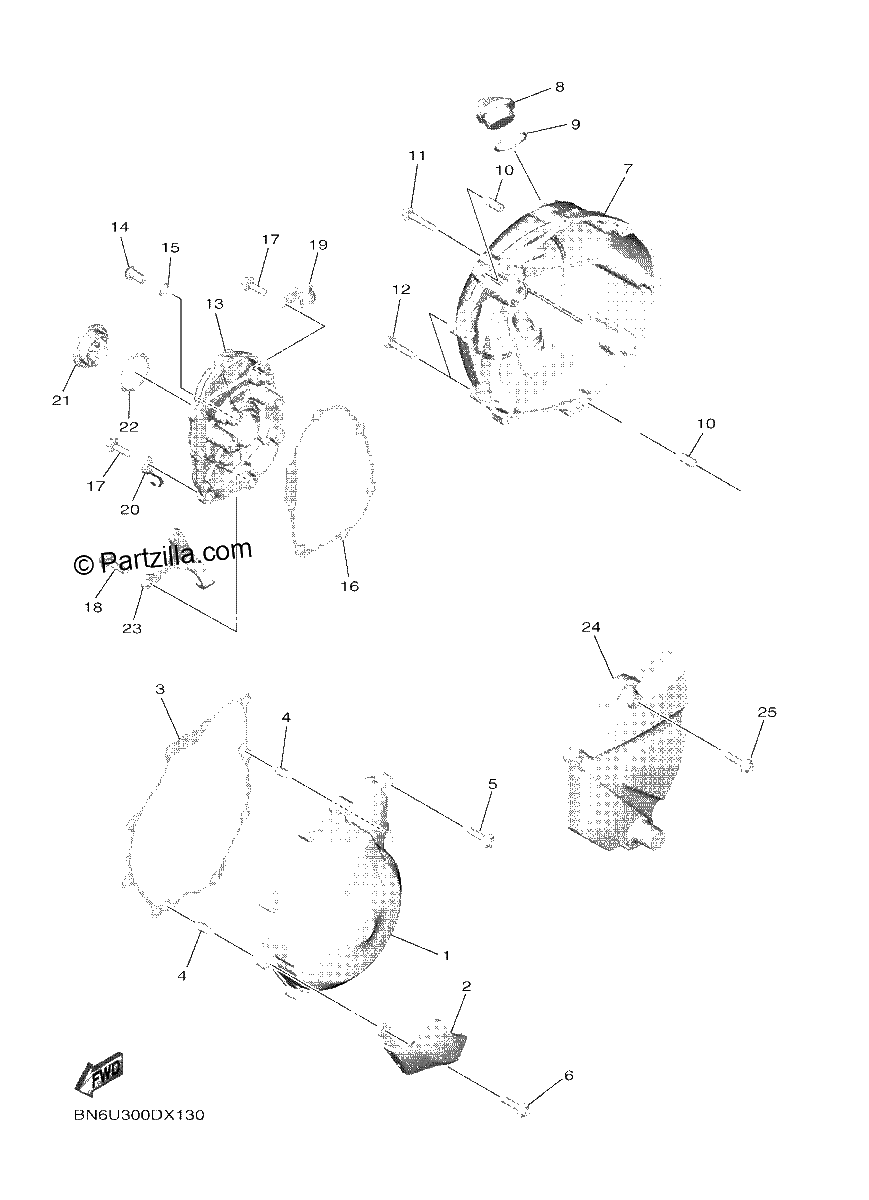

Diagrama de CRANKCASE COVER 1

Repuestos

#1
2C0-15411-01-00
COVER, CRANKCASE 1
$161.01¢80 506
1
#2
BN6-15490-00-00
Cover assy
$133.34¢66 669
1
#3
2C0-15451-01-00
GASKET, CRANKCASE COVER 1
$20.30¢10 150
1
#4
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#5
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
1
#6
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
1
#7
2C0-15421-00-00
COVER, CRANKCASE 2
$340.34¢170 169
1
#8
BAT-15362-00-00
PLUG, OIL LEVEL
$22.93¢11 463
1
#9
93210-27778-00
O-RING
$8.21¢4 106
1
#10
93608-17263-00
PIN, DOWEL
$2.88¢1 438
1
#11
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#12
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#13
2C0-15416-00-00
COVER, OIL PUMP
$169.27¢84 637
1
#14
92014-08014-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#15
90430-08143-00
GASKET
$3.67¢1 838
1
#16
2C0-15456-01-00
GASKET, OIL PUMP COVER 1
$19.21¢9 606
1
#17
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
#18
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
1
#19
90465-08395-00
CLAMP
$15.59¢7 794
1
#20
2C0-21823-00-00
CLAMP, HOSE
$11.21¢5 606
1
#21
90340-32004-00
PLUG, STRAIGHT SCREW
$29.71¢14 856
1
#22
93210-32172-00
O-Ring
$6.88¢3 438
1
#23
2C0-15441-00-00
HOLDER, CLUTCH CABLE
$24.99¢12 494
1
#24
2C0-15418-00-00
COVER, CHAIN CASE
$29.65¢14 825
1
#25
90109-06015-00
BOLT
$4.76¢2 381
1
