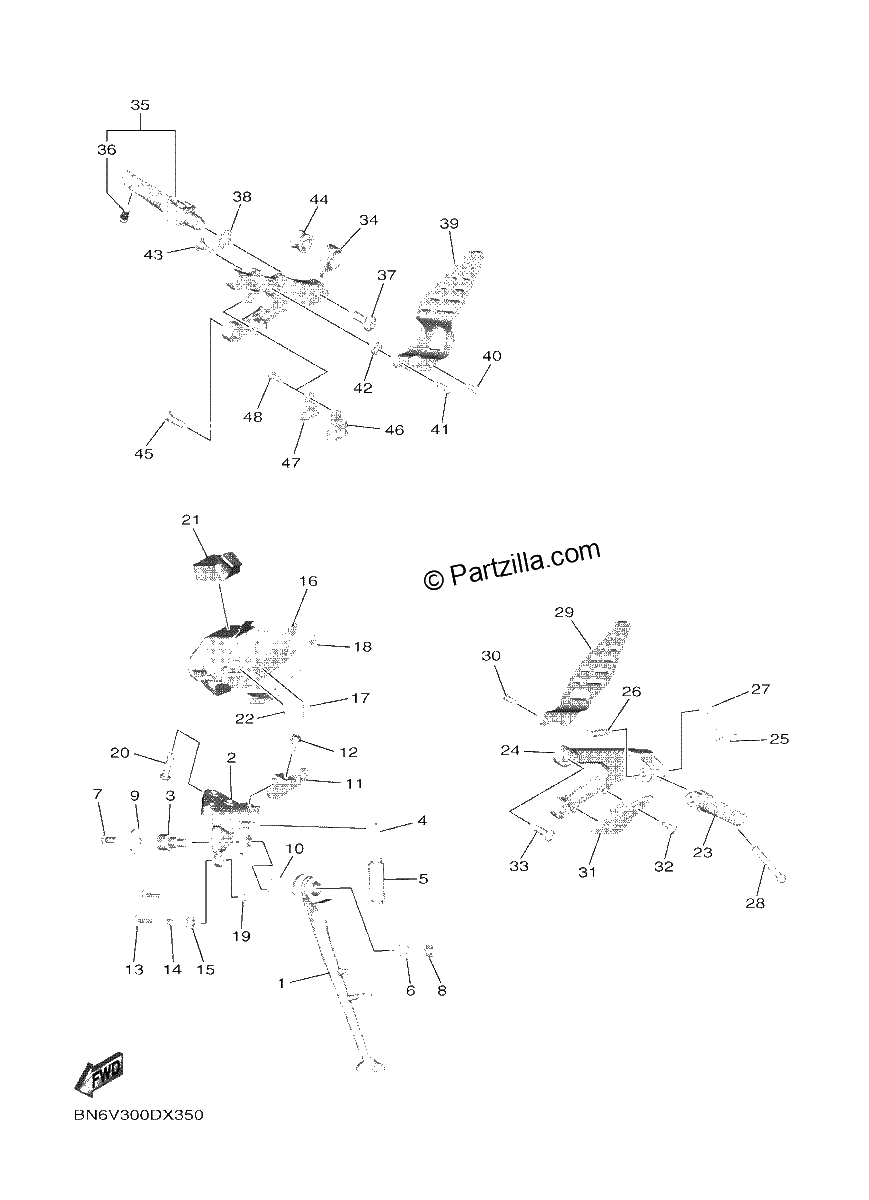

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$360.45¢180 225
#2
BRACKET, SIDE STAND
$316.65¢158 325
#3
GUIDE, SIDE STAND
$66.19¢33 094
#4
SPRING, TENSION
$15.79¢7 894
#5
HOSE (L60)
$6.10¢3 050
#6
WASHER, plate
$4.25¢2 125
#7
BOLT
$7.60¢3 800
#8
NUT, U FLANGE
$2.73¢1 363
#9
WASHER, PLATE
$5.84¢2 919
#10
WASHER, PLATE
$5.95¢2 975
#11
BRACKET 3
$25.63¢12 813
#12
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#13
BRACKET 1
$12.13¢6 063
#14
COLLAR
$6.15¢3 075
#15
GROMMET
$3.50¢1 750
#16
COVER 1
$50.32¢25 162
#17
DAMPER, FOOTREST
$7.86¢3 931
#18
DAMPER, PLATE
$1.54¢769
#19
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
#20
BOLT, BUTTON HEAD
$6.74¢3 369
#21
DAMPER 3
$6.15¢3 075
#22
DAMPER, RUBBER 1
$7.60¢3 800
#23
FOOTREST
$82.26¢41 131
#24
BRACKET 2
$121.27¢60 637
#25
SPRING, TORSION
$7.35¢3 675
#26
PIN
$4.65¢2 325
#27
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#28
BOLT (replaces 90109-08233-00)
$6.32¢3 162
#29
PLATE 1
$66.63¢33 313
#30
BOLT, BUTTON HEAD
$2.44¢1 219
#31
PROTECTOR
$5.06¢2 531
#32
RIVET
$8.80¢4 400
#33
BOLT
$2.26¢1 131
#34
BRACKET 3
$162.64¢81 319
#35
FRONT FOOTREST ASSY
$112.54¢56 269
#36
BOLT
$6.14¢3 069
#37
BOLT,HEX. SOCKET BUT
$8.24¢4 119
#38
WASHER, CLAW
$7.48¢3 738
#39
PLATE 2
$90.59¢45 294
#40
BOLT, BUTTON HEAD
$2.44¢1 219
#41
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$6.47¢3 238
#42
COLLAR
$4.97¢2 488
#43
BOLT
$7.60¢3 800
#44
DAMPER, MUFFLER
$8.35¢4 175
#45
BOLT
$2.26¢1 131
#46
BRACKET 8
$8.77¢4 387
#47
BRACKET 9
$4.60¢2 300
#48
Bolt, Flange
$4.38¢2 188
