COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

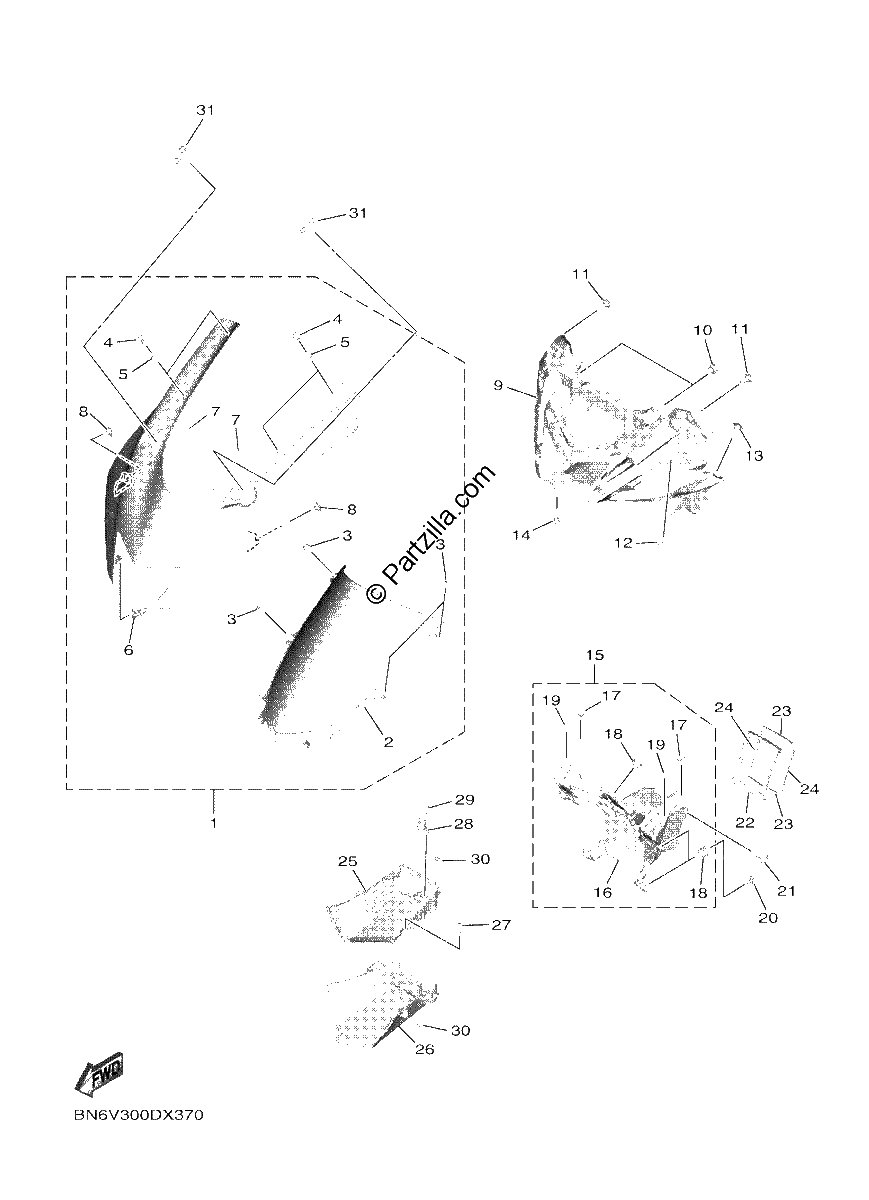

Diagrama de COWLING 1

Repuestos

#1
BN6-Y283G-W0-P1
BODY, FRONT UPPER 1 *{MDNM6}*
$638.27¢319 138
1
#2
BN6-28381-00-00
Windshield
$114.43¢57 213
1
#3
90179-05523-00
NUT
$6.78¢3 388
1
#4
90150-05023-00
SCREW,ROUND HEAD
$3.33¢1 663
1
#5
90202-05088-00
WASHER, PLATE
$7.29¢3 644
1
#6
90464-07018-00
Clamp
$0.72¢363
1
#7
20S-2814H-11-00
HOOK 1
$3.57¢1 787
1
#8
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#9
BN6-2830A-00-00
BODY, COWLING
$139.01¢69 506
1
#10
90480-10003-00
GROMMET
$7.48¢3 738
1
#11
90109-06061-00
bolt
$10.24¢5 119
1
#12
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#13
90109-06061-00
bolt
$10.24¢5 119
1
#14
90269-06008-00
RIVET
$8.80¢4 400
1
#15
BN6-28320-00-00
LEG SHIELD STAY SET
$306.41¢153 206
1
#16
BN6-28356-00-00
STAY 1
$311.63¢155 813
1
#17
20S-2814H-11-00
HOOK 1
$3.57¢1 787
1
#18
4XV-83513-00-00
DAMPER
$7.63¢3 813
1
#19
1HX-27415-00-00
PLATE, DAMPER
$7.86¢3 931
1
#20
90160-05006-00
SCREW, ROUND TAPPING
$7.43¢3 713
1
#21
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
1
#22
2C0-28342-02-00
JOINT
$4.38¢2 188
1
#23
2C0-28217-00-00
DAMPER 1
$1.50¢750
1
#24
2C0-28227-00-00
DAMPER 2
$6.45¢3 225
1
#25
BN6-2838R-01-00
DUCT 2
$31.97¢15 987
1
#26
BN6-2838T-01-00
DUCT 3
$31.97¢15 987
1
#27
97707-40016-00
SCREW, TAPPING
$7.35¢3 675
1
#28
8FP-85886-00-00
SENSOR, AIR TEMPERATURE
$61.02¢30 513
1
#29
97780-50116-00
SCREW, TAPPING
$1.75¢875
1
#30
51Y-21639-00-00
DAMPER 2
$6.45¢3 225
1
#31
4C8-26298-00-00
PLATE, MIRROR FITTING 1
$7.65¢3 825
1
