SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

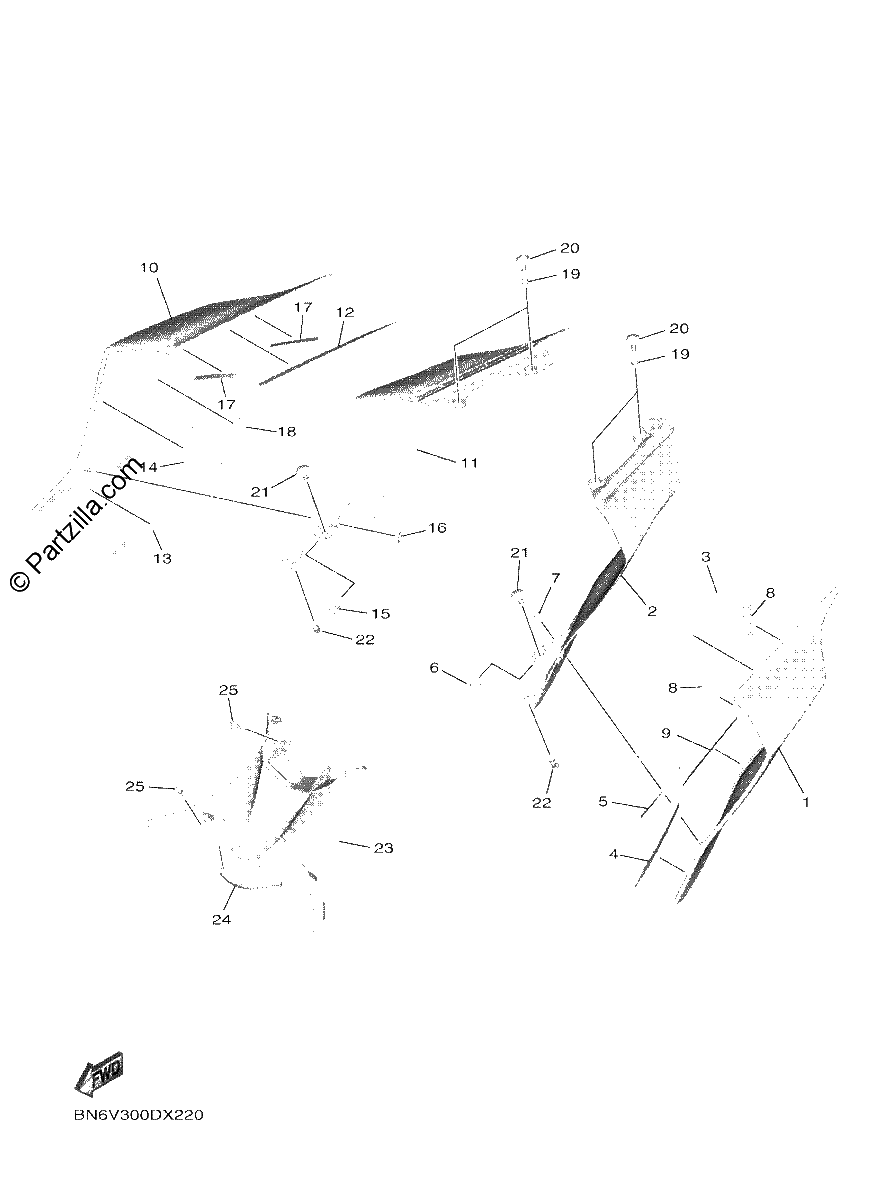

Diagrama de SIDE COVER

Repuestos

#1
BN6-21711-00-P1
COVER, SIDE 1 *{MDNM6}*
$73.58¢36 788
1
#2
BN6-21731-00-00
COVER, SIDE 3
$27.68¢13 838
1
#3
BN6-2173T-00-00
TAPE 1
$8.34¢4 169
1
#4
BN6-21566-00-00
TAPE, 1
$6.03¢3 013
1
#5
1RC-2111D-00-00
SEAL 1
$3.56¢1 781
1
#6
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#7
90209-03274-00
WASHER
$9.98¢4 988
1
#8
BN6-21669-00-00
SEAL
$5.19¢2 594
1
#9
BN6-2111D-00-00
SEAL 1
$3.90¢1 950
1
#10
BN6-21721-00-P1
COVER, SIDE 2 *{MDNM6}*
$73.58¢36 788
1
#11
BN6-21741-00-00
COVER, SIDE 4
$23.57¢11 788
1
#12
BN6-2173U-00-00
TAPE 2
$7.40¢3 700
1
#13
BN6-21567-00-00
TAPE, 2
$6.03¢3 013
1
#14
1RC-2111D-00-00
SEAL 1
$3.56¢1 781
1
#15
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#16
90209-03274-00
WASHER
$9.98¢4 988
1
#17
BN6-21669-00-00
SEAL
$5.19¢2 594
1
#18
BN6-2111D-00-00
SEAL 1
$3.90¢1 950
1
#19
90387-06069-00
COLLAR
$7.91¢3 956
1
#20
90111-06086-00
BOLT, HEX. SOCKET BUTTON
$5.91¢2 956
1
#21
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#22
90269-06018-00
RIVET
$2.23¢1 113
1
#23
BN6-2171E-00-00
COVER, SIDE 5
$66.19¢33 094
1
#24
4C8-21747-00-00
DAMPER
$7.08¢3 538
1
#25
90269-05008-00
RIVET
$3.02¢1 513
1
