COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

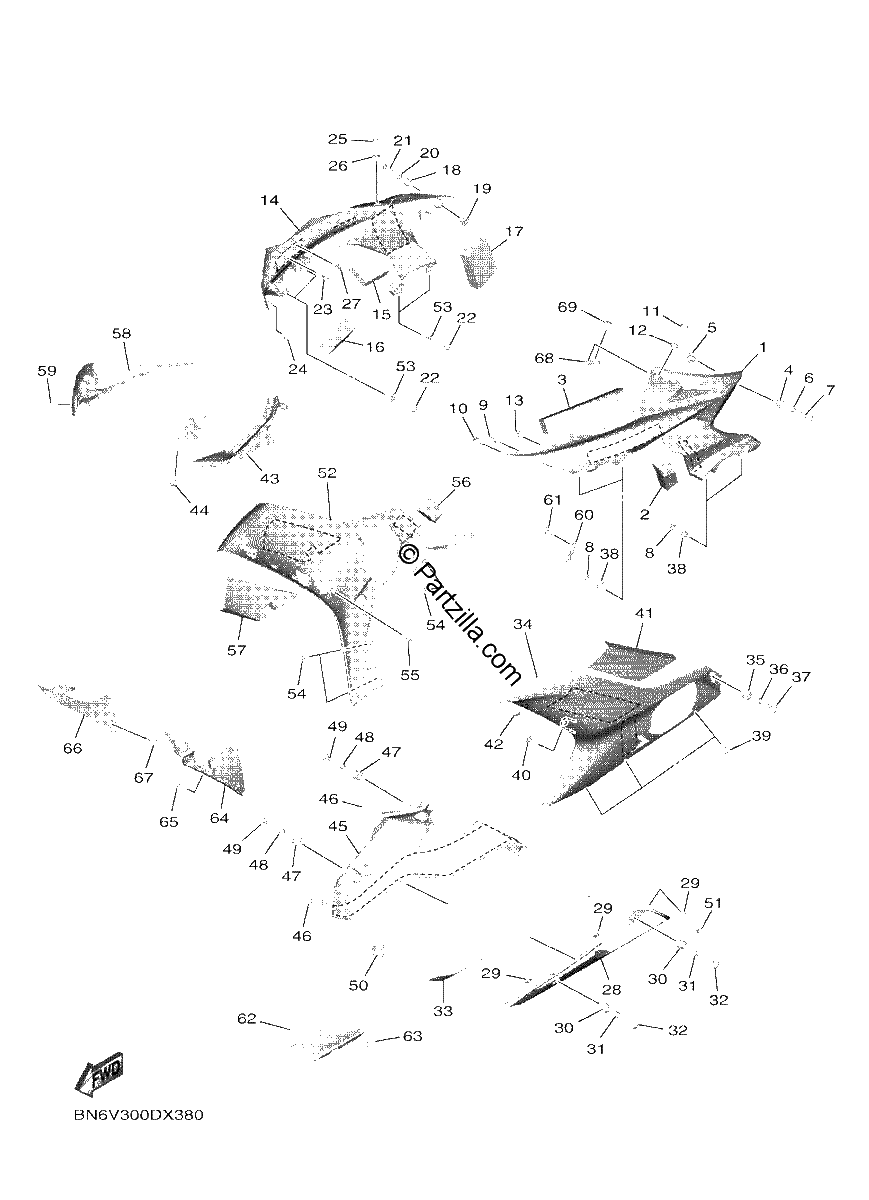

Diagrama de COWLING 2

Repuestos

#1
BN6-2117V-00-P1
COVER 7
$388.90¢194 448
1
#2
90520-30002-00
DAMPER, PLATE
$1.77¢886
1
#3
7CH-22889-00-00
SEAL 12
$2.68¢1 340
1
#4
90480-12613-00
Grommet
$22.05¢11 023
1
#5
90387-067K8-00
COLLAR
$5.69¢2 846
1
#6
90201-07081-00
WASHER, PLATE
$7.77¢3 887
1
#7
90111-06063-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#8
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#9
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#10
90464-07018-00
Clamp
$0.67¢333
1
#11
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#12
90201-060H9-00
WASHER, PLATE
$3.73¢1 863
1
#13
90468-04001-00
Clip
$0.99¢494
1
#14
BN6-2117W-00-P1
COVER 8
$324.53¢162 265
1
#15
90520-60001-00
DAMPER, PLATE
$1.77¢886
1
#16
90520-30008-00
DAMPER, PLATE
$1.68¢839
1
#17
7CH-2289T-00-00
SEAL 26
$2.68¢1 340
1
#18
90480-12613-00
Grommet
$22.05¢11 023
1
#19
90387-067K8-00
COLLAR
$5.69¢2 846
1
#20
90201-07081-00
WASHER, PLATE
$7.77¢3 887
1
#21
90111-06063-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#22
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#23
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#24
90464-07018-00
Clamp
$0.67¢333
1
#25
90149-06298-00
SCREW,SPEC'L SHAPE
$4.67¢2 335
1
#26
90201-060H9-00
WASHER, PLATE
$3.73¢1 863
1
#27
90468-04001-00
Clip
$0.99¢494
1
#28
BN6-28385-00-P1
COVER, UNDER
$155.31¢77 654
1
#29
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#30
90480-14003-00
GROMMET
$6.83¢3 415
1
#31
90387-06260-00
COLLAR
$6.83¢3 415
1
#32
90111-06040-00
bolt
$3.68¢1 840
1
#33
BN6-2838G-00-00
SEAT 1
$32.37¢16 186
1
#34
BN6-2835U-00-P1
PANEL 1 *{MDNM6}*
$164.08¢82 041
1
#35
90480-14003-00
GROMMET
$6.83¢3 415
1
#36
90387-06260-00
COLLAR
$6.83¢3 415
1
#37
90111-06040-00
bolt
$3.68¢1 840
1
#38
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#39
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#40
90269-06001-00
RIVET
$5.93¢2 967
1
#41
BN6-28416-00-00
DAMPER 2
$6.55¢3 278
1
#42
5YT-24665-00-00
DAMPER
$6.99¢3 496
1
#43
BN6-28219-00-00
COVER 1
$32.18¢16 089
1
#44
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#45
BN6-28395-00-P1
COVER, UNDER 2
$138.54¢69 270
1
#46
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#47
90480-14003-00
GROMMET
$6.83¢3 415
1
#48
90387-06260-00
COLLAR
$6.83¢3 415
1
#49
90111-06040-00
bolt
$3.68¢1 840
1
#50
BN6-2848K-00-00
SEAT 2
$28.04¢14 018
1
#51
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#52
BN6-2835V-00-P1
PANEL 2 *{MDNM6}*
$209.61¢104 805
1
#53
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#54
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#55
90269-06001-00
RIVET
$5.93¢2 967
1
#56
90520-30007-00
DAMPER, PLATE
$1.23¢615
1
#57
BN6-28435-00-00
DAMPER 4
$7.04¢3 519
1
#58
BN6-28229-00-00
COVER 2
$32.18¢16 089
1
#59
90111-05045-00
BOLT,HEX. SOCKET BUT
$6.88¢3 439
1
#60
BN6-2836G-00-00
BRACKET 4
$5.13¢2 565
1
#61
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#62
BN6-2836K-00-00
PANEL, INNER 1
$86.12¢43 062
1
#63
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#64
BN6-2836L-00-00
PANEL, INNER 2
$55.67¢27 836
1
#65
90269-06008-00
RIVET
$8.10¢4 048
1
#66
BN6-2836M-00-00
PANEL, INNER 3
$65.25¢32 625
1
#67
90269-06008-00
RIVET
$8.10¢4 048
1
#68
BN6-28357-00-00
STAY 2
$7.91¢3 956
1
#69
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
