CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

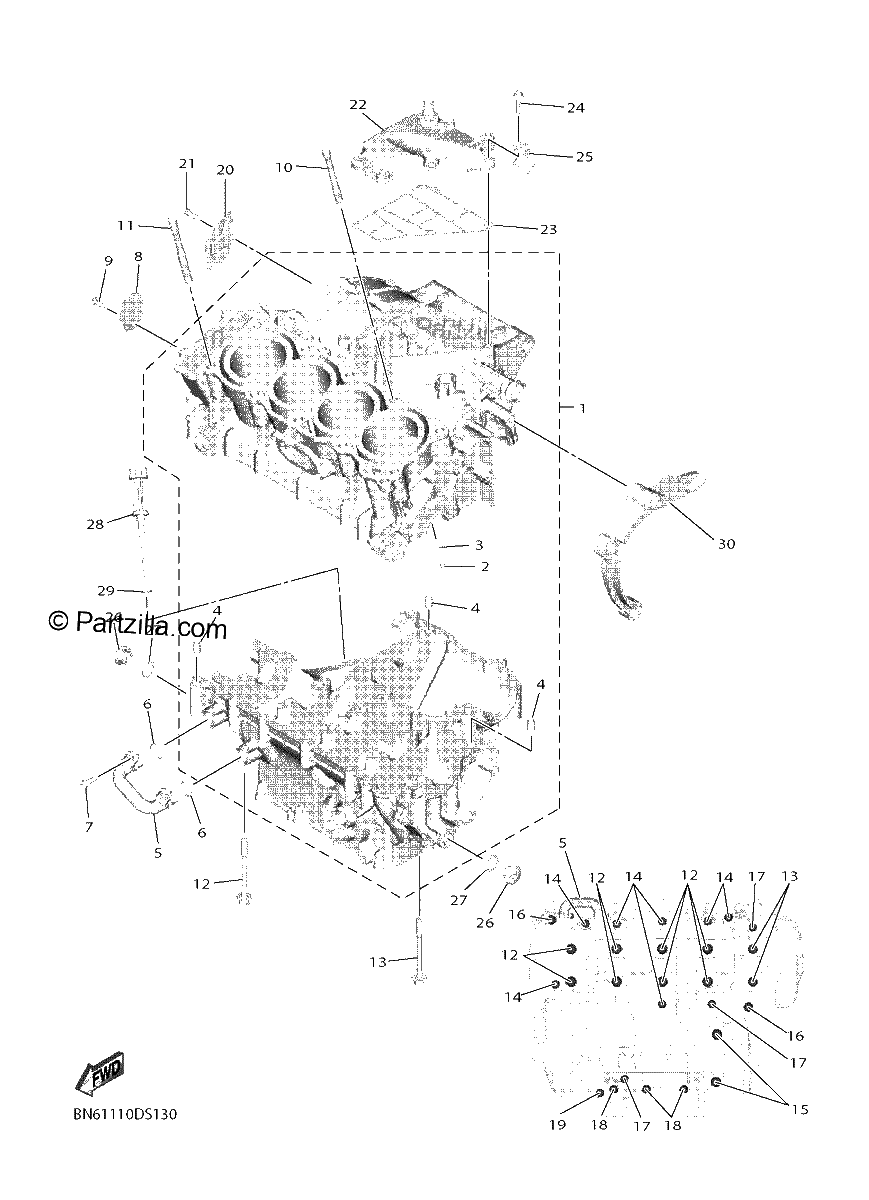

Diagrama de CRANKCASE

Repuestos

#1
BN6-15100-09-00
Crankcase Assy
$4015.38¢2 007 688
1
#2
5EB-15155-00-00
NOZZLE 3
$14.65¢7 325
1
#3
93210-04092-00
O-RING
$3.44¢1 719
1
#4
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#5
13S-13418-00-00
PIPE, OIL 2
$53.60¢26 800
1
#6
93210-14579-00
O-RING
$5.93¢2 963
1
#7
91317-06016-00
BOLT
$1.46¢731
1
#8
13S-15189-00-00
PLUG
$7.86¢3 931
1
#9
90149-06081-00
SCREW
$7.34¢3 669
1
#10
90116-10025-00
BOLT, STUD
$12.75¢6 375
1
#11
90116-10026-00
BOLT, STUD
$15.09¢7 544
1
#12
90119-08083-00
BOLT, WITH WASHER
$8.03¢4 013
1
#13
90119-08084-00
BOLT, WITH WASHER
$14.60¢7 300
1
#14
95812-06055-00
BOLT, FLANGE
$1.75¢875
1
#15
95814-08065-00
BOLT,FLANGE (replaces 95812-08065-00)
$4.20¢2 100
1
#16
90109-06100-00
BOLT
$9.06¢4 531
1
#17
95812-06065-00
BOLT, FLANGE
$6.14¢3 069
1
#18
95817-06045-00
BOLT, FLANGE
$7.35¢3 675
1
#19
95812-06030-00
BOLT, FLANGE
$1.98¢988
1
#20
2C0-11165-00-00
PLATE, BREATHER
$7.08¢3 538
1
#21
90149-06081-00
SCREW
$7.34¢3 669
1
#22
2C0-15413-02-00
COVER
$209.44¢104 719
1
#23
2C0-15462-01-00
GASKET, CRANKCASE COVER 3
$10.77¢5 387
1
#24
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
1
#25
2C0-24136-00-00
CLAMP 2 | FOR CALIFORNIA
$7.14¢3 569
1
#26
36Y-15189-01-00
PLUG
$14.34¢7 169
1
#27
93210-16325-00
O-RING
$6.99¢3 494
1
#28
2C0-15362-00-00
PLUG, OIL LEVEL
$19.77¢9 888
1
#29
93210-09350-00
O-RING (replaces 93210-09165-00)
$6.91¢3 456
1
#30
BN6-15377-00-00
GUIDE, INLET
$61.86¢30 931
1
