FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

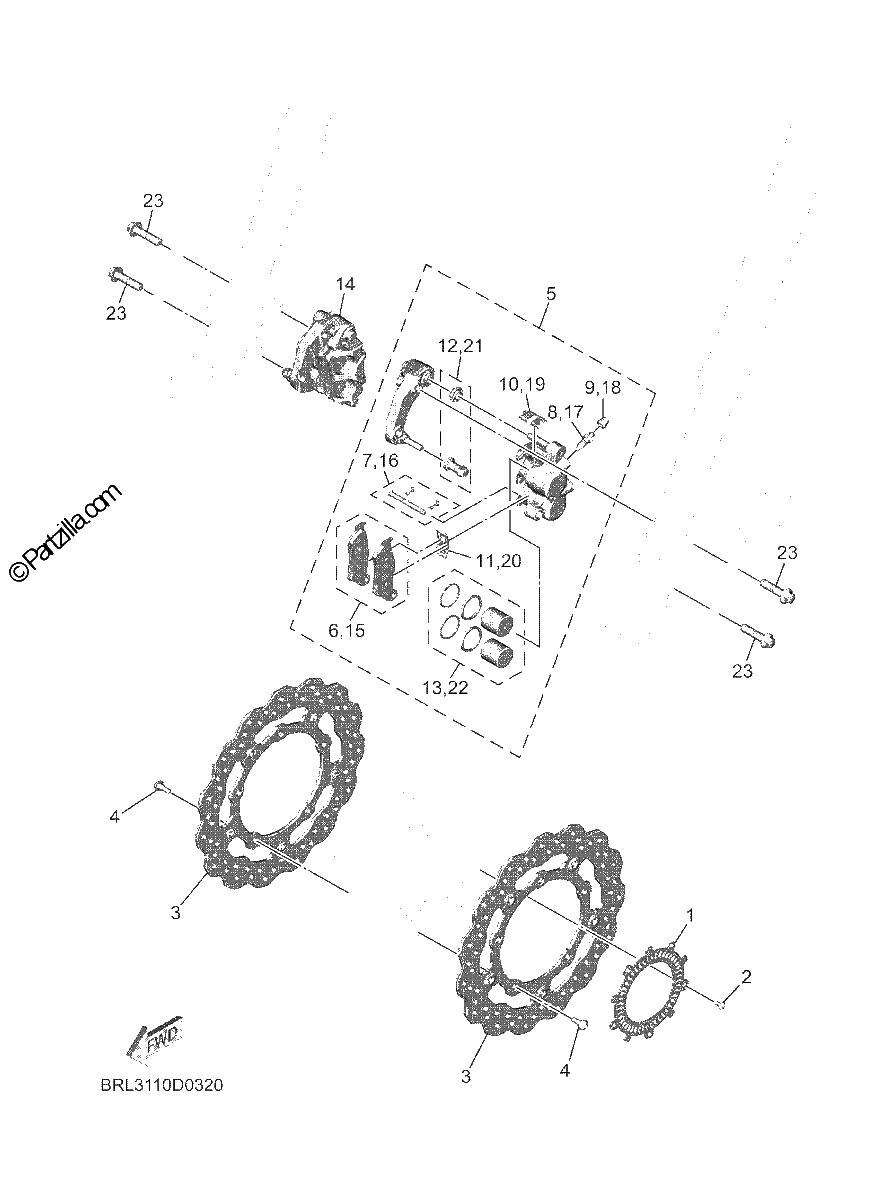

Diagrama de FRONT BRAKE CALIPER

Repuestos

#1
BW3-F517G-00-00
ROTOR, SENSOR
$18.97¢9 487
1
#2
90149-05030-00
SCREW
$2.33¢1 167
1
#3
1WS-2581T-01-00
DISK BRAKE ASSY (replaces 1WS-2581T-00-00)
$124.92¢62 462
1
#4
90109-06329-00
BOLT
$1.61¢805
1
#5
BNW-F580T-10-00
CALIPER ASSY (LEFT)
$327.74¢163 869
1
#6
BW3-F5805-00-00
. .BRAKE PAD KIT
$77.04¢38 519
1
#7
BNW-F5924-00-00
PIN, PAD
$39.20¢19 602
1
#8
56P-F5824-00-00
. .SCREW, BLEED
$73.30¢36 651
1
#9
4CU-F5825-00-00
CAP
$2.23¢1 116
1
#10
BNW-F5919-00-00
SUPPORT, PAD
$20.94¢10 471
1
#11
BNW-F5919-10-00
SUPPORT, PAD
$20.94¢10 471
1
#12
BNW-F5917-00-00
BOOT, CALIPER
$44.68¢22 339
1
#13
BW3-F5802-00-00
. PISTON ASSY, CALIPER
$175.85¢87 923
1
#14
BNW-F580U-10-00
CALIPER ASSY (RIGHT)
$327.74¢163 869
1
#15
BW3-F5805-00-00
. .BRAKE PAD KIT
$77.04¢38 519
1
#16
5D7-F5924-10-00
. .PIN, PAD
$16.57¢8 286
1
#17
56P-F5824-00-00
. .SCREW, BLEED
$73.30¢36 651
1
#18
4CU-F5825-00-00
CAP
$2.23¢1 116
1
#19
BNW-F5919-00-00
SUPPORT, PAD
$20.94¢10 471
1
#20
BNW-F5919-10-00
SUPPORT, PAD
$20.94¢10 471
1
#21
5DS-F5917-00-00
. .BOOT, CALIPER
$44.68¢22 339
1
#22
BW3-F5802-00-00
. PISTON ASSY, CALIPER
$175.85¢87 923
1
#23
90105-10778-00
BOLT, FLANGE
$4.48¢2 242
1
