REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

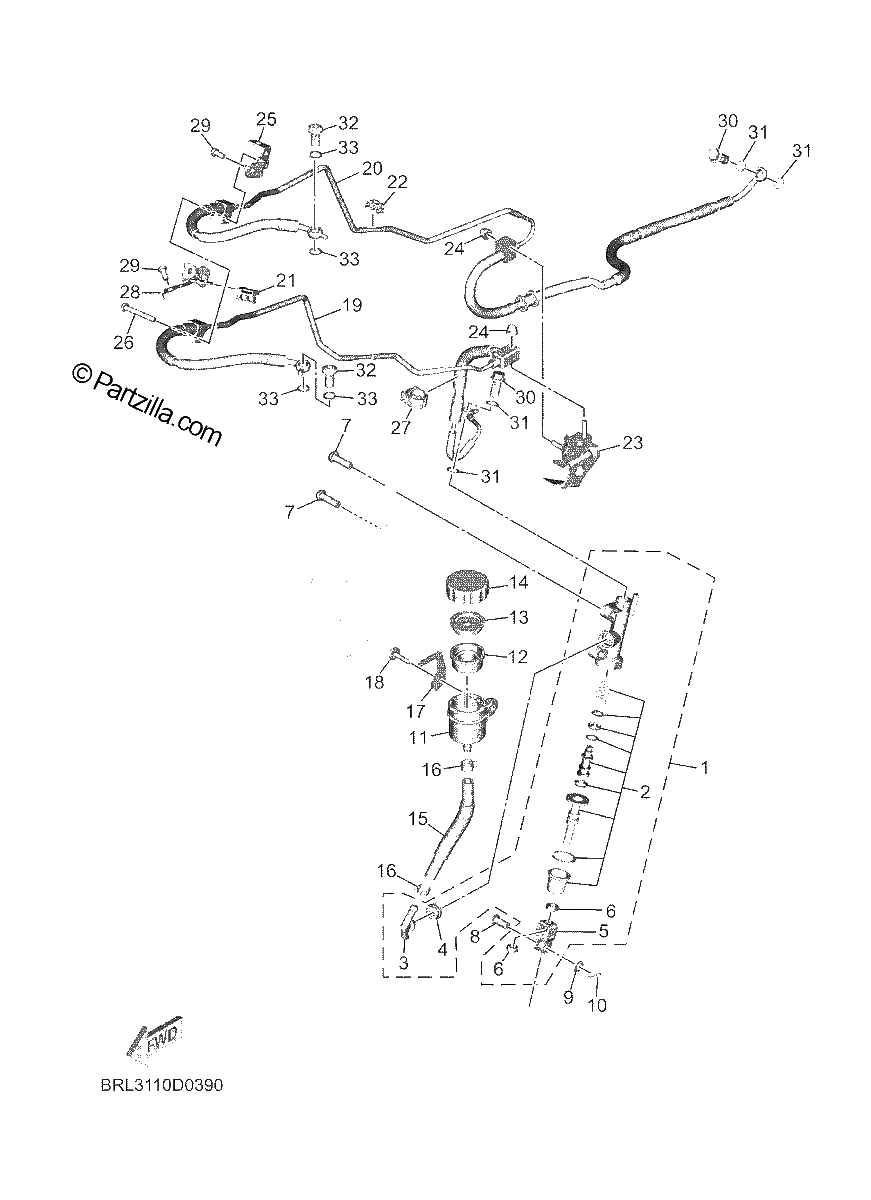

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
4P5-2583V-01-00
RR. MASTER CYLINDER ASSY.
$142.77¢71 386
1
#2
5VX-W0042-51-00
CYLINDER KIT, MASTER
$92.60¢46 299
1
#3
2D1-2582A-01-00
JOINT
$112.06¢56 028
1
#4
4BP-2585F-01-00
O-RING
$10.48¢5 238
1
#5
4BP-27222-02-00
JOINT
$29.55¢14 777
1
#6
90170-08010-00
NUT
$6.89¢3 444
1
#7
92014-08025-00
BOLT, BUTTON HEAD
$6.43¢3 214
1
#8
90240-08005-00
PIN, CLEVIS
$6.75¢3 375
1
#9
90201-08070-00
WASHER, plate
$7.06¢3 530
1
#10
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#11
2D1-25894-00-00
TANK, RESERVOIR
$7.24¢3 622
1
#12
5SL-25854-00-00
DIAPHRAGM, RESERVOIR
$20.00¢9 999
1
#13
5SL-25855-00-00
BUSH, DIAPHRAGM
$7.38¢3 691
1
#14
5SL-25852-00-00
CAP, RESERVOIR
$26.16¢13 081
1
#15
BW3-25895-00-00
HOSE, RESERVOIR
$5.23¢2 616
1
#16
90467-120A3-00
CLIP
$6.43¢3 214
1
#17
BRL-25888-00-00
COVER, RESERVOIR TANK
$4.80¢2 398
1
#18
90159-05011-00
SCREW,WITH WASHER
$2.68¢1 340
1
#19
BRL-2584D-00-00
HOSE, BRAKE
$208.97¢104 483
1
#20
BRL-2584E-00-00
BRAKE HOSE ASSY 5
$224.48¢112 240
1
#21
90464-07014-00
CLAMP
$2.53¢1 265
1
#22
90464-04001-00
CLAMP
$5.91¢2 956
1
#23
BW3-2588F-00-00
HOLDER, BRAKE HOSE 5
$15.50¢7 751
1
#24
90176-06065-00
NUT, CROWN
$7.58¢3 789
1
#25
1XB-2175T-00-00
BRACKET 1
$13.13¢6 567
1
#26
92012-06040-00
BOLT, BUTTON HEAD
$3.65¢1 823
1
#27
90464-18004-00
Clamp
$4.80¢2 398
1
#28
BRL-2175U-00-00
BRACKET 2
$16.85¢8 424
1
#29
90111-06103-00
BOLT,HEX. SOCKET BUT
$5.65¢2 823
1
#30
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#31
90430-10005-00
GASKET
$7.72¢3 858
1
#32
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#33
90430-10005-00
GASKET
$7.72¢3 858
1
