ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

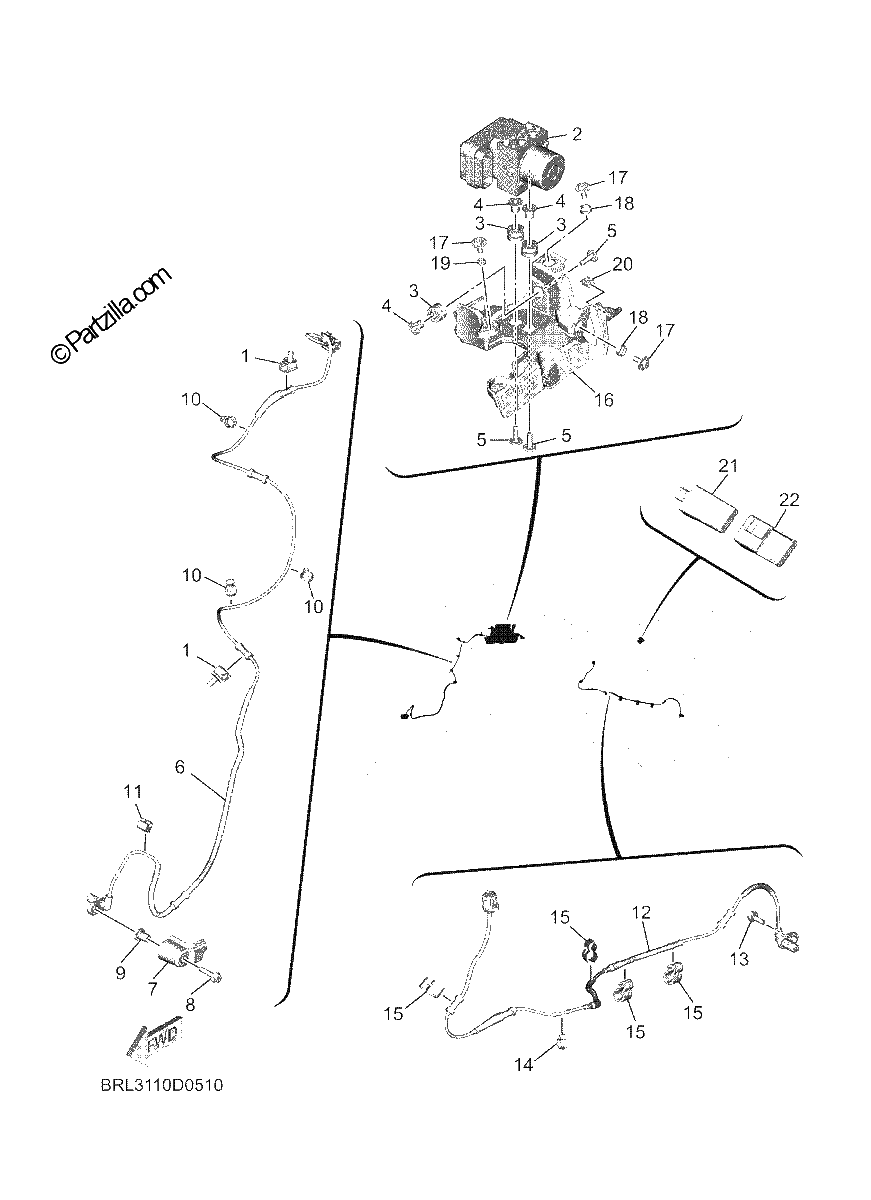

Diagrama de ELECTRICAL 3

Repuestos

#1
90464-08012-00
CLAMP
$3.21¢1 604
1
#2
BRL-85930-09-00
HYDRAULIC UNIT ASSY
$1057.49¢528 747
1
#3
90480-14229-00
GROMMET
$6.75¢3 375
1
#4
90387-06313-00
COLLAR
$3.24¢1 621
1
#5
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$4.74¢2 369
1
#6
BW3-85970-02-00
WHEEL SENSOR ASSY, FRONT
$145.54¢72 772
1
#7
BMB-2517A-00-00
HOUSING, SENSOR FRONT
$7.92¢3 962
1
#8
95814-06030-00
BOLT, FLANGE (replaces 95824-06030-00)
$3.00¢1 501
1
#9
90387-06221-00
COLLAR
$3.47¢1 737
1
#10
90464-12013-00
Clamp
$7.21¢3 605
1
#11
90464-05188-00
CLAMP
$3.36¢1 679
1
#12
BW3-85980-01-00
WHEEL SENSOR ASSY, REAR
$127.02¢63 509
1
#13
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#14
90464-12013-00
Clamp
$7.21¢3 605
1
#15
90464-10233-00
CLAMP
$6.96¢3 479
1
#16
BRL-85991-00-00
BRACKET, UNIT
$54.97¢27 485
1
#17
90119-06209-00
BOLT, WITH WASHER
$6.16¢3 082
1
#18
90387-1001B-00
COLLAR
$3.42¢1 708
1
#19
90387-06106-00
COLLAR
$5.93¢2 967
1
#20
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#21
BPD-H5810-00-00
COMMUNICATION CONT. UNIT ASSY
$281.30¢140 651
1
#22
BRL-82591-00-00
BAND
$10.33¢5 164
1
