FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

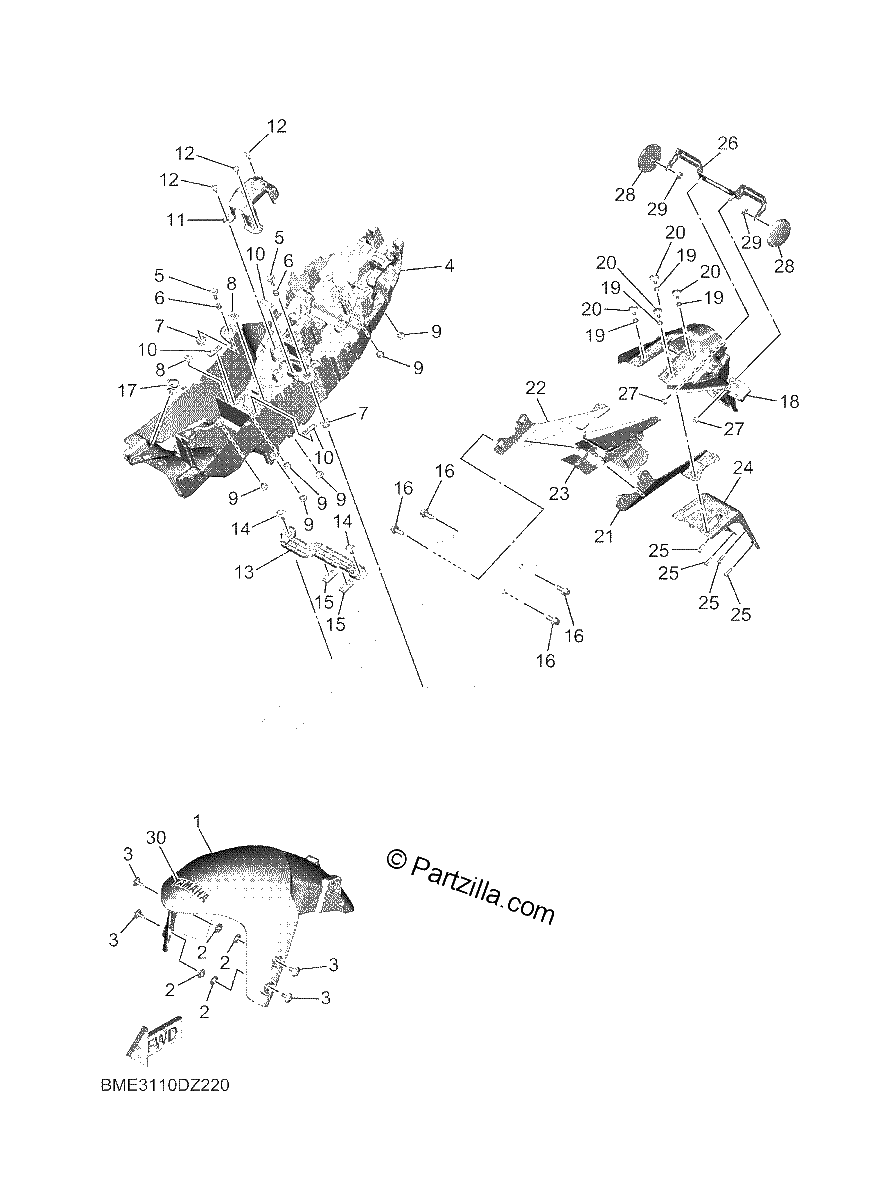

Diagrama de FENDER

Repuestos

#1
B7N-21511-00-P5
FENDER, FRONT (MAT BLUE METALLIC 3) (DEEP PURPLISH BLUE METALLIC C) *{UR MBM3 FOR DPBMC}*
$129.57¢64 785
1
#2
90387-07717-00
COLLAR
$6.75¢3 375
1
#3
90111-06191-00
BOLT,HEX. SOCKET BUTTON
$0.99¢494
1
#4
BME-8212B-00-00
BOX, BATTERY 1
$61.72¢30 860
1
#5
90119-06313-00
BOLT, WITH WASHER
$1.08¢541
1
#6
90387-060A7-00
COLLAR
$11.52¢5 761
1
#7
90480-14035-00
GROMMET
$1.49¢747
1
#8
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#9
90338-10132-00
PLUG
$2.89¢1 443
1
#10
B7N-21649-00-00
DAMPER
$2.27¢1 133
1
#11
BME-2116H-00-00
COVER 9
$9.41¢4 703
1
#12
90269-06008-00
RIVET
$8.10¢4 048
1
#13
BME-2116B-00-00
BRKT.
$11.76¢5 882
1
#14
90109-063F1-00
BOLT
$2.52¢1 259
1
#15
90520-04015-00
DAMPER, PLATE
$2.02¢1 012
1
#16
90105-08171-00
BOLT, FLANGE
$1.85¢926
1
#17
90464-14013-00
CLAMP
$3.22¢1 610
1
#18
B7N-21629-00-00
GUARD, MUD
$20.18¢10 091
1
#19
90387-06372-00
COLLAR
$5.93¢2 967
1
#20
90111-06190-00
BOLT,HEX. SOCKET BUTTON
$1.66¢828
1
#21
BME-2164F-00-00
STAY 1
$57.56¢28 779
1
#22
BME-2164G-00-00
STAY 2
$56.69¢28 347
1
#23
BME-2163E-00-00
COVER, REAR FENDER 2
$18.31¢9 154
1
#24
B7N-21682-00-00
STAY, PLATE
$40.19¢20 096
1
#25
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#26
1RC-84751-00-00
BRACKET, LICENSE
$32.10¢16 048
1
#27
95607-06100-00
NUT, U
$2.63¢1 317
1
#28
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#29
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#30
1RC-2153E-30-00
EMBLEM, YAMAHA | UR FOR DPBMC
$6.51¢3 254
1
