ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

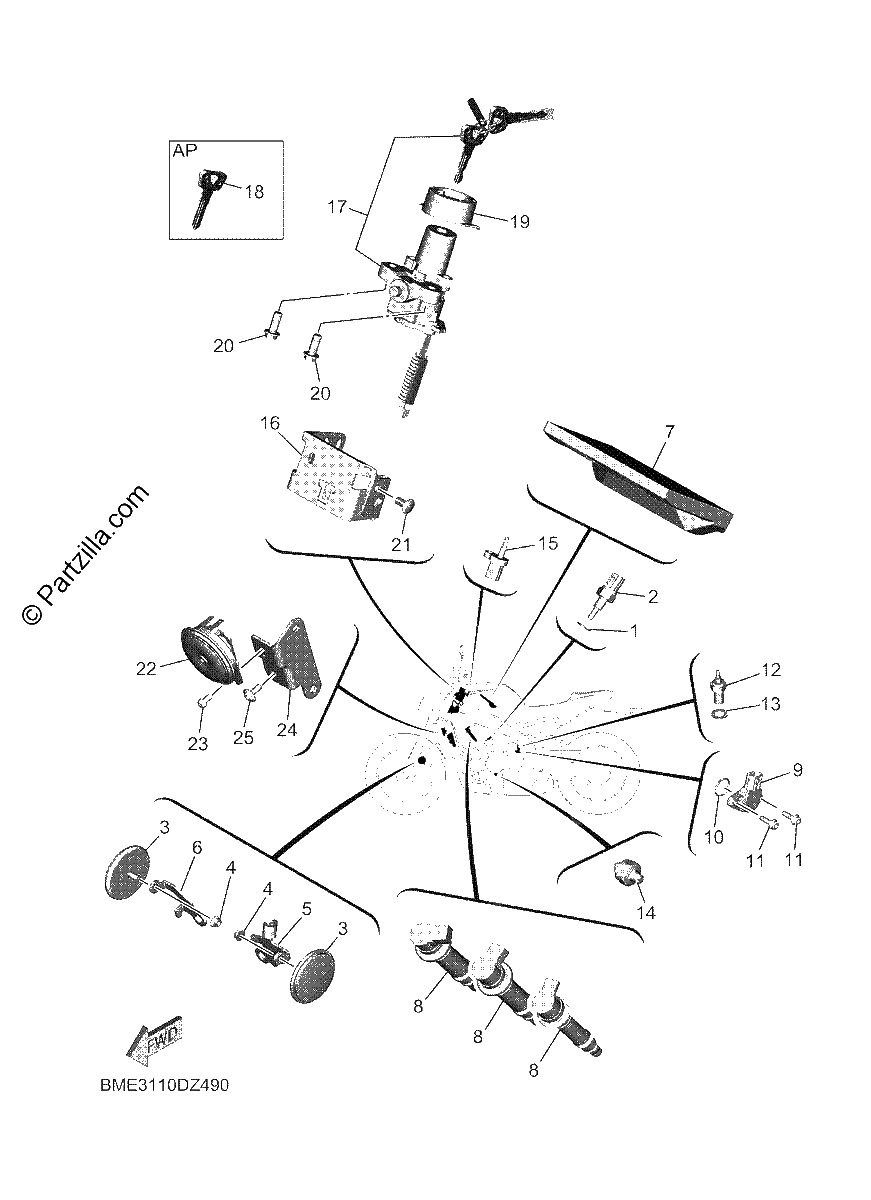

Diagrama de ELECTRICAL 2

Repuestos

#1
90430-10004-00
GASKET
$6.51¢3 254
1
#2
4P9-83591-00-00
THERMO UNIT
$31.65¢15 824
1
#3
59C-85131-00-00
REFLECTOR, REAR 1
$11.74¢5 871
1
#4
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#5
BME-85112-00-00
BRACKET, REFLECTOR 1
$17.04¢8 522
1
#6
BME-85122-00-00
BRACKET, REFLECTOR 2
$9.23¢4 617
1
#7
BME-8591A-60-00
ENGINE CONTROL UNIT ASSY *{FOR CAL}*
$1539.84¢769 919
1
#8
BME-82310-00-00
IGNITION COIL ASSY
$97.99¢48 996
1
#9
2CR-85899-10-00
SENSOR, GEAR POSITION
$119.69¢59 846
1
#10
93210-17008-00
O-RING
$1.99¢995
1
#11
90110-05067-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#12
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#13
90430-10148-00
Gasket
$5.21¢2 605
1
#14
1WS-82504-01-00
OIL PRESSURE SWITCH ASSY
$66.99¢33 494
1
#15
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$32.97¢16 485
1
#16
B7N-82599-01-00
COVER, CONNECTOR
$3.76¢1 880
1
#17
BME-82501-10-00
MAIN SWITCH STEERING LOCK
$166.15¢83 076
1
#18
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#19
BME-82568-00-00
COVER, MAIN SWITCH
$31.83¢15 916
1
#20
90105-081A1-00
BOLT, FLANGE
$7.56¢3 778
1
#21
90269-07015-00
RIVET
$1.13¢564
1
#22
BME-83371-00-00
HORN
$49.25¢24 627
1
#23
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#24
BME-23377-00-00
BRACKET, HORN
$23.47¢11 736
1
#25
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
