COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

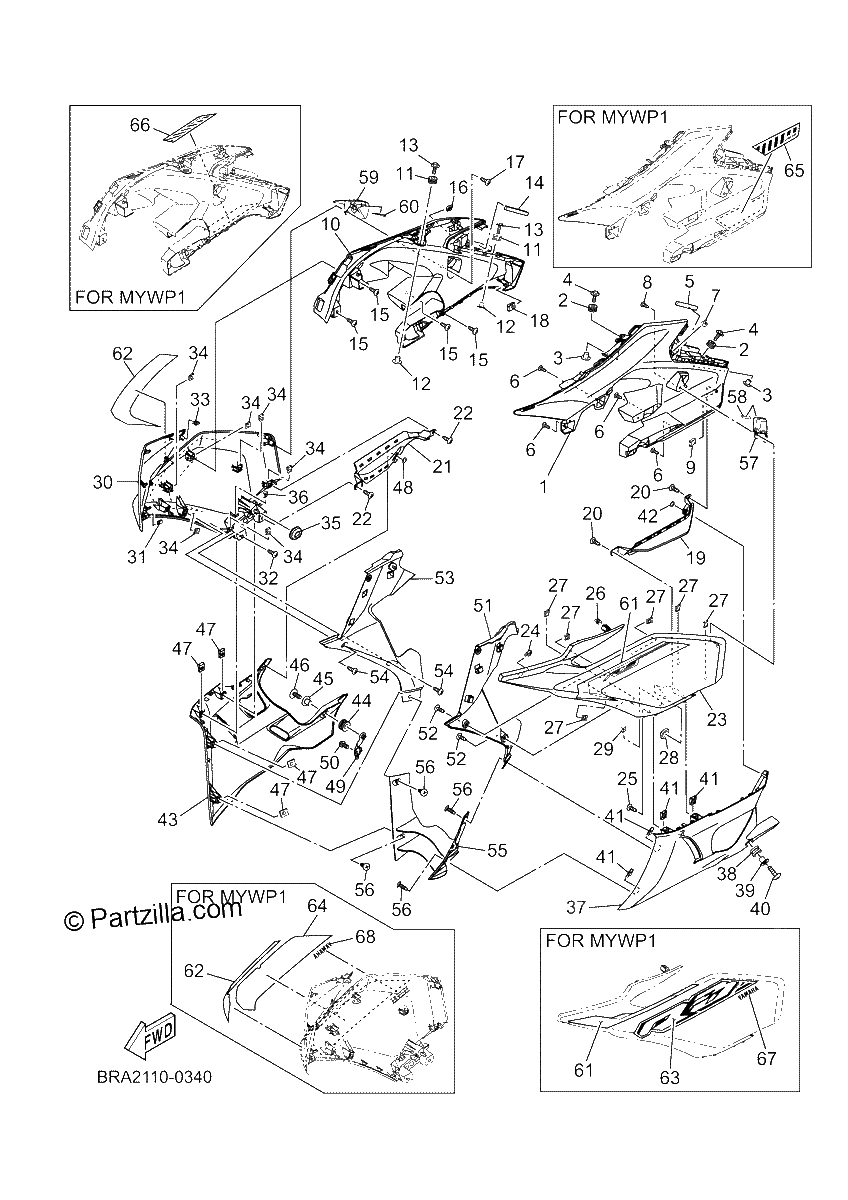

Diagrama de COWLING 1

Repuestos

#1
BRA-F172G-00-P1
PANEL 3 *{GBP1 FOR MYWP1}*
$61.11¢30 556
1
#2
90480-12808-00
GROMMET
$2.95¢1 475
1
#3
90387-06899-00
COLLAR
$2.94¢1 469
1
#4
90119-06810-00
BOLT, WITH WASHER
$3.67¢1 838
1
#5
90520-06013-00
DAMPER, PLATE
$1.14¢569
1
#6
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#7
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#8
90160-05012-00
SCREW, ROUND TAPPING
$7.46¢3 731
1
#9
90183-05807-00
NUT, SPRING
$1.25¢625
1
#10
BRA-F172H-00-P1
PANEL 4 *{GBP1 FOR MYWP1}*
$61.06¢30 531
1
#11
90480-12808-00
GROMMET
$2.95¢1 475
1
#12
90387-06899-00
COLLAR
$2.94¢1 469
1
#13
90119-06810-00
BOLT, WITH WASHER
$3.67¢1 838
1
#14
90520-06013-00
DAMPER, PLATE
$1.14¢569
1
#15
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#16
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#17
90160-05012-00
SCREW, ROUND TAPPING
$7.46¢3 731
1
#18
90183-05807-00
NUT, SPRING
$1.25¢625
1
#19
BS7-F117V-00-00
COVER 7
$16.54¢8 269
1
#20
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#21
BS7-F117W-00-00
COVER 8
$8.03¢4 013
1
#22
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#23
BRA-F835U-01-P2
PANEL 1 *{UR FOR MYWP1}*
$76.39¢38 194
1
#24
44D-F8379-00-00
HOOK
$6.14¢3 069
1
#25
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#26
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#27
90183-05807-00
NUT, SPRING
$1.25¢625
1
#28
90480-01821-00
Grommet
$1.41¢706
1
#29
90464-04004-00
CLAMP
$0.56¢281
1
#30
BRA-F835V-01-P2
PANEL 2 *{UR FOR MYWP1}*
$75.95¢37 975
1
#31
44D-F8379-00-00
HOOK
$6.14¢3 069
1
#32
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#33
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#34
90183-05807-00
NUT, SPRING
$1.25¢625
1
#35
90480-01821-00
Grommet
$1.41¢706
1
#36
90464-04004-00
CLAMP
$0.56¢281
1
#37
BS7-F8385-00-PB
COVER, LOWER *{UR FOR MYWP1}*
$73.19¢36 594
1
#38
90480-12808-00
GROMMET
$2.95¢1 475
1
#39
90387-06899-00
COLLAR
$2.94¢1 469
1
#40
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.75¢875
1
#41
90183-05807-00
NUT, SPRING
$1.25¢625
1
#42
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#43
B1X-F8395-00-P7
COVER, UNDER 2 *{UR FOR MYWP1}*
$76.61¢38 306
1
#44
90480-12808-00
GROMMET
$2.95¢1 475
1
#45
90387-06899-00
COLLAR
$2.94¢1 469
1
#46
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.75¢875
1
#47
90183-05807-00
NUT, SPRING
$1.25¢625
1
#48
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#49
BS7-F833E-00-00
BRACKET 8
$20.11¢10 056
1
#50
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$1.07¢538
1
#51
BS7-F836K-00-00
PANEL, INNER 1
$13.70¢6 850
1
#52
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#53
BS7-F836L-00-00
PANEL, INNER 2
$10.86¢5 431
1
#54
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#55
B1X-F836M-01-00
PANEL, INNER 3
$28.50¢14 250
1
#56
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#57
BRA-F8396-00-00
PLATE 1
$3.16¢1 581
1
#58
BRA-F8344-00-00
TAPE
$1.76¢881
1
#59
BRA-F8397-00-00
PLATE 2
$3.10¢1 550
1
#60
BRA-F8344-00-00
TAPE
$1.76¢881
1
#61
BRA-F8393-20-00
GRAPHIC 3 *{UR FOR MYWP1}*
$15.80¢7 900
1
#62
BRA-F8394-20-00
GRAPHIC 4 *{UR FOR MYWP1}*
$15.80¢7 900
1
#63
BRA-F8398-00-00
GRAPHIC 5 *{FOR MYWP1}*
$34.28¢17 138
1
#64
BRA-F8399-00-00
GRAPHIC 6 *{FOR MYWP1}*
$34.28¢17 138
1
#65
BRA-F839A-00-00
GRAPHIC 7 *{FOR MYWP1}*
$5.22¢2 613
1
#66
BRA-F839E-00-00
GRAPHIC 8 *{FOR MYWP1}*
$5.22¢2 613
1
#67
BRA-F153E-00-00
EMBLEM, YAMAHA *{FOR MYWP1}*
$2.10¢1 050
1
#68
BRA-F153E-00-00
EMBLEM, YAMAHA *{FOR MYWP1}*
$2.10¢1 050
1
