ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

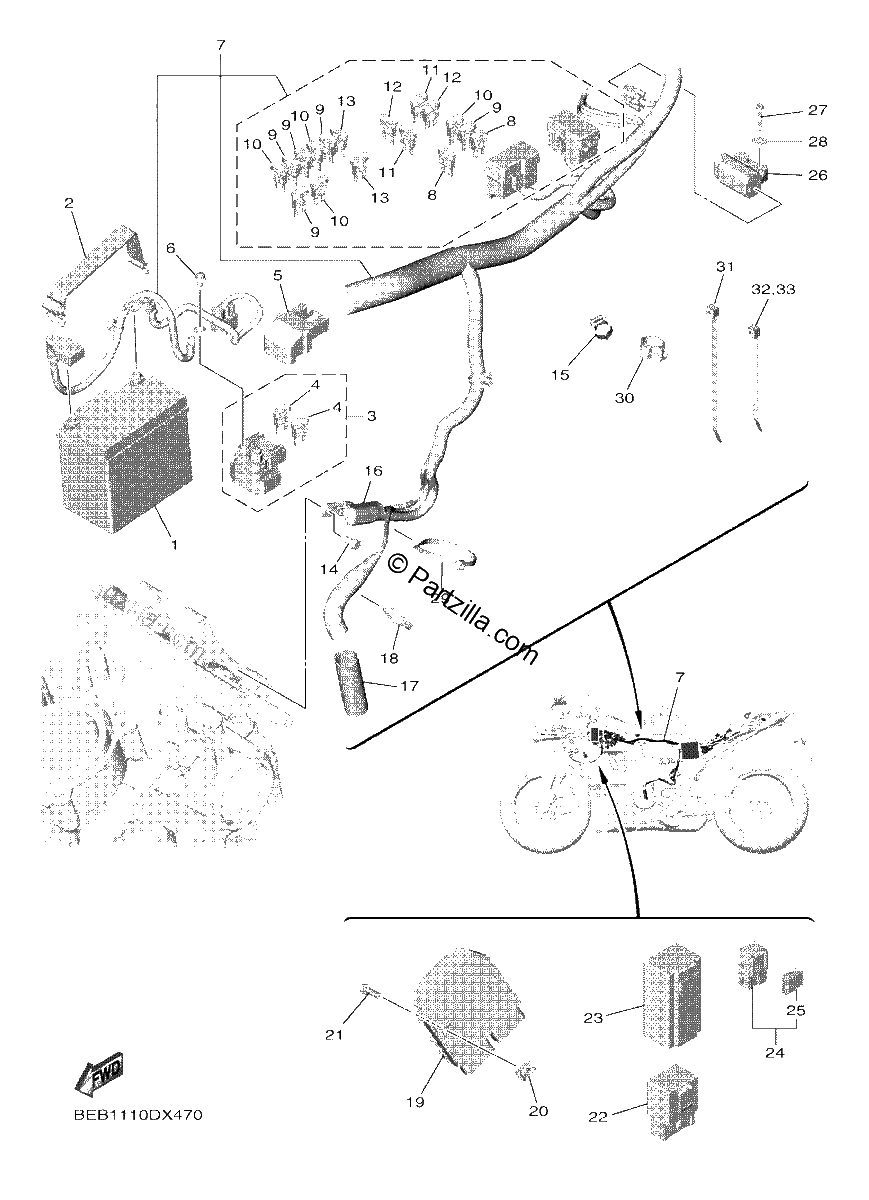

Diagrama de ELECTRICAL 1

Repuestos

#1
5TJ-82100-01-00
BATTERY YTZ7S(F) - FA
$246.70¢123 350
1
#2
3GX-82131-00-00
BAND, BATTERY
$8.68¢4 338
1
#3
1XC-81940-00-00
STARTER RELAY ASSY (RC19-089B)
$68.09¢34 044
1
#4
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#5
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#6
90105-06230-00
BOLT, FLANGE
$0.45¢225
1
#7
BEB-82590-01-00
WIRE HARNESS ASSY *{FOR U49}*
$848.74¢424 369
1
#8
5JJ-82151-50-00
. FUSE (3A-BL)
$5.99¢2 994
1
#9
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#10
5JJ-82151-30-00
. FUSE (10A-BL)
$8.24¢4 119
1
#11
5JJ-82151-20-00
FUSE (20A-BL)
$7.63¢3 813
1
#12
5JJ-82151-60-00
FUSE (30A-BL)
$7.63¢3 813
1
#13
5JJ-82151-10-00
. FUSE (15A-BL)
$4.44¢2 219
1
#14
91380-06012-00
BOLT
$2.23¢1 113
1
#15
90464-14010-00
CLAMP
$3.83¢1 913
1
#16
1WS-81916-00-00
COVER, TERMINAL
$5.21¢2 606
1
#17
2D1-82589-02-00
PROTECTER, WIRE HARNESS
$11.55¢5 775
1
#18
90464-36005-00
CLAMP
$1.20¢600
1
#19
27D-81960-00-00
RECTIFIER REGULATOR ASSY
$324.38¢162 188
1
#20
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#21
95E32-06020-00
BOLT, FLANGE DEEP RECESS
$0.96¢481
1
#22
5VK-81950-52-00
RELAY ASSY (G8R-30Y-V5)
$60.88¢30 438
1
#23
1WS-8246B-00-00
COVER 1
$9.74¢4 869
1
#24
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#25
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#26
5VU-82576-03-00
SENSOR, LEAN ANGLE
$102.81¢51 406
1
#27
91312-04025-00
BOLT
$1.84¢919
1
#28
90201-04030-00
WASHER, PLATE
$1.80¢900
1
#29
90464-80002-00
CLAMP
$6.14¢3 069
1
#30
90464-20191-00
Clamp
$8.76¢4 381
1
#31
90464-65001-00
CLAMP
$5.99¢2 994
1
#32
1UA-82591-00-00
BAND
$4.91¢2 456
1
#33
1UA-82591-00-00
BAND
$4.91¢2 456
1
