COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

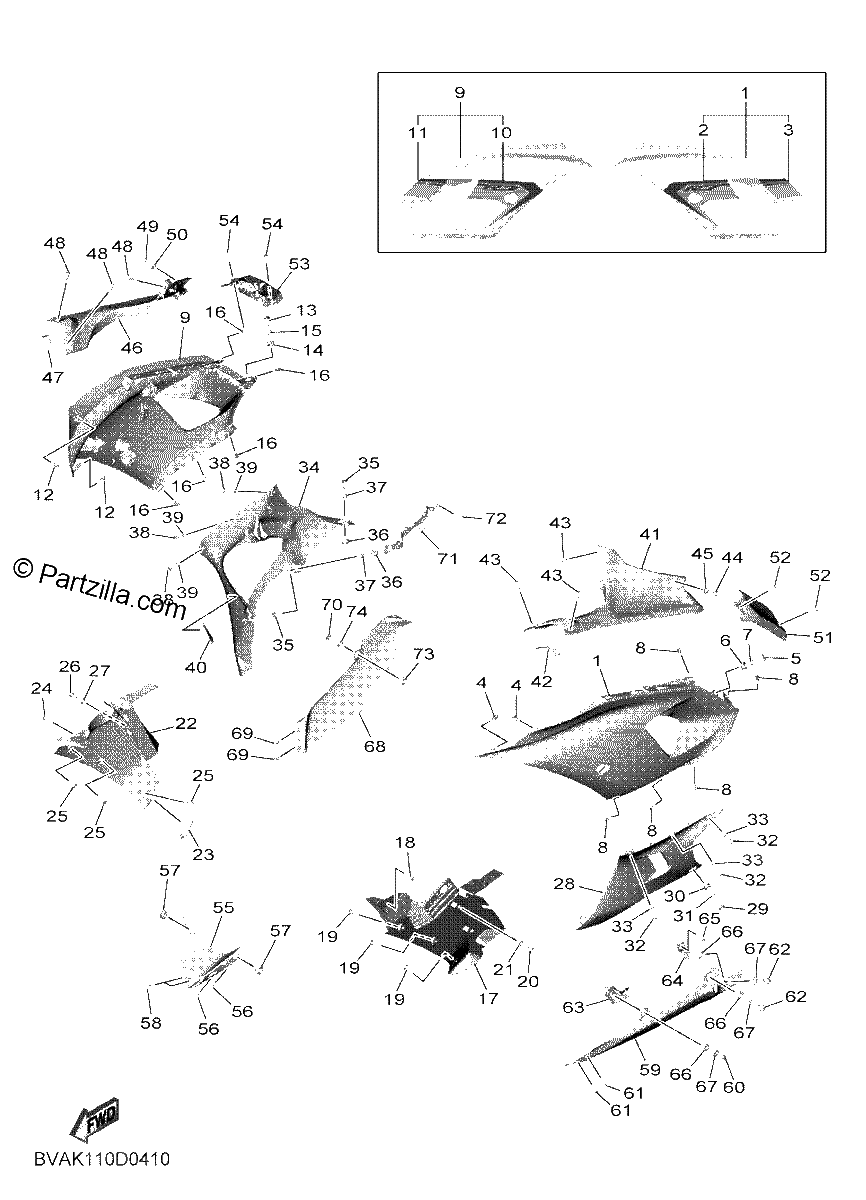

Diagrama de COWLING 2

Repuestos

#1
BEB-W283U-80-P5
PANEL ASSY 1 *{UR FOR MDNM6}*
$154.00¢76 998
1
#2
BVA-28391-40-00
GRAPHIC 1 *{UR FOR MDNM6}*
$78.53¢39 267
1
#3
BVA-28393-40-00
GRAPHIC 3 *{UR FOR MDNM6}*
$31.57¢15 784
1
#4
90464-07018-00
Clamp
$0.67¢333
1
#5
90111-06040-00
bolt
$3.68¢1 840
1
#6
90480-14003-00
GROMMET
$6.83¢3 415
1
#7
90387-06260-00
COLLAR
$6.83¢3 415
1
#8
90183-05042-00
NUT, SPRING
$1.15¢575
1
#9
BEB-W283V-80-P5
PANEL ASSY 2 *{UR FOR MDNM6}*
$182.88¢91 442
1
#10
BVA-28392-40-00
GRAPHIC 2 *{UR FOR MDNM6}*
$78.53¢39 267
1
#11
BVA-28394-40-00
GRAPHIC 4 *{UR FOR MDNM6}*
$31.57¢15 784
1
#12
90464-07018-00
Clamp
$0.67¢333
1
#13
90111-06040-00
bolt
$3.68¢1 840
1
#14
90480-14003-00
GROMMET
$6.83¢3 415
1
#15
90387-06260-00
COLLAR
$6.83¢3 415
1
#16
90183-05042-00
NUT, SPRING
$1.15¢575
1
#17
BEB-2836K-00-00
PANEL, INNER 1
$34.55¢17 273
1
#18
90269-06008-00
RIVET
$8.10¢4 048
1
#19
90269-06021-00
RIVET
$2.13¢1 064
1
#20
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.27¢3 134
1
#21
90387-06130-00
Collar
$7.93¢3 968
1
#22
BEB-2836L-00-00
PANEL, INNER 2
$25.20¢12 598
1
#23
BEB-28227-00-00
DAMPER 2
$4.17¢2 087
1
#24
90269-06008-00
RIVET
$8.10¢4 048
1
#25
90269-06021-00
RIVET
$2.13¢1 064
1
#26
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.27¢3 134
1
#27
90387-06130-00
Collar
$7.93¢3 968
1
#28
BEB-2172G-00-P5
PANEL 3 *{UR FOR MDNM6}*
$212.65¢106 323
1
#29
90111-06040-00
bolt
$3.68¢1 840
1
#30
90480-14003-00
GROMMET
$6.83¢3 415
1
#31
90387-06260-00
COLLAR
$6.83¢3 415
1
#32
90167-05076-00
SCREW, TAPPING
$1.94¢972
1
#33
90202-05088-00
WASHER, PLATE
$6.70¢3 352
1
#34
BEB-2172H-00-P5
PANEL 4 *{UR FOR MDNM6}*
$212.44¢106 220
1
#35
90111-06040-00
bolt
$3.68¢1 840
1
#36
90480-14003-00
GROMMET
$6.83¢3 415
1
#37
90387-06260-00
COLLAR
$6.83¢3 415
1
#38
90167-05076-00
SCREW, TAPPING
$1.94¢972
1
#39
90202-05088-00
WASHER, PLATE
$6.70¢3 352
1
#40
BEB-2838G-00-00
SEAT 1
$4.37¢2 185
1
#41
BEB-2837L-00-P4
PANEL, CONSOLE 1 (BLACK METALLIC X) *{UR FOR SMX,MNM3}*
$120.77¢60 386
1
#42
7NJ-14757-00-00
DAMPER, MUFFLER 2
$3.22¢1 610
1
#43
90269-06001-00
RIVET
$5.93¢2 967
1
#44
90167-05076-00
SCREW, TAPPING
$1.94¢972
1
#45
90202-05088-00
WASHER, PLATE
$6.70¢3 352
1
#46
BEB-2837M-00-P4
PANEL, CONSOLE 2 (BLACK METALLIC X) *{UR FOR SMX,MNM3}*
$120.77¢60 386
1
#47
7NJ-14757-00-00
DAMPER, MUFFLER 2
$3.22¢1 610
1
#48
90269-06001-00
RIVET
$5.93¢2 967
1
#49
90167-05076-00
SCREW, TAPPING
$1.94¢972
1
#50
90202-05088-00
WASHER, PLATE
$6.70¢3 352
1
#51
BEB-28219-00-00
COVER 1
$8.87¢4 433
1
#52
90167-05080-00
SCREW, TAPPING
$2.08¢1 041
1
#53
BEB-28229-00-00
COVER 2
$8.87¢4 433
1
#54
90167-05080-00
SCREW, TAPPING
$2.08¢1 041
1
#55
BEB-2836M-00-00
PANEL, INNER 3
$22.23¢11 115
1
#56
90183-05042-00
NUT, SPRING
$1.15¢575
1
#57
90480-01559-00
Grommet
$5.27¢2 633
1
#58
90269-06021-00
RIVET
$2.13¢1 064
1
#59
BEB-2834V-10-P5
PROTECTOR 1 *{UR FOR MNM3}*
$267.58¢133 791
1
#60
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#61
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#62
90111-06040-00
bolt
$3.68¢1 840
1
#63
BEB-2836A-00-00
BRACKET 1
$18.66¢9 332
1
#64
BEB-2836E-00-00
BRACKET 2
$8.31¢4 157
1
#65
95027-06016-00
Bolt, Flange
$6.88¢3 439
1
#66
90480-14477-00
GROMMET
$3.53¢1 765
1
#67
90387-06323-00
Collar
$5.16¢2 582
1
#68
BEB-2834W-10-P5
PROTECTOR 2 *{UR FOR MNM3}*
$279.48¢139 742
1
#69
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#70
90111-06040-00
bolt
$3.68¢1 840
1
#71
BEB-2836F-00-00
BRACKET 3
$58.71¢29 354
1
#72
90464-36005-00
CLAMP
$1.10¢552
1
#73
90480-14477-00
GROMMET
$3.53¢1 765
1
#74
90387-06323-00
Collar
$5.16¢2 582
1
