CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

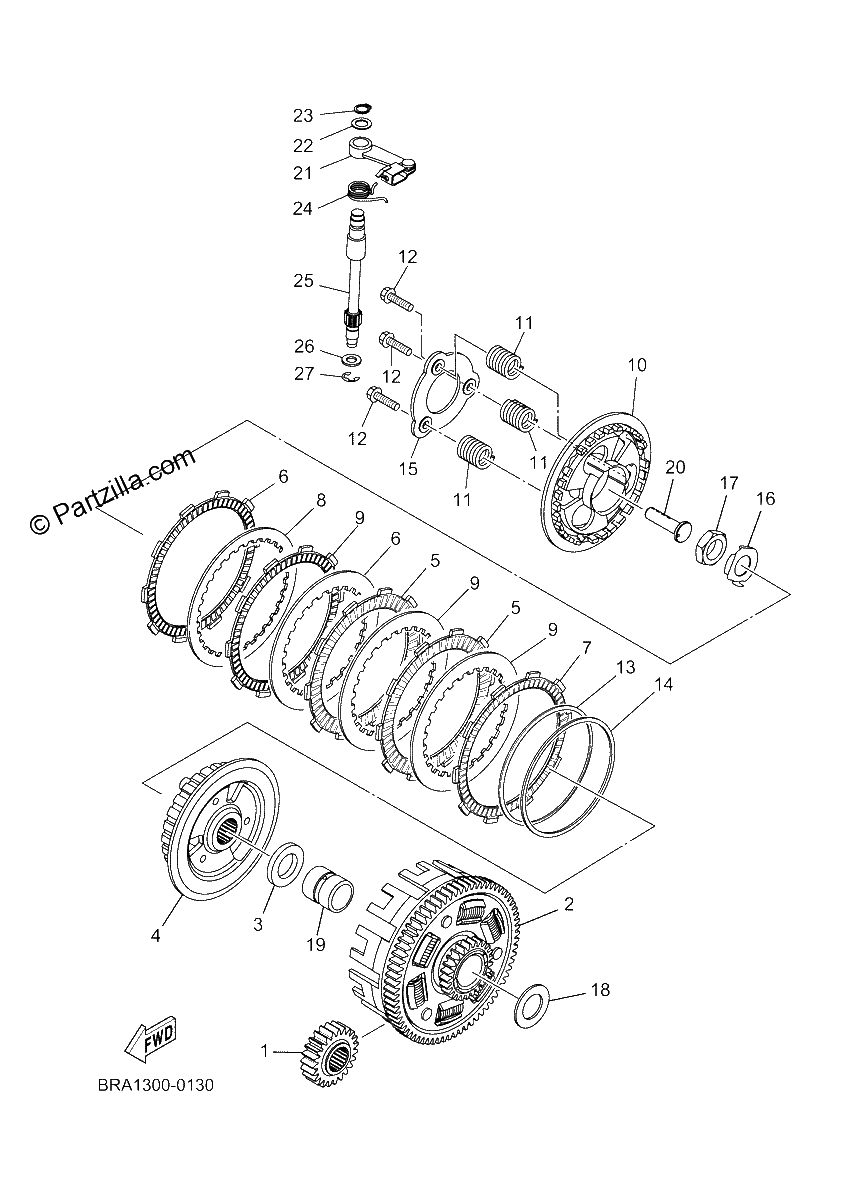

Diagrama de CLUTCH

Repuestos

#1
1WD-E6111-00-00
GEAR, PRIMARY DRIVE
$142.24¢71 119
1
#2
BRA-E6150-00-00
PRIMARY DRIVEN GEAR COMP
$154.00¢77 000
1
#3
1WD-E6154-00-00
PLATE, THRUST 1
$13.60¢6 800
1
#4
BRA-E6371-00-00
BOSS, CLUTCH
$45.32¢22 662
1
#5
BRA-E6321-00-00
PLATE, FRICTION
$14.35¢7 175
1
#6
BRA-E6331-00-00
PLATE, FRICTION 2
$10.99¢5 494
1
#7
BRA-E6307-00-00
PLATE, FRICTION 3
$10.99¢5 494
1
#8
BK6-E6324-00-00
PLATE, CLUTCH 1
$3.10¢1 550
1
#9
BK6-E6325-00-00
PLATE, CLUTCH 2
$3.10¢1 550
1
#10
BRA-E6350-00-00
PRESSURE PLATE ASSY
$48.75¢24 375
1
#11
BRA-E6333-00-00
SPRING, CLUTCH 1
$2.97¢1 487
1
#12
BRA-E6337-00-00
SCREW, SPRING
$0.59¢294
1
#13
BRA-E6383-00-00
SPRING.,CUSHION
$11.81¢5 906
1
#14
BRA-E6384-00-00
PLATE, SEAT
$3.43¢1 713
1
#15
2CR-16352-00-00
PLATE, PRESSURE 2
$9.51¢4 756
1
#16
90215-18800-00
WASHER, LOCK
$2.29¢1 144
1
#17
90170-18221-00
NUT
$14.98¢7 488
1
#18
90201-22013-00
WASHER, PLATE
$8.20¢4 100
1
#19
1WD-E6181-00-00
SPACER 1
$22.21¢11 106
1
#20
1WD-E6356-00-00
ROD, PUSH 1
$73.34¢36 669
1
#21
2MS-E6340-00-00
PUSH LEVER ASSY
$21.55¢10 775
1
#22
90201-10843-00
WASHER, PLATE
$1.33¢663
1
#23
99009-10400-00
CIRCLIP
$4.65¢2 325
1
#24
90508-18136-00
SPRING, TORSION
$3.81¢1 906
1
#25
1WD-16382-00-00
AXLE, PUSH LEVER
$50.06¢25 031
1
#26
92902-08600-00
WASHER, plate
$2.76¢1 381
1
#27
99002-07600-00
CIRCLIP
$3.60¢1 800
1
