WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

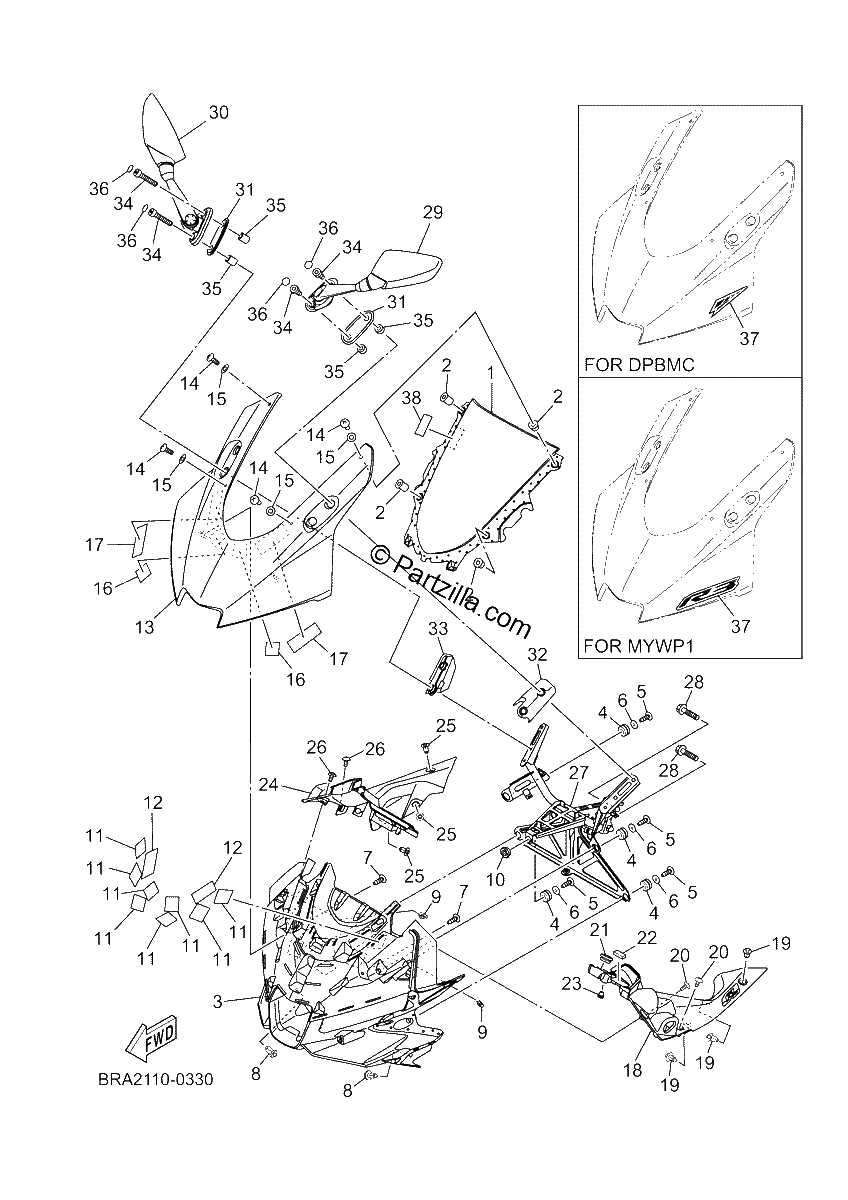

Diagrama de WINDSHIELD

Repuestos

#1
BS7-F8381-00-00
Windshield
$43.49¢21 746
1
#2
90179-05849-00
NUT
$6.23¢3 117
1
#3
BRA-F835G-00-00
BODY, FRONT UPPER 1
$23.63¢11 816
1
#4
90480-14004-00
GROMMET
$8.21¢4 105
1
#5
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#6
90201-05036-00
WASHER, plate
$6.43¢3 214
1
#7
90160-05814-00
SCREW, ROUND TAPPING
$0.55¢276
1
#8
90269-06816-00
RIVET
$1.58¢788
1
#9
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#10
90480-13567-00
GROMMET
$4.25¢2 128
1
#11
5D9-F414G-10-00
SEAL
$0.87¢437
1
#12
5D9-F414G-00-00
SEAL
$1.95¢977
1
#13
BRA-F8351-00-P1
COWLING *{UR FOR MDNM8}*
$30.57¢15 283
1
#14
90150-05023-00
SCREW,ROUND HEAD
$3.06¢1 529
1
#15
90202-05088-00
WASHER, PLATE
$6.70¢3 352
1
#16
5D9-F414G-10-00
SEAL
$0.87¢437
1
#17
5D9-F414G-00-00
SEAL
$1.95¢977
1
#18
BRA-F836N-00-00
PANEL, INNER 4
$12.35¢6 176
1
#19
90269-06816-00
RIVET
$1.58¢788
1
#20
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#21
90480-13398-00
GROMMET
$7.51¢3 755
1
#22
90520-06810-00
DAMPER, PLATE
$0.16¢81
1
#23
90338-06018-00
PLUG
$6.22¢3 111
1
#24
BRA-F836R-00-00
PANEL, INNER 5
$12.21¢6 106
1
#25
90269-06816-00
RIVET
$1.58¢788
1
#26
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#27
BRA-F8356-00-00
STAY 1
$103.67¢51 836
1
#28
95812-08035-00
Bolt, Flange
$7.30¢3 651
1
#29
BS7-F6280-00-00
REAR VIEW MIRROR ASSY (LEFT)
$59.16¢29 578
1
#30
BS7-F6290-00-00
REAR VIEW MIRROR ASSY (RIGHT)
$108.09¢54 044
1
#31
BK6-F8483-00-00
PLATE, RUBBER 1 (BK61)
$1.21¢604
1
#32
BS7-F8484-00-00
PLATE, RUBBER 2
$15.89¢7 946
1
#33
BS7-F8485-00-00
PLATE, RUBBER 3
$6.13¢3 065
1
#34
91317-06030-00
BOLT,HEX.SOCKET HEAD
$3.62¢1 811
1
#35
90387-06131-00
COLLAR
$6.83¢3 415
1
#36
20P-F3469-00-00
CAP, BOLT
$2.86¢1 432
1
#38
1WD-F815K-10-00
LABEL, NOTICE WINDSHIELD 1
$1.18¢592
1
