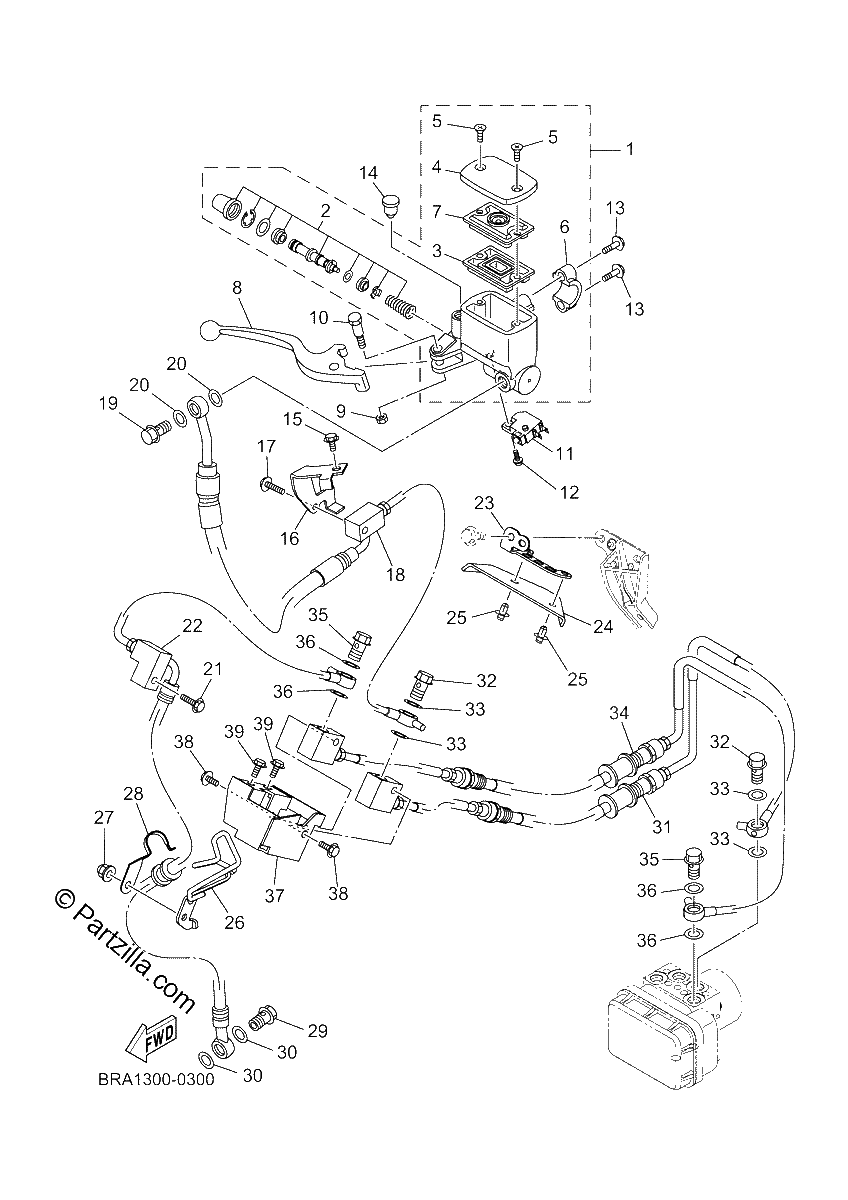

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER SUB ASSY
$81.78¢40 888
#2
CYLINDER KIT, MASTER
$36.03¢18 015
#3
DIAPHRAGM, RESERVOIR
$5.65¢2 823
#4
CAP, RESERVOIR
$7.04¢3 519
#5
. SCREW
$1.58¢788
#6
. BRACKET, MASTER CYLINDER
$27.01¢13 507
#7
BUSH, DIAPHRAGM
$0.40¢201
#8
LEVER 2
$9.12¢4 560
#9
NUT, SELF-LOCKING
$2.63¢1 317
#10
BOLT
$5.90¢2 950
#11
FRONT STOP SWITCH ASSY
$13.89¢6 946
#12
SCREW, PAN HEAD WITH WASHER
$3.83¢1 915
#13
BOLT, FLANGE DEEP RECESS
$0.44¢218
#14
PLUG
$0.34¢173
#15
BOLT, FLANGE DEEP
$0.41¢207
#16
HOLDER, BRAKE HOSE 5
$5.92¢2 961
#17
BOLT, FLANGE DEEP RECESS
$0.89¢443
#18
HOSE, BRAKE 1
$96.63¢48 317
#19
BOLT, UNION
$9.69¢4 847
#20
WASHER, PLATE
$3.16¢1 581
#21
BOLT, FLANGE DEEP RECESS
$0.89¢443
#22
HOSE, BRAKE 4
$94.04¢47 018
#23
Bracket
$6.49¢3 243
#24
COVER, STEERING
$2.64¢1 322
#25
RIVET
$1.58¢788
#26
HOLDER, BRAKE HOSE
$24.99¢12 495
#27
NUT, CROWN
$7.58¢3 789
#28
HOLDER, BRAKE HOSE
$13.89¢6 946
#29
BOLT, UNION
$9.69¢4 847
#30
WASHER, PLATE
$3.16¢1 581
#31
HOSE, BRAKE 2
$87.34¢43 671
#32
BOLT, UNION
$9.69¢4 847
#33
WASHER, PLATE
$3.16¢1 581
#34
HOSE, BRAKE
$84.43¢42 217
#35
BOLT, UNION
$9.69¢4 847
#36
WASHER, PLATE
$3.16¢1 581
#37
HOLDER, BRAKE HOSE 6
$13.43¢6 716
#38
BOLT, FLANGE DEEP RECESS
$1.01¢506
#39
BOLT, FLANGE DEEP RECESS
$1.01¢506
