ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

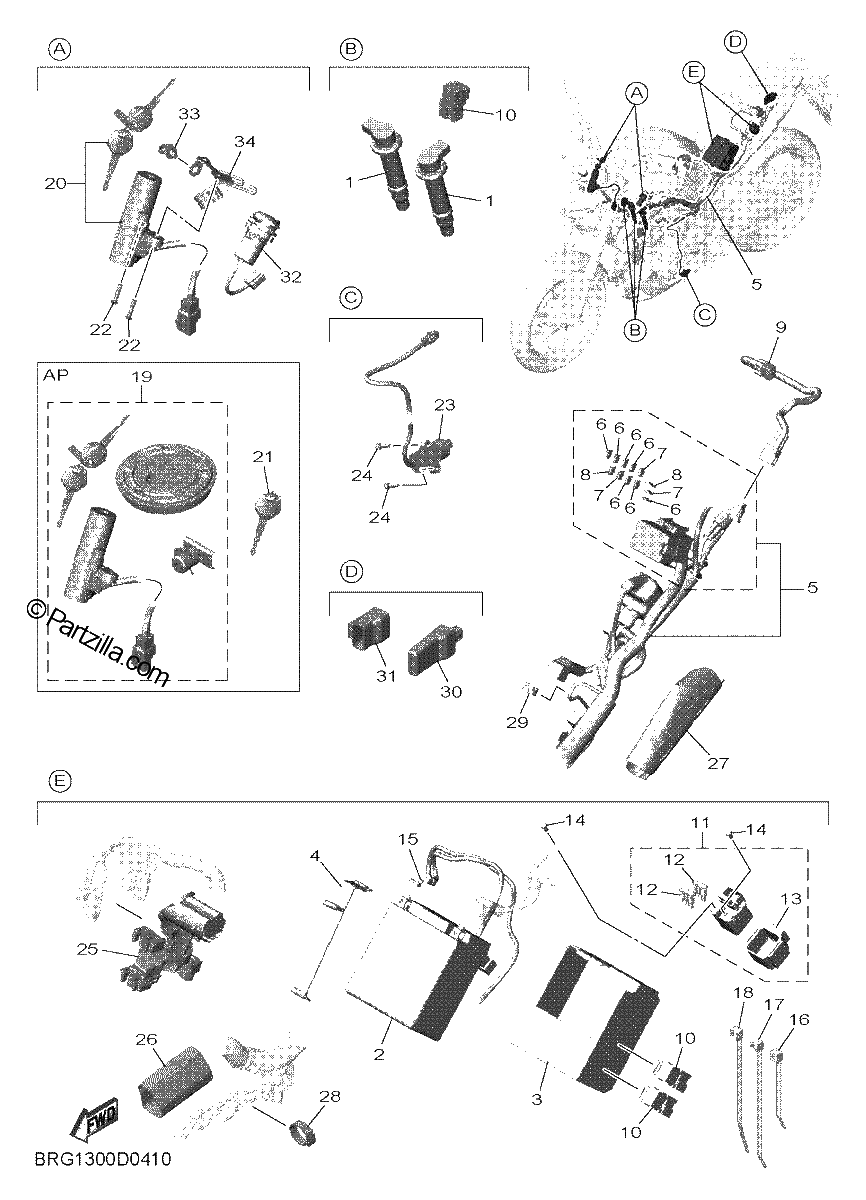

Diagrama de ELECTRICAL 1

Repuestos

#1
B1X-82310-00-00
IGNITION COIL ASSY
$67.92¢33 960
1
#2
1WD-H2100-01-00
BATTERY ASSY (GS GTZ8V)
$115.78¢57 891
1
#3
1WD-H2121-00-00
PAD, BATTERY
$11.26¢5 629
1
#4
BDJ-H2131-00-00
BAND, BATTERY
$2.30¢1 150
1
#5
BRG-H2590-20-00
WIRE HARNESS ASSY
$421.44¢210 720
1
#6
BRA-H2151-00-00
FUSE (75A)
$2.58¢1 288
1
#7
BRA-H2151-10-00
FUSE (15A)
$2.58¢1 288
1
#8
BRA-H2151-30-00
FUSE (30A)
$2.58¢1 288
1
#9
BRA-H2509-00-00
WIRE, SUB LEAD
$14.79¢7 394
1
#10
1WD-H1950-00-00
RELAY ASSY
$52.92¢26 462
1
#11
1WD-H1940-00-00
STARTER RELAY ASSY
$33.05¢16 525
1
#12
1WD-H2151-01-00
FUSE (30A-BL) (replaces 1WD-H2151-00-00)
$0.77¢385
1
#13
1WD-H2155-00-00
BAND
$2.23¢1 116
1
#14
91312-05008-00
BOLT
$5.69¢2 846
1
#15
BRA-H2116-00-00
WIRE, MINUS LEAD
$34.67¢17 336
1
#16
1UA-82591-00-00
BAND
$4.52¢2 260
1
#17
90464-70800-00
CLAMP
$0.98¢489
1
#18
90464-36005-00
CLAMP
$1.10¢552
1
#19
BRG-XH250-00-00
MAIN SW. STRG. LOCK SUB ASSY
$244.74¢122 371
1
#20
BRG-H2501-00-00
MAIN SWITCH STEERING LOCK
$127.05¢63 526
1
#21
1WD-H2511-09-00
BLANK KEY | AP
$16.95¢8 476
1
#22
90109-06282-00
BOLT
$3.73¢1 863
1
#23
BRA-H2566-00-00
SWITCH, SIDE STAND
$36.33¢18 164
1
#24
91317-05018-00
BOLT
$1.18¢592
1
#25
BRA-H1662-00-00
COVER, CONNECTER
$15.43¢7 716
1
#26
1WD-H2591-00-00
BAND
$2.78¢1 392
1
#27
BRA-F179E-00-00
BAND
$5.51¢2 754
1
#28
90464-26001-00
Clamp
$1.70¢851
1
#29
90464-13227-00
Clamp
$7.24¢3 622
1
#30
B6Y-H5810-11-00
COMMUNICATION CONT. UNIT ASSY
$122.21¢61 105
1
#31
BDJ-H2591-00-00
BAND
$1.67¢834
1
#32
BRG-H21E0-01-00
USB ASSY
$62.33¢31 165
1
#33
90464-30009-00
CLAMP
$3.58¢1 788
1
#34
B9T-F8358-00-00
STAY 3
$10.87¢5 434
1
