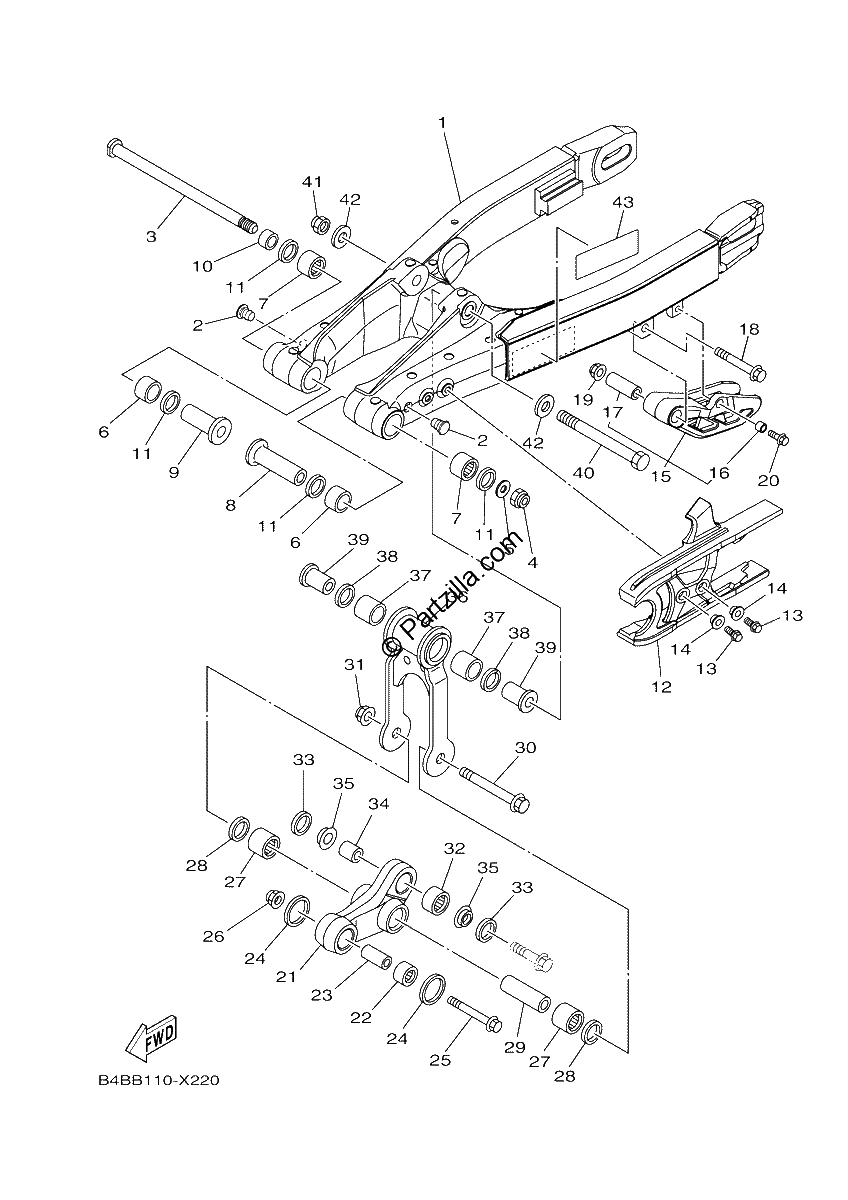

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$1437.49¢718 744
#2
PLUG
$7.35¢3 675
#3
Shaft, Pivot
$27.69¢13 844
#4
NUT, U
$4.88¢2 438
#5
WASHER, PLATE
$5.44¢2 719
#6
BUSH
$22.69¢11 344
#7
BEARING
$35.45¢17 725
#8
COLLAR
$37.91¢18 956
#9
COLLAR
$32.20¢16 100
#10
COLLAR
$19.64¢9 819
#11
OIL SEAL
$8.03¢4 013
#12
SEAL, GUARD
$140.26¢70 131
#13
BOLT, FLANGE DEEP RECESS
$0.44¢219
#14
COLLAR
$6.55¢3 275
#15
SUPPORT, CHAIN
$57.67¢28 838
#16
COLLAR
$7.49¢3 744
#17
Collar
$4.04¢2 019
#18
BOLT, FLANGE DEEP RECESS
$1.63¢813
#19
NUT,U
$3.41¢1 706
#20
BOLT, FLANGE DEEP RECESS
$0.49¢244
#21
ARM, RELAY
$162.57¢81 288
#22
BEARING
$39.89¢19 944
#23
Collar
$15.51¢7 756
#24
OIL SEAL
$8.03¢4 013
#25
BOLT, FLANGE
$21.94¢10 969
#26
NUT, U FLANGE
$2.73¢1 363
#27
BEARING
$37.88¢18 938
#28
OIL SEAL
$14.98¢7 488
#29
BUSH, SOLID
$29.51¢14 756
#30
BOLT
$11.00¢5 500
#31
NUT, SELF-LOCKING
$4.55¢2 275
#32
BEARING
$37.36¢18 681
#33
SEAL, DUST
$14.81¢7 406
#34
BUSH
$12.25¢6 125
#35
COLLAR, DISTANCE
$10.93¢5 463
#36
ROD, CONNECTING 1
$129.81¢64 906
#37
BEARING
$37.88¢18 938
#38
OIL SEAL
$14.98¢7 488
#39
BUSH, SOLID
$22.48¢11 238
#40
BOLT
$15.95¢7 975
#41
NUT, SELF-LOCKING
$8.25¢4 125
#42
WASHER, PLATE
$6.44¢3 219
#43
LABEL, TIRE
$4.38¢2 188
