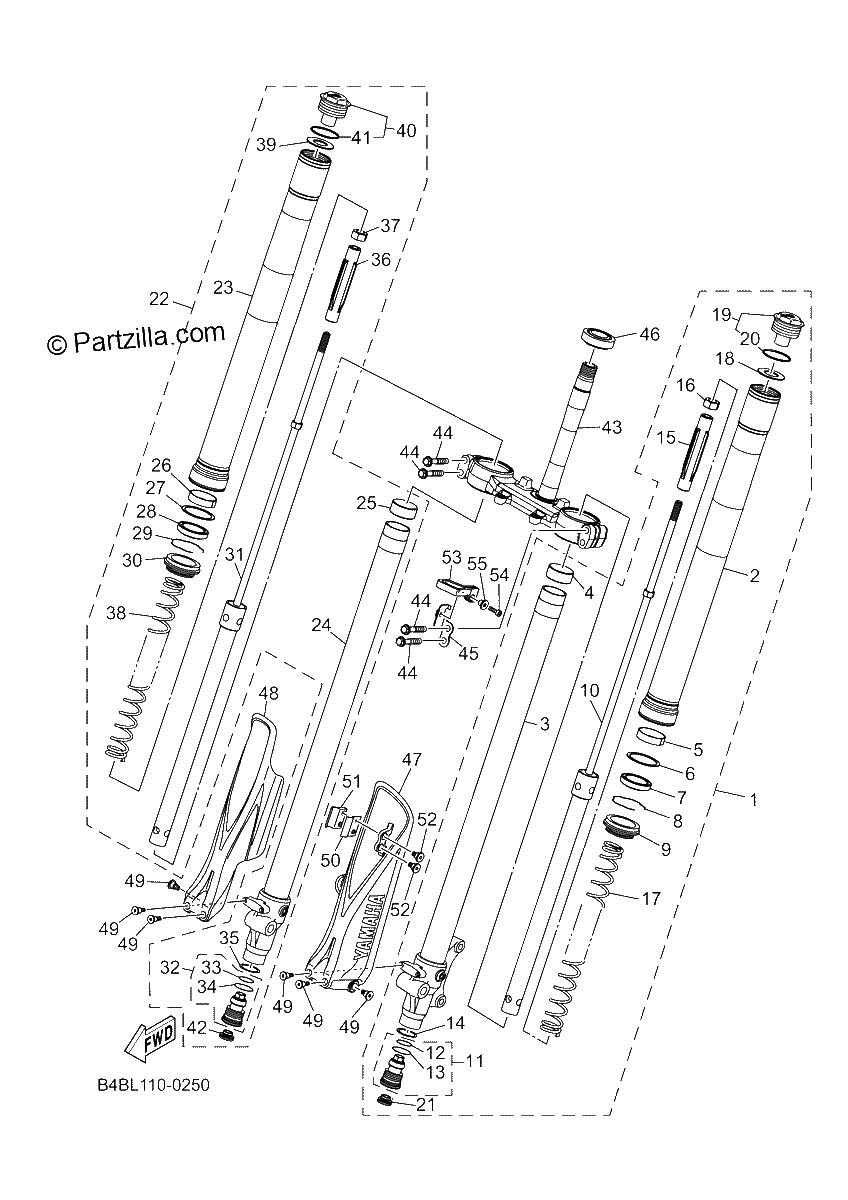

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$874.99¢437 494
#2
TUBE, OUTER 2
$603.20¢301 600
#3
INNER TUBE COMP.2
$301.59¢150 794
#4
PISTON, FRONT FORK
$32.14¢16 069
#5
METAL, SLIDE 1
$15.11¢7 556
#6
WASHER, SPRING UPPER
$9.13¢4 563
#7
OIL SEAL
$22.13¢11 063
#8
RING, SNAP
$5.66¢2 831
#9
SEAL, DUST
$23.24¢11 619
#10
CYLINDER COMP, FRONT FORK
$301.59¢150 794
#11
VALVE COMP
$198.85¢99 425
#12
. . ..O-RING
$7.24¢3 619
#13
GASKET
$4.00¢2 000
#14
GASKET
$11.34¢5 669
#15
SEAT, SPRING UPPER
$35.36¢17 681
#16
NUT
$0.90¢450
#17
SPRING, FRONT FORK(K=29N/MM)
$56.97¢28 487
#18
WASHER, SPRING UPPER
$5.88¢2 938
#19
BOLT, CAP
$195.89¢97 944
#20
O-RING
$5.69¢2 844
#21
PLUG, HOLE
$4.94¢2 469
#22
FRONT FORK ASSY (R.H)
$874.99¢437 494
#23
TUBE, OUTER 2
$603.20¢301 600
#24
INNER TUBE COMP.1
$301.59¢150 794
#25
PISTON, FRONT FORK
$32.14¢16 069
#26
METAL, SLIDE 1
$15.11¢7 556
#27
WASHER, SPRING UPPER
$9.13¢4 563
#28
OIL SEAL
$22.13¢11 063
#29
RING, SNAP
$5.66¢2 831
#30
SEAL, DUST
$23.24¢11 619
#31
CYLINDER COMP, FRONT FORK
$301.59¢150 794
#32
VALVE COMP
$198.85¢99 425
#33
. . ..O-RING
$7.24¢3 619
#34
GASKET
$4.00¢2 000
#35
GASKET
$11.34¢5 669
#36
SEAT, SPRING UPPER
$35.36¢17 681
#37
NUT
$0.90¢450
#38
SPRING, FRONT FORK(K=29N/MM)
$56.97¢28 487
#39
WASHER, SPRING UPPER
$5.88¢2 938
#40
BOLT, CAP
$195.89¢97 944
#41
O-RING
$5.69¢2 844
#42
PLUG, HOLE
$4.94¢2 469
#43
UNDER BRACKET COMP.
$807.49¢403 744
#44
BOLT 1
$6.42¢3 213
#45
GUIDE, CABLE
$25.72¢12 862
#46
BEARING TAPRD
$75.76¢37 881
#47
PROTECTOR 1
$22.25¢11 125
#48
PROTECTOR 2
$22.25¢11 125
#49
BOLT
$3.93¢1 963
#50
CLAMP
$19.71¢9 856
#51
CLAMP
$26.99¢13 494
#52
BOLT
$3.93¢1 963
#53
GUIDE, CABLE
$11.70¢5 850
#54
BOLT, HEXAGON SOCKET HEAD
$2.95¢1 475
#55
Collar
$3.16¢1 581
