FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

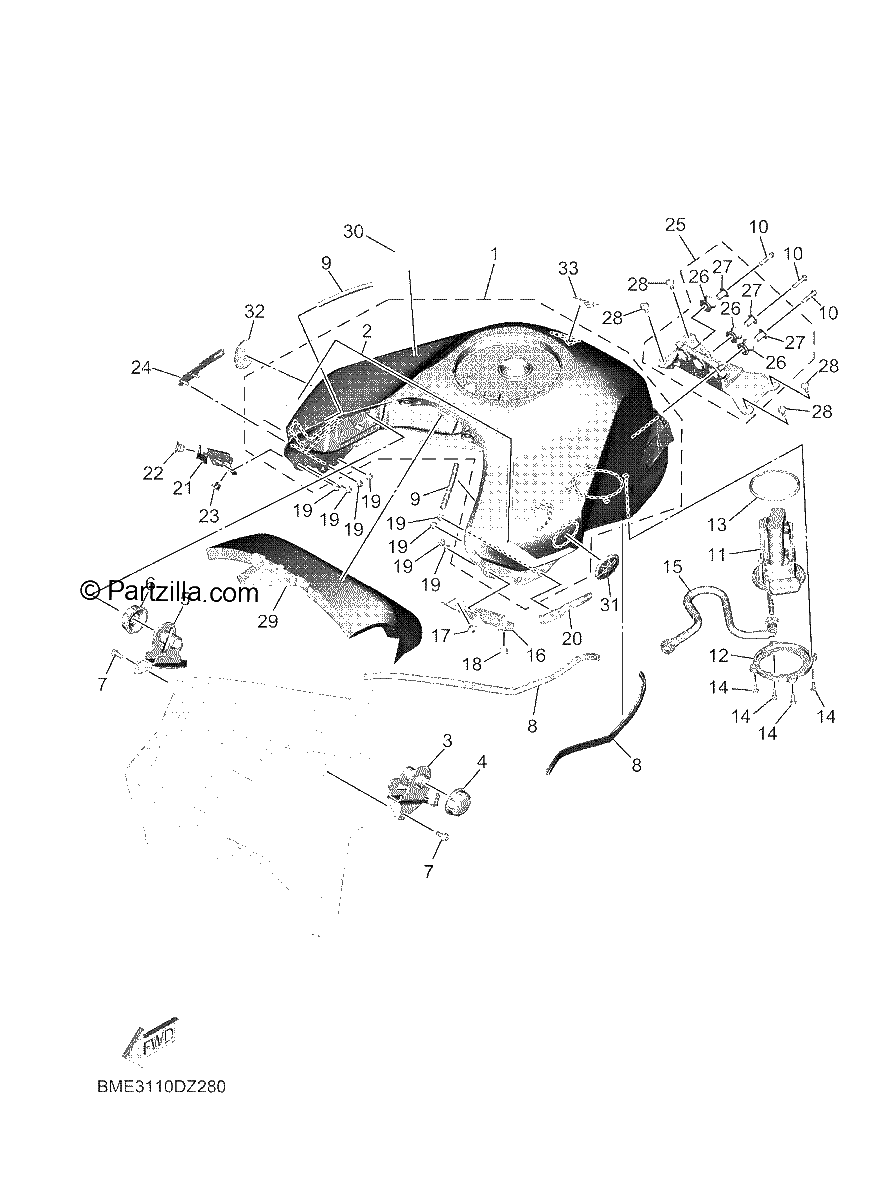

Diagrama de FUEL TANK

Repuestos

#1
BME-YG241-00-02
FUEL TANK COMP. *{UR FOR MLNM4}*
$841.79¢420 894
1
#2
BME-24240-30-00
GRAPHIC SET *{UR FOR MLNM4}*
$46.17¢23 086
1
#3
BME-24191-00-00
BRACKET, FUEL TANK 1
$71.81¢35 903
1
#4
BME-24181-00-00
DAMPER, LOCATING 1
$12.42¢6 210
1
#5
BME-24192-00-00
BRACKET, FUEL TANK 2
$88.85¢44 425
1
#6
BME-24181-00-00
DAMPER, LOCATING 1
$12.42¢6 210
1
#7
90111-06059-00
BOLT, HEX. SOCKET BUTTON
$4.28¢2 139
1
#8
BME-24188-00-00
MOLD, FUEL TANK
$14.81¢7 406
1
#9
BAG-24188-00-00
MOLD, FUEL TANK
$10.41¢5 204
1
#10
92012-06025-00
BOLT, BUTTON HEAD
$3.16¢1 581
1
#11
1RC-13907-20-00
FUEL PUMP COMP.
$521.39¢260 693
1
#12
1RC-24491-00-00
BRACKET, FUEL PUMP
$27.00¢13 501
1
#13
1RC-24486-00-00
O-RING
$26.89¢13 443
1
#14
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#15
B7N-13971-00-00
PIPE, FUEL 1
$59.93¢29 963
1
#16
BME-2411F-00-00
PLATE, FITTING
$23.70¢11 851
1
#17
90179-05525-00
NUT
$7.91¢3 956
1
#18
2RP-21719-00-00
GROMMET
$0.80¢402
1
#19
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#20
BME-2412J-00-00
STAY, RR. LH.
$18.46¢9 229
1
#21
BME-2411L-00-00
HOOK TANK FITTING
$23.57¢11 788
1
#22
90179-05525-00
NUT
$7.91¢3 956
1
#23
2RP-21719-00-00
GROMMET
$0.80¢402
1
#24
BME-2412K-00-00
STAY, RR. RH.
$17.38¢8 688
1
#25
BME-24105-00-00
TANK BRACKET ASSY 2
$146.33¢73 163
1
#26
BME-24339-00-00
GROMMET
$3.21¢1 604
1
#27
90387-06136-00
COLLAR
$6.22¢3 111
1
#28
90111-06029-00
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
1
#29
BME-2414H-00-00
DAMPER, PLATE 1
$23.03¢11 517
1
#30
29P-2816R-01-00
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
1
#31
BME-2413B-01-00
EMBLEM
$27.44¢13 719
1
#32
BME-2414B-01-00
EMBLEM
$27.44¢13 719
1
#33
B67-24161-60-00
EMBLEM 1 *{UR FOR MLNM4}*
$12.49¢6 244
1
