EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

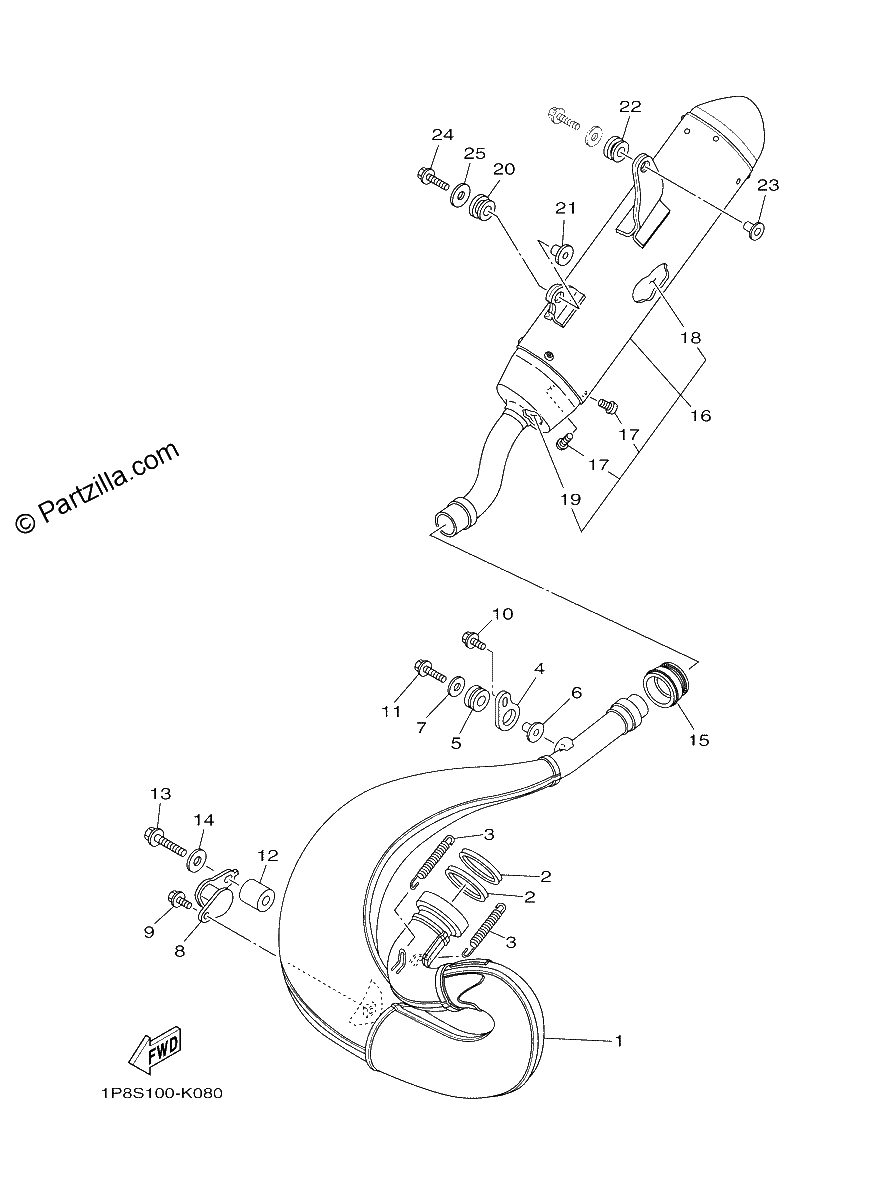

Diagrama de EXHAUST

Repuestos

#1
1P8-14610-00-00
EXHAUST PIPE ASSY 1
$633.67¢316 838
1
#2
5MW-14642-00-00
SEAL, EXHAUST
$18.90¢9 450
1
#3
90507-20052-00
SPRING, TENSION
$5.01¢2 506
1
#4
5CU-14771-01-00
STAY, MUFFLER 1
$33.84¢16 919
1
#5
90480-16561-00
GROMMET
$17.49¢8 744
1
#6
90387-063G3-00
COLLAR (56R)
$7.48¢3 738
1
#7
90201-06033-00
WASHER, PLATE
$3.26¢1 631
1
#8
5XF-14781-01-00
STAY, MUFFLER 2
$27.14¢13 569
1
#9
90119-06133-00
BOLT, WITH WASHER
$5.61¢2 806
1
#10
90119-06133-00
BOLT, WITH WASHER
$5.61¢2 806
1
#11
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#12
90387-08030-00
COLLAR
$10.35¢5 175
1
#13
90105-08136-00
BOLT, FLANGE
$7.34¢3 669
1
#14
90201-08049-00
WASHER, PLATE
$7.67¢3 838
1
#15
3JE-14615-01-00
JOINT, EXHAUST 1
$58.10¢29 050
1
#16
1P8-14753-00-00
SILENCER, EXHAUST
$844.23¢422 113
1
#17
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#18
1P8-1469A-00-00
FIBER
$245.55¢122 775
1
#19
1P8-1469E-00-00
FIBER
$4.35¢2 175
1
#20
90480-17004-00
GROMMET
$8.25¢4 125
1
#21
90387-06121-00
COLLAR
$9.45¢4 725
1
#22
90480-16404-00
GROMMET
$7.34¢3 669
1
#23
90387-06039-00
COLLAR
$8.55¢4 275
1
#24
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#25
90201-06086-00
WASHER, PLATE
$6.99¢3 494
1
