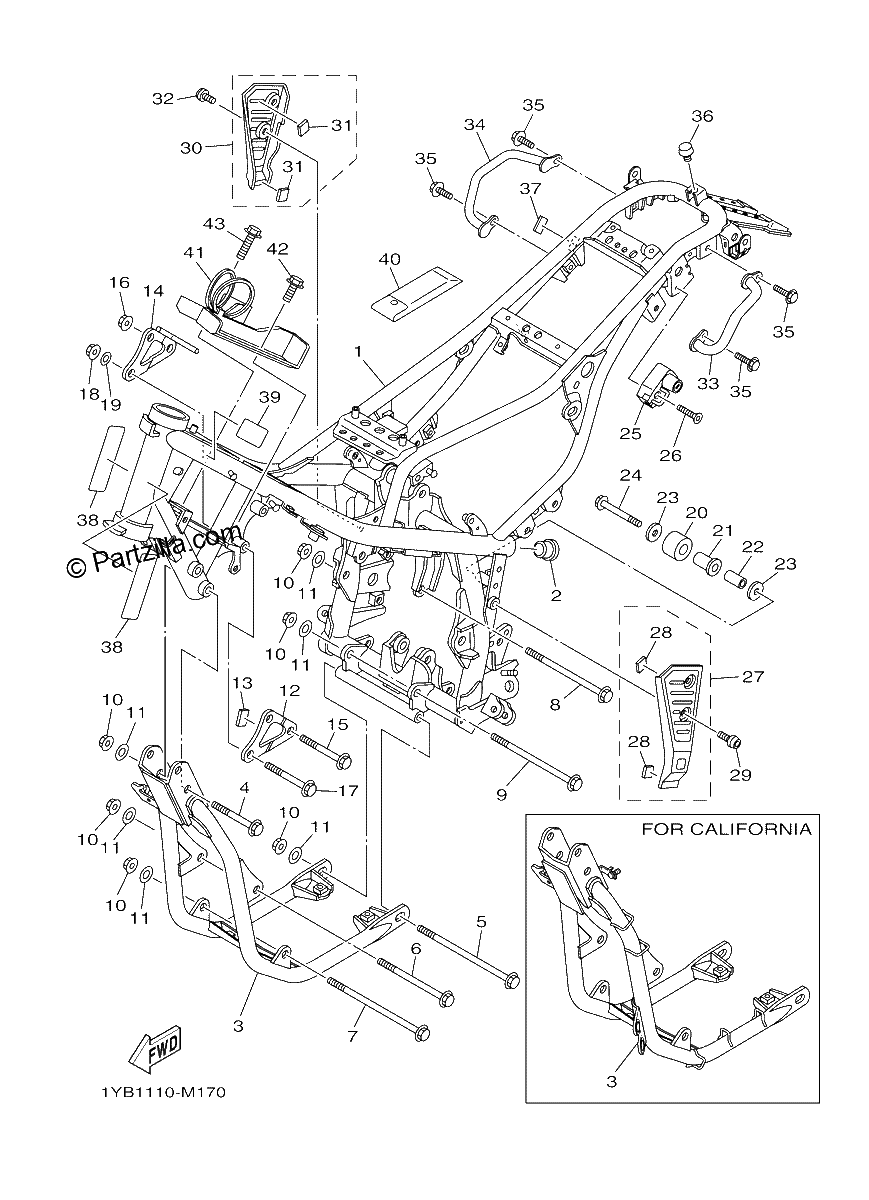

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP.
$1691.61¢845 806
#2
PLUG
$7.56¢3 781
#3
DOWN TUBE COMP.
$401.70¢200 850
#4
BOLT,WASHER BASED
$9.00¢4 500
#5
BOLT,WASHER BASED
$11.46¢5 731
#6
Bolt, Flange
$10.85¢5 425
#7
Bolt, Flange
$9.96¢4 981
#8
Bolt, Flange
$6.84¢3 419
#9
Bolt, Flange
$10.81¢5 406
#10
NUT,SPEC'L SHAPE
$9.22¢4 613
#11
WASHER, plate
$4.25¢2 125
#12
STAY, ENGINE 2
$14.86¢7 431
#13
DAMPER 2
$6.45¢3 225
#14
STAY, ENGINE 3
$22.09¢11 044
#15
Bolt, Flange
$16.14¢8 069
#16
NUT,SPEC'L SHAPE
$9.22¢4 613
#17
Bolt, Flange
$5.51¢2 756
#18
NUT(4KM)
$6.78¢3 388
#19
WASHER, plate
$6.88¢3 438
#20
TENSIONER
$7.86¢3 931
#21
Bush
$8.03¢4 013
#22
Collar
$7.52¢3 762
#23
WASHER, PLATE
$7.52¢3 762
#24
Bolt, Flange
$7.28¢3 638
#25
HELMET HANGER ASSY
$87.00¢43 500
#26
SCREW, COUNTERSUNK
$8.24¢4 119
#27
COVER ASSY 1
$74.35¢37 175
#28
Damper
$4.15¢2 075
#29
SCREW,SPEC'L SHAPE
$5.07¢2 537
#30
COVER ASSY 2
$101.21¢50 606
#31
Damper
$4.15¢2 075
#32
SCREW,SPEC'L SHAPE
$5.07¢2 537
#33
HANDLE, STANDING
$60.91¢30 456
#34
STAY, REAR
$55.79¢27 894
#35
BOLT, FLANGE
$7.94¢3 969
#36
Stopper
$8.20¢4 100
#37
DAMPER
No Disponible
#38
SEAL
$7.25¢3 625
#39
PLATE, ROUTING 2
$8.96¢4 481
#40
TOOL KIT
$60.95¢30 475
#41
TOOL BOX COMP.
$26.70¢13 350
#42
BOLT, FLANGE
$3.57¢1 787
#43
Bolt, Flange
$3.55¢1 775
