2 MAINTENANCE PARTS KIT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

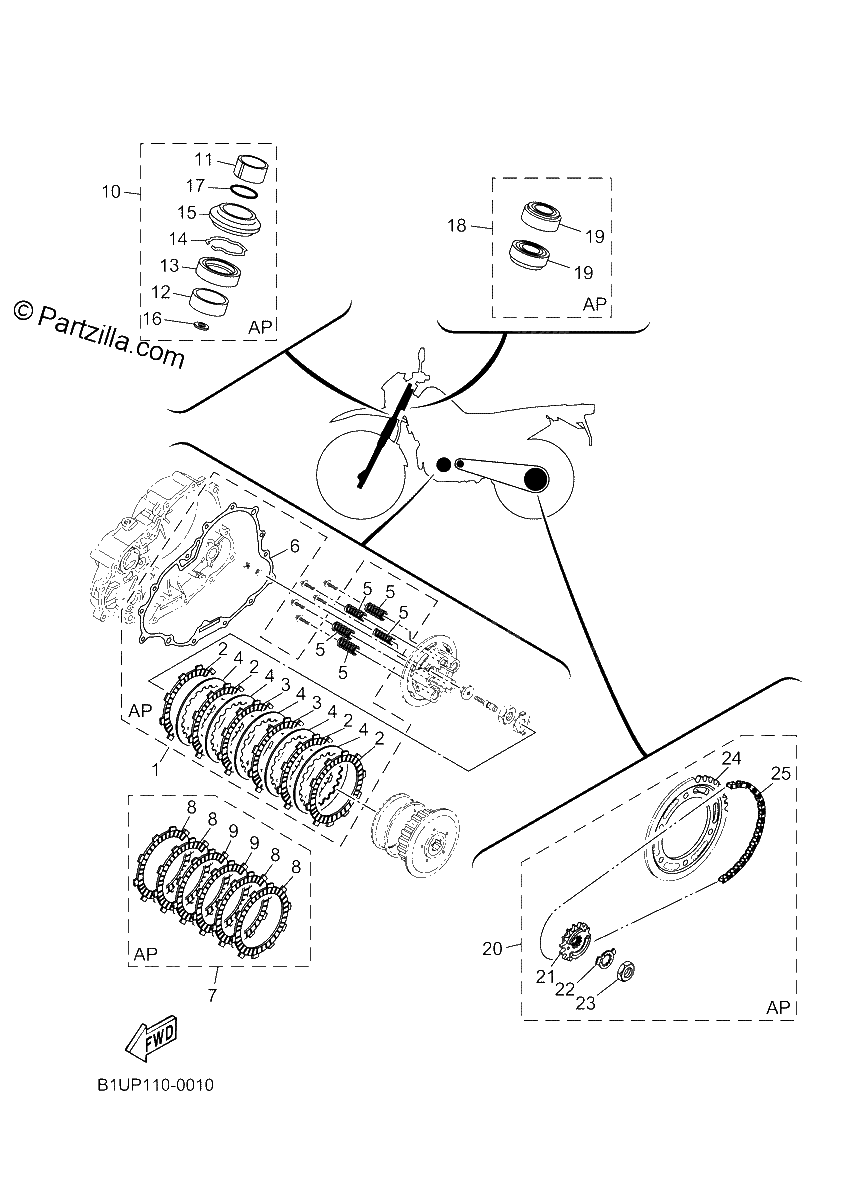

Diagrama de 2 MAINTENANCE PARTS KIT

Repuestos

#1
B1U-W001G-10-00
CLUTCH PLATE KIT *{AP}*
$192.71¢96 356
1
#2
1KT-16321-00-00
PLATE, FRICTION
$17.84¢8 919
1
#3
5DH-16321-00-00
PLATE, FRICTION
$25.19¢12 594
1
#4
3XJ-16324-10-00
PLATE, CLUTCH 1
$14.60¢7 300
1
#5
90501-23598-00
SPRING, COMPRESSION
$6.76¢3 381
1
#6
4D3-15461-00-00
GASKET, CRANKCASE CO
$24.57¢12 288
1
#7
B1U-W001M-00-00
FRICTION PLATE KIT
$95.72¢47 863
1
#8
1KT-16321-00-00
PLATE, FRICTION
$17.84¢8 919
1
#9
5DH-16321-00-00
PLATE, FRICTION
$25.19¢12 594
1
#10
B1U-W003B-00-00
FORK SEALS KIT
$62.67¢31 338
1
#11
5JX-23171-00-00
PISTON, FRONT FORK
$24.59¢12 294
1
#12
5JX-23125-00-00
METAL, SLIDE 1
$20.80¢10 400
1
#13
5JX-23145-00-00
OIL SEAL
$15.59¢7 794
1
#14
4A1-23156-00-00
RING, SNAP
$5.66¢2 831
1
#15
5JX-23144-00-00
SEAL, DUST
$17.01¢8 506
1
#16
1N1-23158-00-00
GASKET
$7.72¢3 863
1
#17
240-23114-00-00
GASKET
$14.65¢7 325
1
#18
B1U-W000B-00-00
STEERING BEARING KIT
$126.40¢63 200
1
#19
93332-00079-00
BEARING TAPRD
$75.76¢37 881
1
#20
B1U-W001A-00-00
CHAIN & SPROCKET KIT
$423.60¢211 800
1
#21
5XT-17460-00-00
SPROCKET, DRIVE
$25.53¢12 763
1
#22
90215-23265-00
WASHER,LOCK
$3.50¢1 750
1
#23
90179-18552-00
NUT,SPEC'L SHAPE
$18.80¢9 400
1
#24
3C5-25448-10-00
SPROCKET, DRIVEN (48T)
$52.00¢26 000
1
#25
94581-36128-00
CHAIN (DID428VS3 128LE) | DAIDO
$181.57¢90 788
1
