CLUTCH

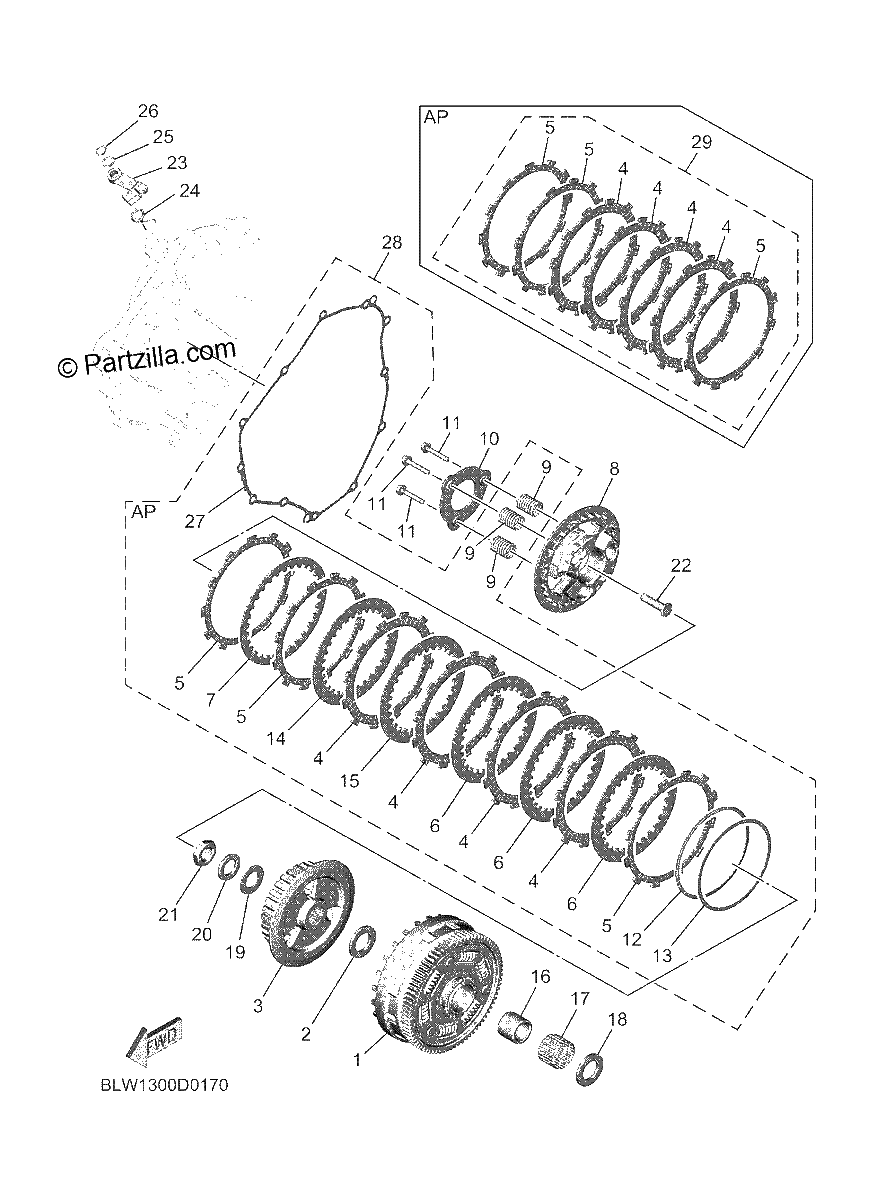

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PRIMARY DRIVEN GEAR COMP.
$485.59¢242 794
#2
PLATE, THRUST 1
$17.01¢8 506
#3
BOSS, CLUTCH
$102.13¢51 063
#4
PLATE, FRICTION
$13.09¢6 544
#5
PLATE, FRICTION 2
$22.48¢11 238
#6
PLATE, CLUTCH 2 *{(T2.0)}*
$12.61¢6 306
#7
PLATE, CLUTCH 1
$8.88¢4 438
#8
PRESSURE PLATE ASSY
$95.51¢47 756
#9
SPRING, COMPRESSION
$10.21¢5 106
#10
PLATE, PRESSURE 2
$9.30¢4 650
#11
SCREW, SPRING
$2.97¢1 487
#12
SPRING.,CUSHION
$31.84¢15 919
#13
PLATE, SEAT
$17.86¢8 931
#14
PLATE, CLUTCH 1 *{UR UN (T1.6)}*
$11.13¢5 563
#14
PLATE, CLUTCH 2 *{(T2.0)}*
$12.61¢6 306
#14
PLATE, CLUTCH 2 | UR
$23.73¢11 863
#15
PLATE, CLUTCH 2 *{(T2.0)}*
$12.61¢6 306
#15
PLATE, CLUTCH 1 *{UR UN (T1.6)}*
$11.13¢5 563
#15
PLATE, CLUTCH 2 | UR
$23.73¢11 863
#16
SPACER 1
$54.38¢27 188
#17
BEARING
$18.65¢9 325
#18
PLATE, THRUST 1
$17.01¢8 506
#19
WASHER, PLATE
$7.31¢3 656
#20
WASHER, CONICAL SPRING
$17.49¢8 744
#21
NUT
$15.14¢7 569
#22
ROD, PUSH 1
$61.08¢30 538
#23
PUSH LEVER ASSY
$29.22¢14 612
#24
SPRING, TORSION
$7.46¢3 731
#25
WASHER, PLATE
$7.48¢3 738
#26
CIRCLIP
$4.65¢2 325
#27
GASKET, CRANKCASE COVER 2
$29.24¢14 619
#28
CLUTCH PLATE KIT *{AP}*
$297.29¢148 644
#29
FRICTION PLATE KIT *{AP}*
$126.84¢63 419
