CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

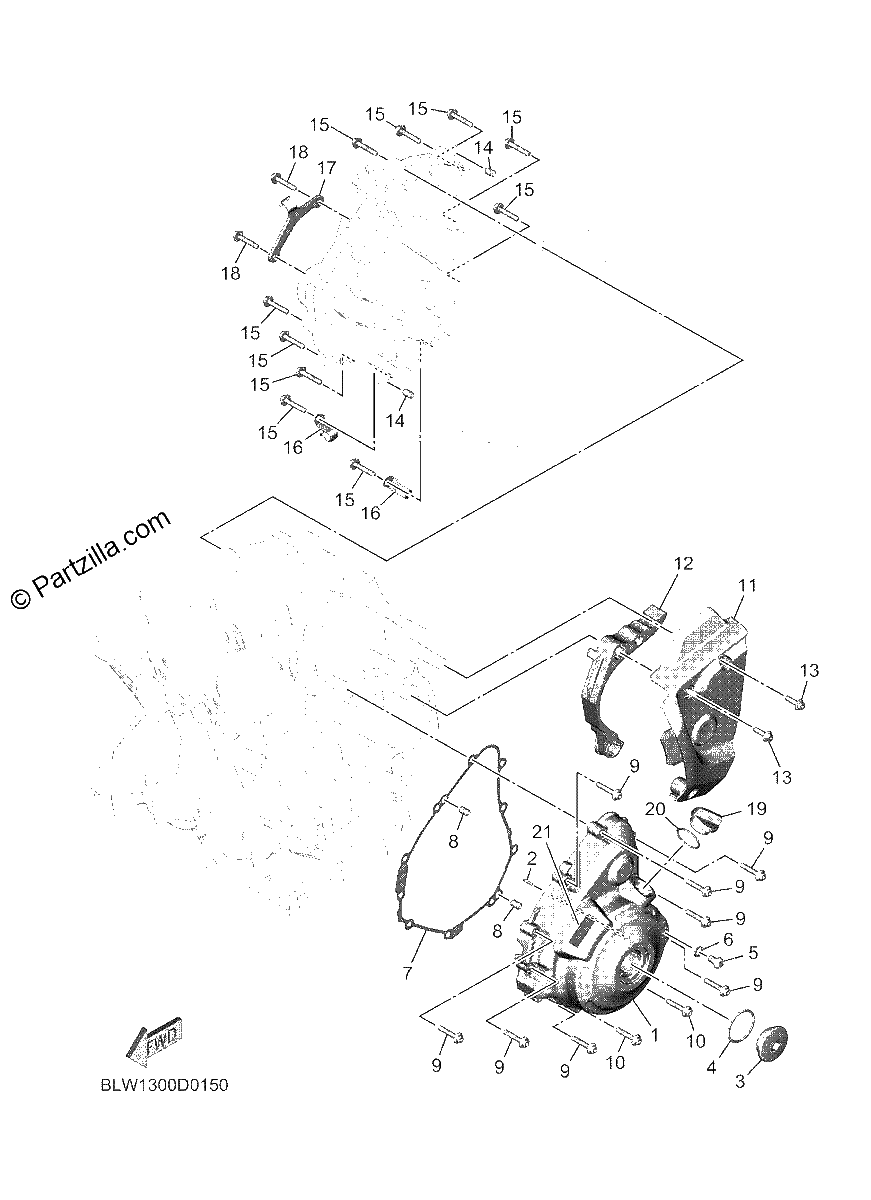

Diagrama de CRANKCASE COVER 1

Repuestos

#1
BLW-15411-00-00
COVER, CRANKCASE 1
$111.68¢55 838
1
#2
99480-03014-00
PIN
$2.36¢1 179
1
#3
90340-36008-00
PLUG, STRAIGHT SCREW
$19.34¢9 672
1
#4
93210-357A3-00
O-RING
$0.54¢270
1
#5
92017-08012-00
BOLT, BUTTON HEAD
$6.76¢3 381
1
#6
90430-08143-00
GASKET
$3.38¢1 691
1
#7
BLW-15451-00-00
GASKET, CRANKCASE COVER 1
$16.55¢8 274
1
#8
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#9
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#10
90110-06389-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#11
BLW-15418-00-00
COVER, CHAIN CASE
$28.88¢14 438
1
#12
BLW-15377-00-00
GUIDE, INLET
$31.56¢15 778
1
#13
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#14
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#15
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#16
BLW-15484-00-00
CLAMP 2
$7.03¢3 513
1
#17
BLW-15441-00-00
HOLDER, CLUTCH CABLE
$14.98¢7 492
1
#18
90110-06389-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#19
BAT-15362-00-00
PLUG, OIL LEVEL
$21.09¢10 545
1
#20
93210-27194-00
O-Ring
$7.56¢3 778
1
#21
B5Y-1548B-00-00
OIL, LABEL
$4.55¢2 277
1
