STAND FOOTREST 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

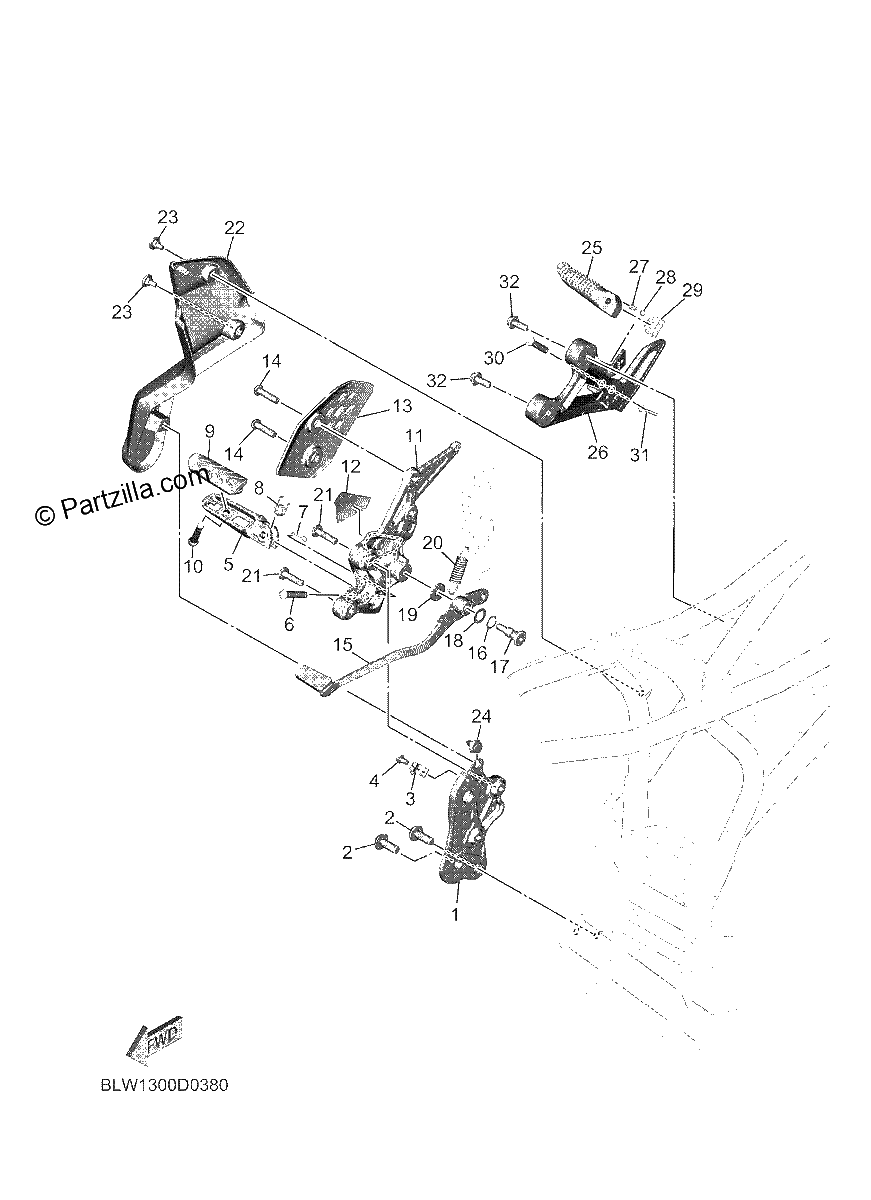

Diagrama de STAND FOOTREST 2

Repuestos

#1
B34-274A4-00-00
BRACKET, ADAPTER 2
$80.41¢40 204
1
#2
90111-10060-00
BOLT, HEX. SOCKET BUTTON
$5.06¢2 530
1
#3
BLW-15484-00-00
CLAMP 2
$7.03¢3 513
1
#4
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#5
BMG-27461-00-00
FOOTREST 4
No Disponible
1
#6
91701-08040-00
PIN
$4.45¢2 225
1
#7
91402-25015-00
PIN, COTTER
$3.32¢1 662
1
#8
90508-18135-00
SPRING, TORSION
$8.10¢4 048
1
#9
BLW-27413-00-00
COVER, FOOTREST
$14.37¢7 187
1
#10
90109-08233-00
BOLT
$5.82¢2 909
1
#11
BLW-27443-00-00
BRACKET 3
$93.31¢46 656
1
#12
BLW-27499-00-00
SEAT 2
$8.35¢4 174
1
#13
BLW-27446-00-00
PLATE 2
$29.39¢14 697
1
#14
92017-08030-00
BOLT, BUTTON HEAD
$7.79¢3 893
1
#15
BLW-27211-00-00
PEDAL, BRAKE
$64.71¢32 355
1
#16
90206-12074-00
WASHER,WAVE
$7.65¢3 824
1
#17
4BP-27434-01-00
BOLT
$2.79¢1 397
1
#18
90201-12051-00
WASHER, PLATE
$6.88¢3 439
1
#19
90201-08053-00
WASHER, PLATE
$6.38¢3 191
1
#20
90506-23008-00
SPRING, TENSION
$6.46¢3 231
1
#21
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
1
#22
BLW-27463-00-00
COVER 2
$17.99¢8 993
1
#23
90109-06346-00
BOLT
$3.68¢1 840
1
#24
90269-08008-00
RIVET
$1.77¢886
1
#25
B7N-27441-00-00
FOOTREST, REAR 2
$12.91¢6 457
1
#26
BLW-2742L-00-00
BRACKET 5
$92.31¢46 155
1
#27
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#28
93501-04011-00
BALL
$6.87¢3 433
1
#29
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#30
90240-08063-00
PIN,CLEVIS
$8.21¢4 105
1
#31
91402-25015-00
PIN, COTTER
$3.32¢1 662
1
#32
90110-08111-00
BOLT, HEXAGON SOCKET HEAD
$3.20¢1 598
1
