FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

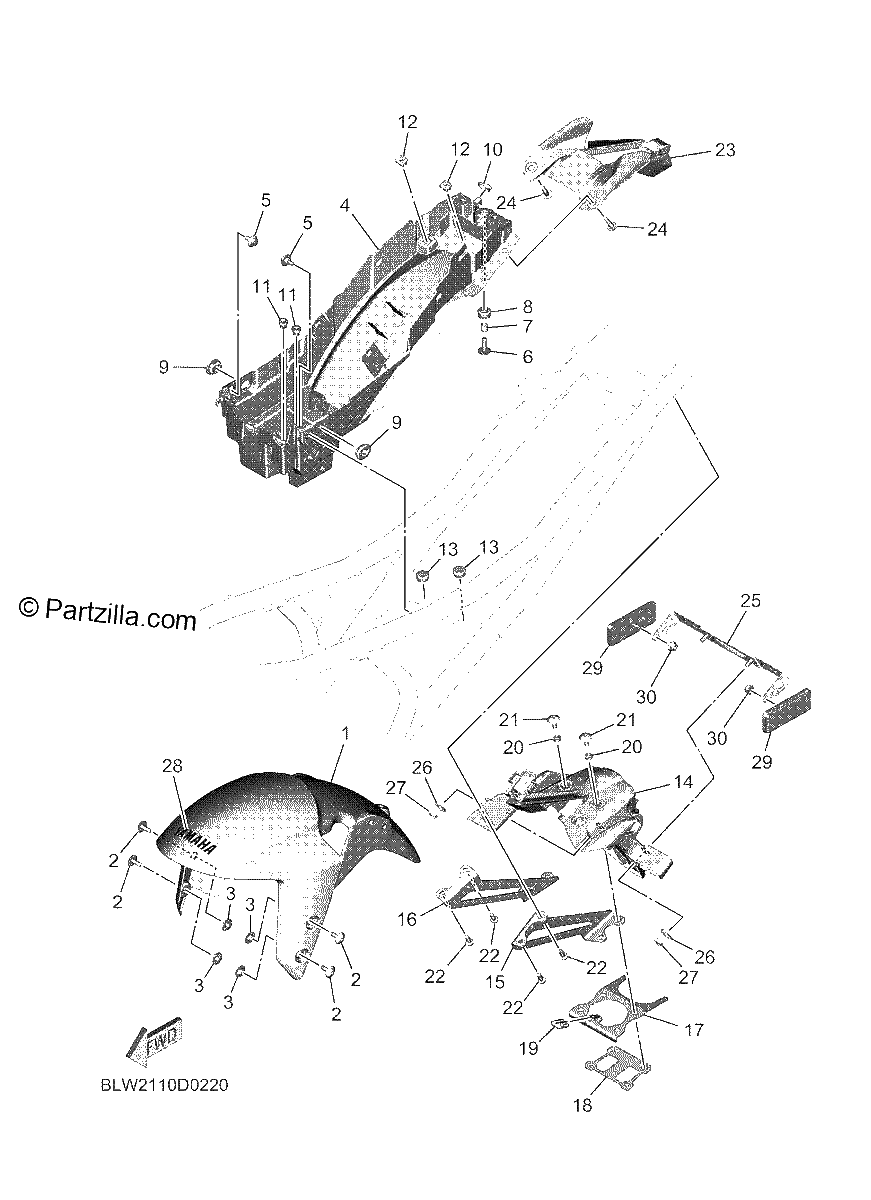

Diagrama de FENDER

Repuestos

#1
BLW-21511-00-P2
FENDER, FRONT *{UR FOR MDNMD}*
$178.24¢89 119
1
#2
90111-06191-00
BOLT,HEX. SOCKET BUTTON
$1.07¢538
1
#3
90387-07717-00
COLLAR
$7.34¢3 669
1
#4
BLW-8212B-00-00
BOX, BATTERY 1
$55.40¢27 700
1
#5
90109-06202-00
BOLT
$3.24¢1 619
1
#6
90119-06267-00
BOLT, WITH WASHER
$7.34¢3 669
1
#7
90387-060A7-00
COLLAR
$12.52¢6 262
1
#8
90480-14003-00
GROMMET
$7.43¢3 713
1
#9
90480-01559-00
Grommet
$5.72¢2 863
1
#10
90464-16061-00
BAND
$8.35¢4 175
1
#11
4B4-84334-00-00
NUT, ADJUSTING
$4.96¢2 481
1
#12
90480-09003-00
GROMMET
$1.39¢694
1
#13
90338-14008-00
PLUG
$4.01¢2 006
1
#14
BLW-21629-10-00
GUARD, MUD
$48.54¢24 269
1
#15
BLW-2164F-00-00
STAY 1
$62.35¢31 175
1
#16
BLW-2164G-00-00
STAY 2
$62.35¢31 175
1
#17
BAT-21682-00-00
STAY, PLATE
$14.68¢7 338
1
#18
BAT-2161G-00-00
BRACKET 6
$10.63¢5 313
1
#19
1WS-21746-00-00
DAMPER
$3.38¢1 688
1
#20
90387-06372-00
COLLAR
$6.45¢3 225
1
#21
90111-06089-00
BOLT,HEX. SOCKET BUTTON
$7.46¢3 731
1
#22
90105-06226-00
Bolt, Flange
$1.07¢538
1
#23
BLW-2163A-10-00
COVER, REAR FENDER 1
$16.88¢8 438
1
#24
90269-07008-00
RIVET
$3.02¢1 513
1
#25
BLW-84751-00-00
BRACKET, LICENSE
$40.17¢20 088
1
#26
92902-06600-00
WASHER, plate
$3.40¢1 700
1
#27
95602-06100-00
NUT, SELF-LOCKING
$2.86¢1 431
1
#28
99247-00080-00
EMBLEM, YAMAHA
$14.14¢7 069
1
#29
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#30
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
