2 MAINTENANCE PARTS KIT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

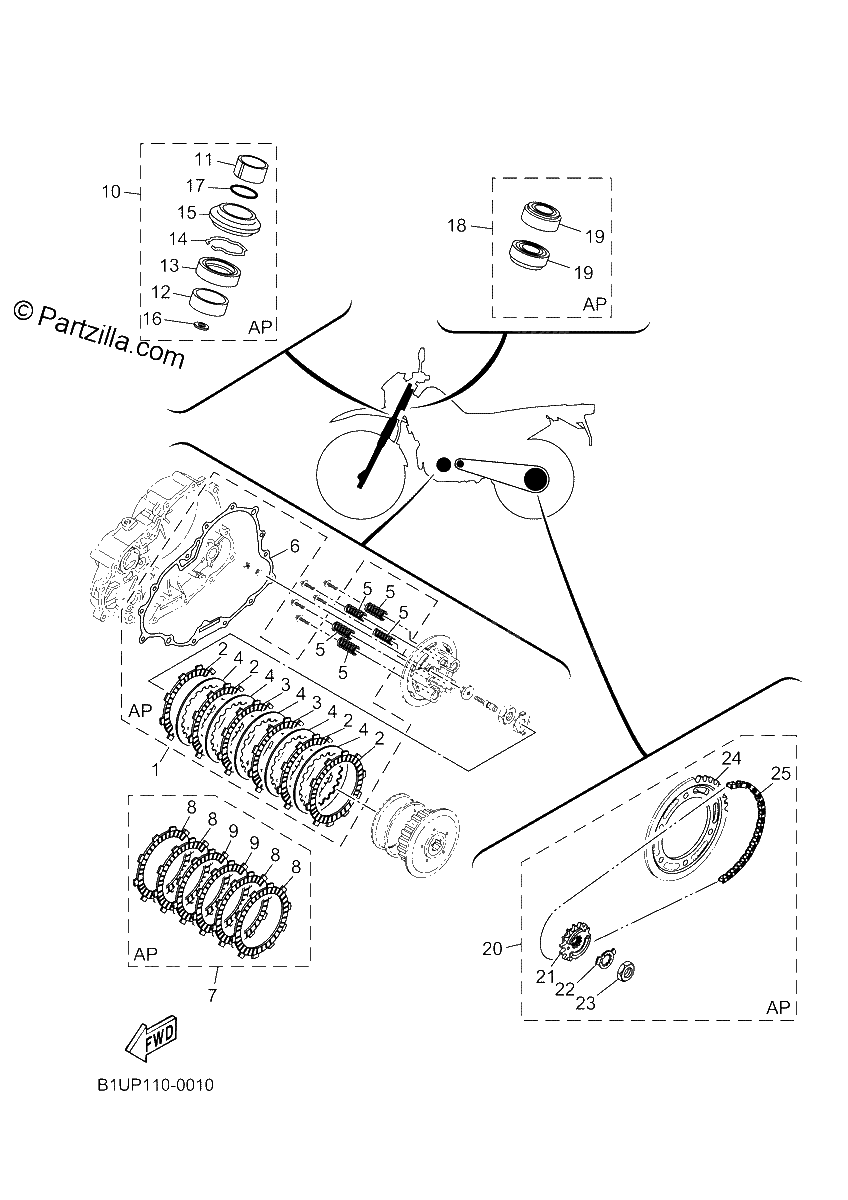

Diagrama de 2 MAINTENANCE PARTS KIT

Repuestos

#1
B1U-W001G-10-00
CLUTCH PLATE KIT *{AP}*
$177.30¢88 648
1
#2
1KT-16321-00-00
PLATE, FRICTION
$16.41¢8 205
1
#3
5DH-16321-00-00
PLATE, FRICTION
$23.17¢11 586
1
#4
3XJ-16324-10-00
PLATE, CLUTCH 1
$13.43¢6 716
1
#5
90501-23598-00
SPRING, COMPRESSION
$6.22¢3 111
1
#6
4D3-15461-00-00
GASKET, CRANKCASE CO
$22.61¢11 305
1
#7
B1U-W001M-00-00
FRICTION PLATE KIT
$88.07¢44 034
1
#8
1KT-16321-00-00
PLATE, FRICTION
$16.41¢8 205
1
#9
5DH-16321-00-00
PLATE, FRICTION
$23.17¢11 586
1
#10
B1U-W003B-00-00
FORK SEALS KIT
$57.66¢28 830
1
#11
5JX-23171-00-00
PISTON, FRONT FORK
$22.62¢11 310
1
#12
5JX-23125-00-00
METAL, SLIDE 1
$19.14¢9 568
1
#13
5JX-23145-00-00
OIL SEAL
$14.34¢7 170
1
#14
4A1-23156-00-00
RING, SNAP
$5.21¢2 605
1
#15
5JX-23144-00-00
SEAL, DUST
$15.65¢7 826
1
#16
1N1-23158-00-00
GASKET
$7.11¢3 553
1
#17
240-23114-00-00
GASKET
$13.48¢6 739
1
#18
B1U-W000B-00-00
STEERING BEARING KIT
$116.29¢58 144
1
#19
93332-00079-00
BEARING TAPRD
$69.70¢34 851
1
#20
B1U-W001A-00-00
CHAIN & SPROCKET KIT
$389.71¢194 856
1
#21
5XT-17460-00-00
SPROCKET, DRIVE
$23.48¢11 742
1
#22
90215-23265-00
WASHER,LOCK
$3.22¢1 610
1
#23
90179-18552-00
NUT,SPEC'L SHAPE
$17.30¢8 648
1
#24
3C5-25448-10-00
SPROCKET, DRIVEN (48T)
$47.84¢23 920
1
#25
94581-36128-00
CHAIN (DID428VS3 128LE) | DAIDO
$167.05¢83 524
1
