FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

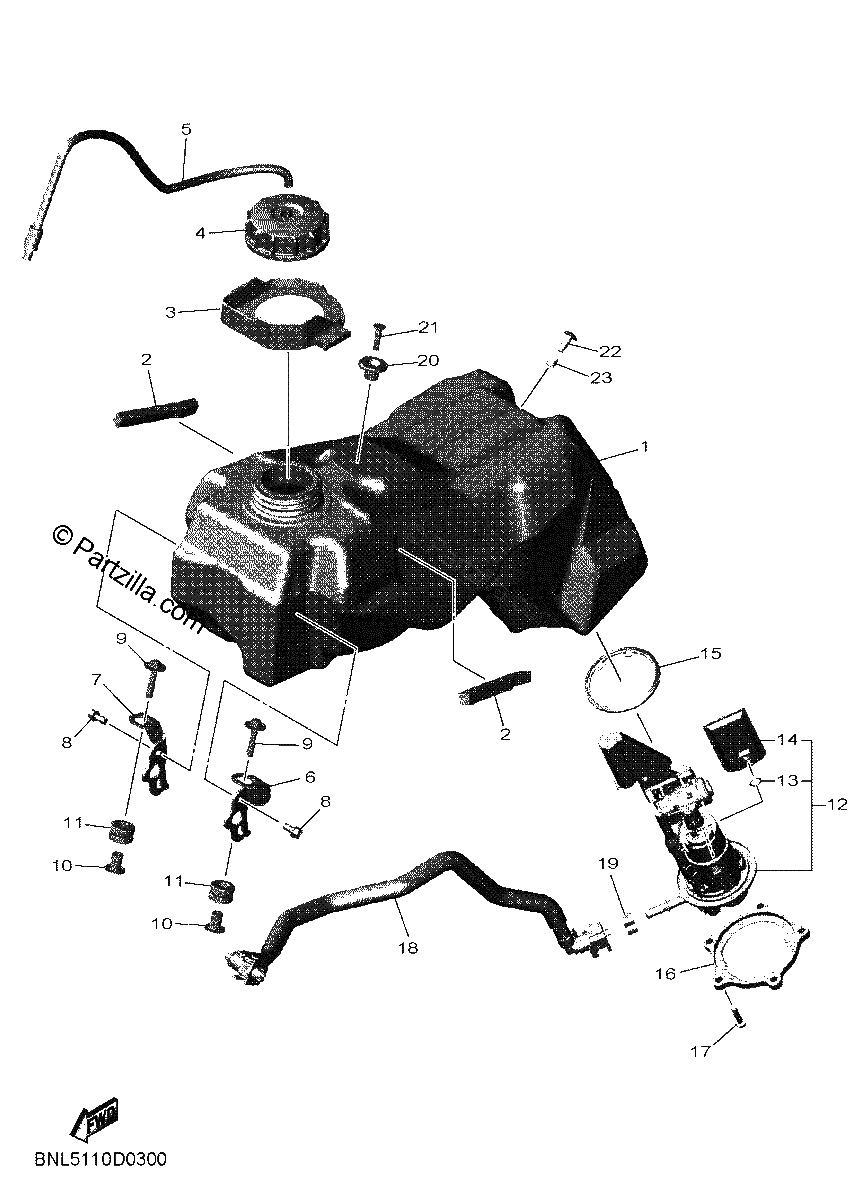

Diagrama de FUEL TANK

Repuestos

#1
BNK-24110-10-00
FUEL TANK COMP
$1255.79¢627 894
1
#2
90520-10045-00
DAMPER, PLATE
$2.68¢1 340
1
#3
BNK-24188-00-00
MOLD, FUEL TANK
$56.09¢28 043
1
#4
BR9-24610-00-00
CAP ASSY
$70.83¢35 414
1
#5
90445-08050-00
HOSE
$8.14¢4 071
1
#6
BNK-24115-00-00
STAY, FUEL TANK 1
$16.16¢8 079
1
#7
BNK-24116-00-00
STAY, FUEL TANK 2
$16.70¢8 349
1
#8
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$0.99¢494
1
#9
90119-06262-00
BOLT, WITH WASHER
$6.88¢3 439
1
#10
90387-06136-00
COLLAR
$6.22¢3 111
1
#11
90480-14038-00
GROMMET
$15.42¢7 711
1
#12
BNK-13907-00-00
FUEL PUMP COMP
$647.44¢323 719
1
#13
3C1-24512-00-00
Gasket
$26.45¢13 225
1
#14
B3J-13915-00-00
FILTER
$27.83¢13 915
1
#15
B3J-2414G-00-00
SEAL
$17.08¢8 539
1
#16
B3J-24491-00-00
Bracket, Fuel Pump
$66.99¢33 494
1
#17
90110-05058-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#18
BNK-13971-00-00
PIPE, FUEL 1
$107.28¢53 642
1
#19
33D-24135-00-00
CLAMP 1
$9.56¢4 778
1
#20
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
1
#21
90151-06005-00
)SCREW, CROSSRECESS (8G6)
$7.87¢3 933
1
#22
90149-06021-00
SCREW
$6.83¢3 415
1
#23
90387-06284-00
Collar
$5.58¢2 789
1
