REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

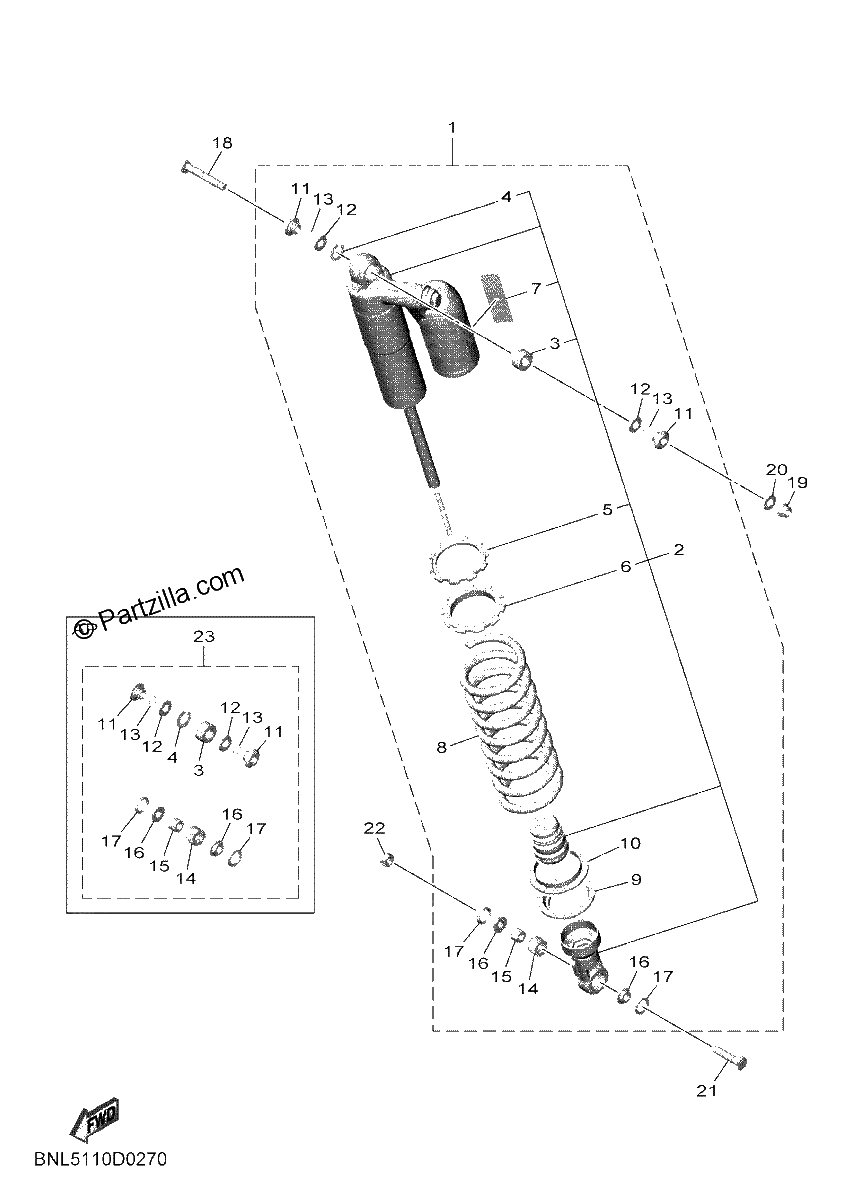

Diagrama de REAR SUSPENSION

Repuestos

#1
BNK-22200-10-00
SHOCK ABSORBER ASSY, REAR
$1151.14¢575 569
1
#2
BNK-22201-10-00
DAMPER SUB ASSY
$988.99¢494 494
1
#3
4JX-22226-00-00
BUSH,RR SHK ASY
$53.77¢26 887
1
#4
5DH-23183-00-00
Circlip
$5.40¢2 702
1
#5
33D-22234-00-00
GUIDE, SPRING 3
$39.91¢19 953
1
#6
1SL-22213-00-00
SEAT, SPRING UPPER
$17.12¢8 562
1
#7
4AA-22259-80-00
LABEL, WARNING
$13.63¢6 814
1
#8
BR9-22212-A0-00
SPRING (K=56 SILVER)
$381.52¢190 762
1
#9
33D-22214-00-00
GUIDE, SPRING 1
$59.77¢29 883
1
#10
33D-22224-00-00
GUIDE, SPRING 2
$23.82¢11 908
1
#11
1C3-22253-50-00
COLLAR, DISTANCE
$48.00¢24 001
1
#12
3JE-22475-00-00
SEAL,DUST LOW.
$11.59¢5 796
1
#13
4EW-22474-00-00
SEAL, RING
$6.51¢3 254
1
#14
5UN-22176-00-00
BEARING
$30.57¢15 283
1
#15
5MV-22184-00-00
Bush
$23.48¢11 742
1
#16
1C3-22253-L1-00
COLLAR, DISTANCE
$49.04¢24 518
1
#17
5NY-22475-00-00
SEAL, dust
$12.21¢6 106
1
#18
5XE-22242-01-00
BOLT 2 (replaces 5XE-22242-00-00)
$5.76¢2 881
1
#19
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#20
92902-10200-00
WASHER
$3.14¢1 570
1
#21
5NY-22241-00-00
BOLT 1
$11.17¢5 583
1
#22
90185-10012-00
NUT, SELF-LOCKING
$3.27¢1 633
1
#23
1SS-W002G-00-00
SHOCK BEARING KIT
$193.72¢96 859
1
