CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

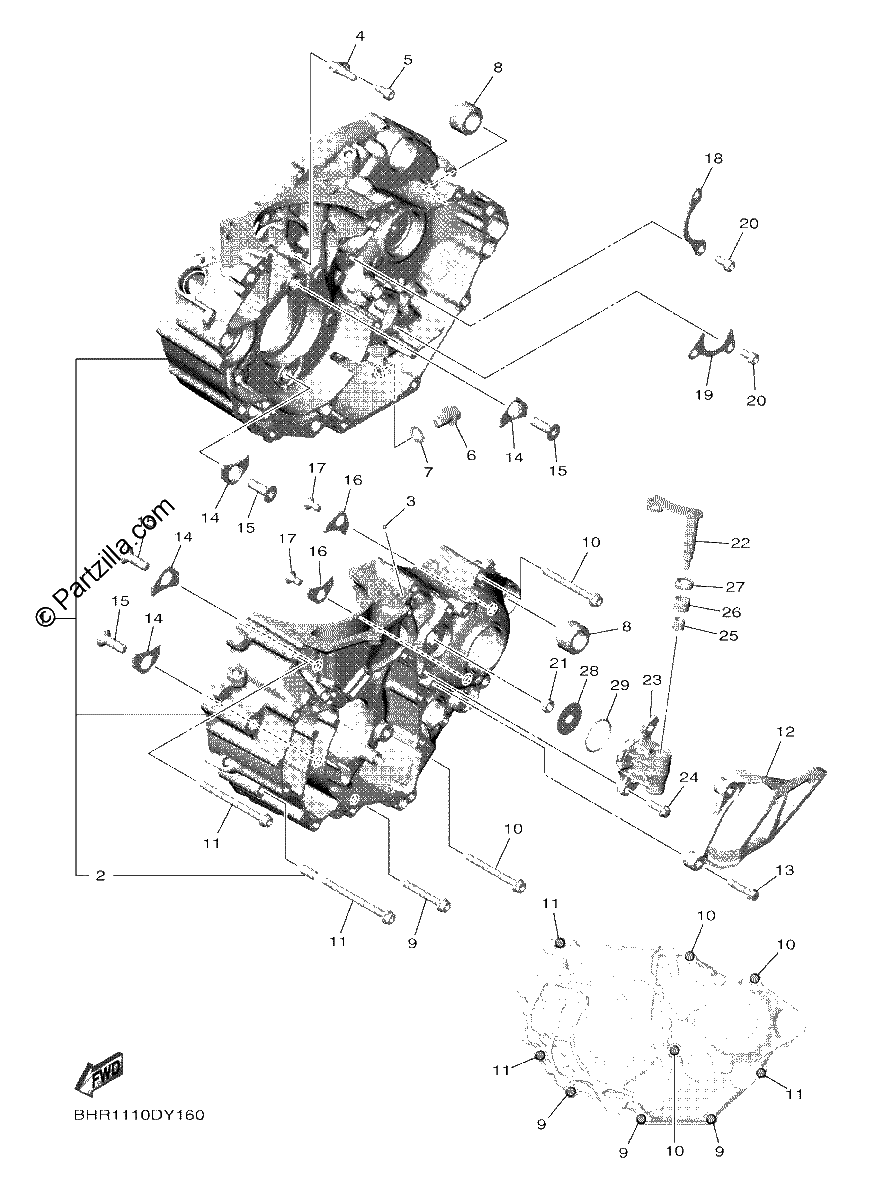

Diagrama de CRANKCASE

Repuestos

#1
BHR-15100-07-00
CRANKCASE ASSY
$1900.94¢950 469
1
#2
99530-08016-00
PIN, DOWEL
$6.18¢3 088
1
#3
BHR-15148-00-00
NOZZLE 2
$7.46¢3 732
1
#4
BHR-15155-00-00
NOZZLE 3
$32.26¢16 129
1
#5
90110-06182-00
BOLT
$6.75¢3 375
1
#6
95E32-10016-00
BOLT, FLANGE DEEP RECESS
$1.45¢724
1
#7
90430-10188-00
Gasket
$6.77¢3 387
1
#8
90387-17020-00
COLLAR
$18.26¢9 131
1
#9
90110-06391-00
BOLT, HEXAGON SOCKET HEAD
$1.94¢972
1
#10
90110-06363-00
BOLT, HEXAGON SOCKET HEAD
$2.75¢1 374
1
#11
90110-06392-00
BOLT, HEXAGON SOCKET HEAD
$3.44¢1 719
1
#12
BHR-15421-01-00
COVER, CRANKCASE 2
$24.24¢12 121
1
#13
90105-06189-00
Bolt, Flange
$6.75¢3 375
1
#14
18P-15383-00-00
PLATE, BEARING COVER
$7.38¢3 691
1
#15
90151-08009-00
SCREW, COUNTERSUNK
$6.07¢3 036
1
#16
4JT-15381-01-00
PLATE, BEARING COV
$11.53¢5 767
1
#17
90151-06053-00
SCREW
$6.99¢3 496
1
#18
5NL-15388-00-00
PLATE, BEARING COVER
$7.34¢3 669
1
#19
33D-18562-00-00
PLATE, STOPPER 2
$4.54¢2 271
1
#20
90110-06182-00
BOLT
$6.75¢3 375
1
#21
93104-06033-00
OIL SEAL
$6.51¢3 254
1
#22
BHR-16381-00-00
PUSH LEVER COMP
$70.46¢35 230
1
#23
BHR-16386-00-00
PIECE, CLUTH PUSH
$91.72¢45 862
1
#24
90105-06187-00
BOLT, FLANGE
$3.65¢1 823
1
#25
93317-106B4-00
BEARING
$6.92¢3 461
1
#26
93317-11096-00
BEARING
$21.90¢10 948
1
#27
93102-10008-00
Oil Seal
$5.09¢2 547
1
#28
90201-08037-00
WASHER, PLATE
$4.05¢2 024
1
#29
93210-28543-00
O-RING
$3.10¢1 553
1
