REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

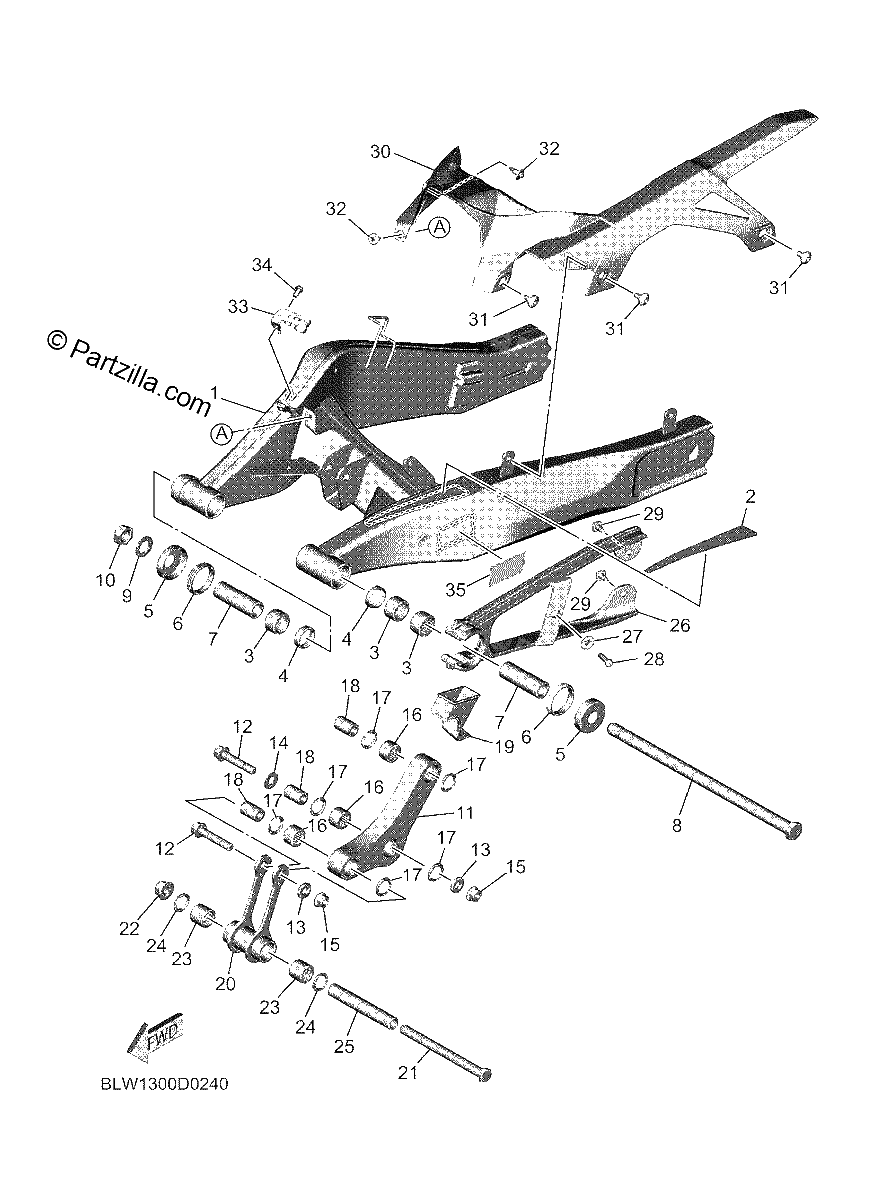

Diagrama de REAR ARM

Repuestos

#1
BLW-22110-00-00
REAR ARM COMP.
$831.24¢415 619
1
#2
BU2-22358-00-00
SEAL 1
$8.73¢4 363
1
#3
93317-22262-00
BEARING
$40.65¢20 325
1
#4
93106-22019-00
OIL SEAL,DD-TYPE
$11.13¢5 563
1
#5
30X-2219X-00-00
COVER
$17.01¢8 506
1
#6
93108-35004-00
OIL SEAL (35-41-8)
$14.98¢7 488
1
#7
90380-16158-00
BUSH,SOLID
$33.75¢16 875
1
#8
BW3-22141-00-00
SHAFT, PIVOT
$51.11¢25 556
1
#9
90201-164H4-00
WASHER,PLATE
$9.55¢4 775
1
#10
90185-16002-00
NUT, SELF-LOCKING
$18.00¢9 000
1
#11
1WS-2217A-00-00
ARM, RELAY
$112.71¢56 356
1
#12
90105-10498-00
BOLT, FLANGE
$14.51¢7 256
1
#13
90387-10132-00
COLLAR
$6.63¢3 313
1
#14
92902-10200-00
WASHER
$3.41¢1 706
1
#15
90185-10011-00
NUT, SELF-LOCKING
$4.68¢2 338
1
#16
93315-31758-00
BEARING
$41.35¢20 675
1
#17
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#18
90387-1012A-00
COLLAR
$21.18¢10 588
1
#19
1WS-22189-00-00
Boot, Rubber
$8.60¢4 300
1
#20
1WS-2217F-00-00
ROD, CONNECTING 1
$71.29¢35 644
1
#21
90101-12079-00
BOLT
$9.96¢4 981
1
#22
95602-12200-00
NUT, SELF-LOCKING
$4.55¢2 275
1
#23
93317-31771-00
BEARING
$37.88¢18 938
1
#24
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#25
1WS-22184-00-00
Bush
$24.64¢12 319
1
#26
BLW-22151-00-00
SEAL, GUARD
$43.19¢21 594
1
#27
90387-06170-00
COLLAR
$7.43¢3 713
1
#28
92012-06020-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#29
90269-07007-00
RIVET
$4.00¢2 000
1
#30
BLW-21650-00-00
REAR FENDER COMP.
$58.39¢29 194
1
#31
90109-06346-00
BOLT
$4.00¢2 000
1
#32
90269-07007-00
RIVET
$4.00¢2 000
1
#33
BLW-2588F-00-00
HOLDER, BRAKE HOSE 5
$15.85¢7 925
1
#34
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#35
BLW-21668-10-00
LABEL, TIRE
$3.43¢1 713
1
