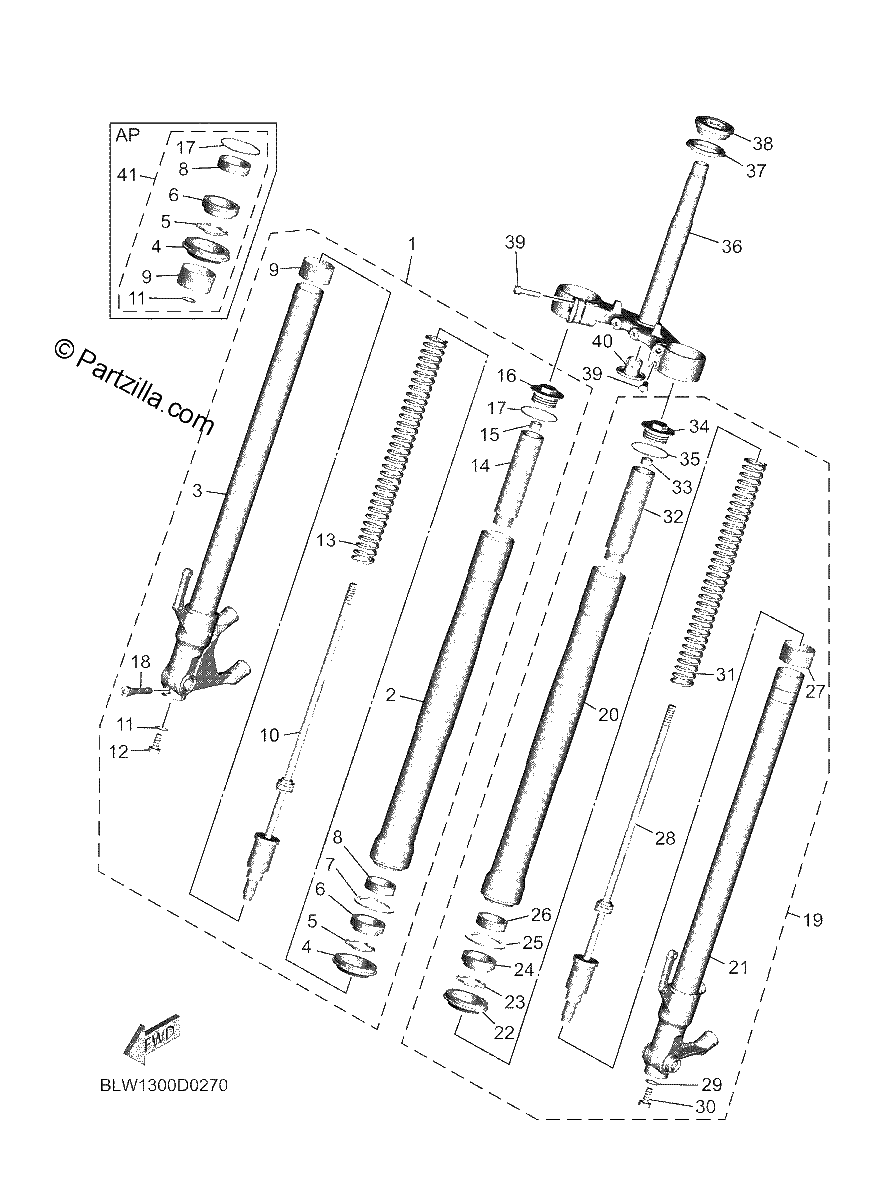

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H)
$626.74¢313 369
#2
TUBE, OUTER (LH)
$439.50¢219 748
#3
INNER TUBE COMP2
$408.92¢204 459
#4
SEAL, DUST
$21.36¢10 678
#5
RING, SNAP
$7.24¢3 622
#6
OIL SEAL
$26.59¢13 294
#7
WASHER, OIL SEAL
$24.18¢12 092
#8
METAL, SLIDE 1
$13.57¢6 785
#9
METAL, SLIDE
$22.33¢11 167
#10
CYLINDER COMP, FRONT FORK
$337.15¢168 573
#11
GASKET | (KYB)
$15.72¢7 860
#12
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#13
SPRING, FRONT FORK
$92.91¢46 454
#14
SPACER
$15.04¢7 521
#15
NUT
$7.28¢3 640
#16
BOLT, CAP
$71.21¢35 604
#17
O-RING
$7.56¢3 778
#18
BOLT (3JP)
$5.75¢2 875
#19
FRONT FORK ASSY (L.H)
$661.24¢330 619
#20
TUBE, OUTER (LH)
$439.50¢219 748
#21
INNER TUBE COMP1
$409.56¢204 781
#22
SEAL, DUST
$21.36¢10 678
#23
RING, SNAP
$7.24¢3 622
#24
OIL SEAL
$26.59¢13 294
#25
WASHER, OIL SEAL
$24.18¢12 092
#26
METAL, SLIDE 1
$13.57¢6 785
#27
METAL, SLIDE
$22.33¢11 167
#28
CYLINDER COMP, FRONT FORK
$337.15¢168 573
#29
GASKET | (KYB)
$15.72¢7 860
#30
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#31
SPRING, FRONT FORK
$92.91¢46 454
#32
SPACER
$15.04¢7 521
#33
NUT
$7.28¢3 640
#34
BOLT, CAP
$71.21¢35 604
#35
O-RING
$7.56¢3 778
#36
UNDER BRACKET COMP.
$463.10¢231 552
#37
SEAL, STEERING
$23.48¢11 742
#38
BEARING
$60.89¢30 446
#39
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
#40
COVER, UNDER 1
$13.48¢6 739
#41
FORK SEALS KIT *{AP}*
$60.25¢30 124
