ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

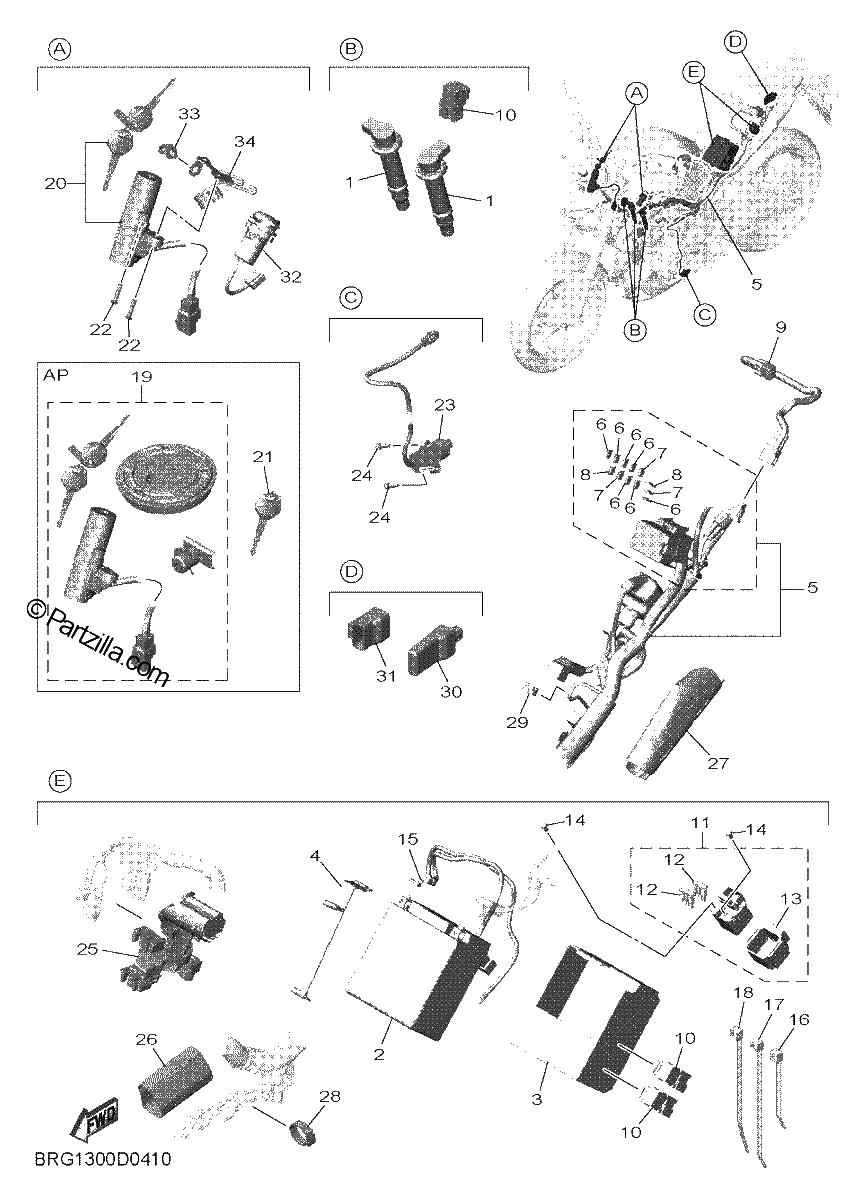

Diagrama de ELECTRICAL 1

Repuestos

#1
B1X-82310-00-00
IGNITION COIL ASSY
$73.83¢36 913
1
#2
1WD-H2100-01-00
BATTERY ASSY (GS GTZ8V)
$125.85¢62 925
1
#3
1WD-H2121-00-00
PAD, BATTERY
$12.24¢6 119
1
#4
BDJ-H2131-00-00
BAND, BATTERY
$2.50¢1 250
1
#5
BRG-H2590-20-00
WIRE HARNESS ASSY
$458.09¢229 044
1
#6
BRA-H2151-00-00
FUSE (75A)
$2.80¢1 400
1
#7
BRA-H2151-10-00
FUSE (15A)
$2.80¢1 400
1
#8
BRA-H2151-30-00
FUSE (30A)
$2.80¢1 400
1
#9
BRA-H2509-00-00
WIRE, SUB LEAD
$16.07¢8 038
1
#10
1WD-H1950-00-00
RELAY ASSY
$57.53¢28 763
1
#11
1WD-H1940-00-00
STARTER RELAY ASSY
$35.92¢17 963
1
#12
1WD-H2151-01-00
FUSE (30A-BL) (replaces 1WD-H2151-00-00)
$0.84¢419
1
#13
1WD-H2155-00-00
BAND
$2.42¢1 213
1
#14
91312-05008-00
BOLT
$6.19¢3 094
1
#15
BRA-H2116-00-00
WIRE, MINUS LEAD
$37.69¢18 844
1
#16
1UA-82591-00-00
BAND
$4.91¢2 456
1
#17
90464-70800-00
CLAMP
$1.06¢531
1
#18
90464-36005-00
CLAMP
$1.20¢600
1
#19
BRG-XH250-00-00
MAIN SW. STRG. LOCK SUB ASSY
$266.02¢133 013
1
#20
BRG-H2501-00-00
MAIN SWITCH STEERING LOCK
$138.10¢69 050
1
#21
1WD-H2511-09-00
BLANK KEY | AP
$18.43¢9 213
1
#22
90109-06282-00
BOLT
$4.05¢2 025
1
#23
BRA-H2566-00-00
SWITCH, SIDE STAND
$39.49¢19 744
1
#24
91317-05018-00
BOLT
$1.29¢644
1
#25
BRA-H1662-00-00
COVER, CONNECTER
$16.77¢8 388
1
#26
1WD-H2591-00-00
BAND
$3.02¢1 513
1
#27
BRA-F179E-00-00
BAND
$5.99¢2 994
1
#28
90464-26001-00
Clamp
$1.85¢925
1
#29
90464-13227-00
Clamp
$7.88¢3 938
1
#30
B6Y-H5810-11-00
COMMUNICATION CONT. UNIT ASSY
$132.84¢66 419
1
#31
BDJ-H2591-00-00
BAND
$1.81¢906
1
#32
BRG-H21E0-01-00
USB ASSY
$67.75¢33 875
1
#33
90464-30009-00
CLAMP
$3.89¢1 944
1
#34
B9T-F8358-00-00
STAY 3
$11.81¢5 906
1
