FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

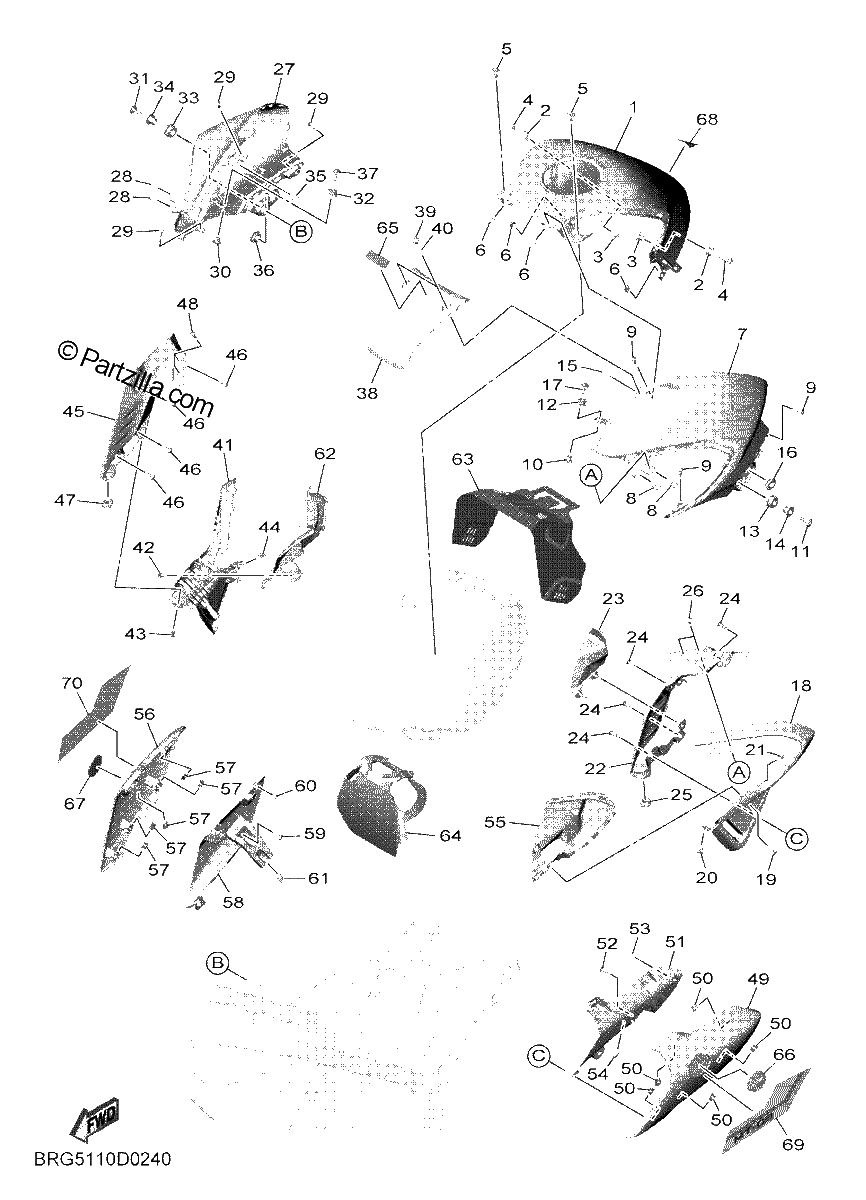

Diagrama de FUEL TANK 2

Repuestos

#1
B9T-F41B1-00-P3
COVER, TANK (PASTEL DARK GRAY) *{UR FOR PGD,MDNM8}*
$44.76¢22 379
1
#2
90480-12808-00
GROMMET
$2.71¢1 357
1
#3
90387-06899-00
COLLAR
$2.70¢1 351
1
#4
90119-06309-00
BOLT, WITH WASHER
$1.90¢949
1
#5
90109-068B2-00
BOLT (B9B1)
$0.45¢224
1
#6
90183-05042-00
NUT, SPRING
$1.15¢575
1
#7
B9T-F4129-00-P4
COVER, SIDE 1
$27.83¢13 915
1
#8
90183-05042-00
NUT, SPRING
$1.15¢575
1
#9
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#10
90387-06899-00
COLLAR
$2.70¢1 351
1
#11
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
1
#12
90480-12808-00
GROMMET
$2.71¢1 357
1
#13
90480-17007-00
GROMMET
$6.92¢3 461
1
#14
90387-10107-00
COLLAR
$4.98¢2 490
1
#15
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#16
90480-01559-00
Grommet
$5.27¢2 633
1
#17
90119-05020-00
BOLT, WITH WASHER
$5.86¢2 932
1
#18
B9T-F838N-00-00
DUCT 1
$11.73¢5 865
1
#19
90160-05009-00
SCREW, ROUND TAPPI
$0.47¢236
1
#20
90269-06816-00
RIVET
$1.58¢788
1
#21
90183-05042-00
NUT, SPRING
$1.15¢575
1
#22
BRG-F137K-00-00
GUIDE, AIR 3
$11.17¢5 583
1
#23
BRG-F4217-00-00
COVER
$5.78¢2 892
1
#24
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#25
90480-01559-00
Grommet
$5.27¢2 633
1
#26
90160-05009-00
SCREW, ROUND TAPPI
$0.47¢236
1
#27
B9T-F4139-00-P4
COVER, SIDE 2
$30.44¢15 220
1
#28
90183-05042-00
NUT, SPRING
$1.15¢575
1
#29
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#30
90387-06899-00
COLLAR
$2.70¢1 351
1
#31
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
1
#32
90480-12808-00
GROMMET
$2.71¢1 357
1
#33
90480-17007-00
GROMMET
$6.92¢3 461
1
#34
90387-10107-00
COLLAR
$4.98¢2 490
1
#35
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#36
90480-01559-00
Grommet
$5.27¢2 633
1
#37
90119-05020-00
BOLT, WITH WASHER
$5.86¢2 932
1
#38
B9T-F171A-00-P4
COVER, TOP *{UR FOR MDNM8}*
$14.54¢7 268
1
#39
90111-05056-00
BOLT,HEX. SOCKET B
$2.39¢1 196
1
#40
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#41
B9T-F838R-00-00
DUCT 2
$11.73¢5 865
1
#42
90160-05009-00
SCREW, ROUND TAPPI
$0.47¢236
1
#43
90269-06816-00
RIVET
$1.58¢788
1
#44
90183-05042-00
NUT, SPRING
$1.15¢575
1
#45
BRG-F137L-00-00
GUIDE, AIR 4
$11.56¢5 779
1
#46
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#47
90480-01559-00
Grommet
$5.27¢2 633
1
#48
90160-05009-00
SCREW, ROUND TAPPI
$0.47¢236
1
#49
B9T-F137W-00-P5
SCOOP, AIR 1 *{UR FOR MDNM8}*
$27.13¢13 564
1
#50
90183-05042-00
NUT, SPRING
$1.15¢575
1
#51
B9T-F836K-00-00
PANEL, INNER 1
$11.26¢5 629
1
#52
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#53
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#54
90183-05042-00
NUT, SPRING
$1.15¢575
1
#55
BRG-F837N-00-00
GRILL, AIR INTAKE 1
$4.19¢2 093
1
#56
B9T-F137X-00-P5
SCOOP, AIR 2 *{UR FOR MDNM8}*
$27.77¢13 886
1
#57
90183-05042-00
NUT, SPRING
$1.15¢575
1
#58
B9T-F836L-00-00
PANEL, INNER 2
$11.26¢5 629
1
#59
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#60
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#61
90183-05042-00
NUT, SPRING
$1.15¢575
1
#62
BRG-F837R-00-00
GRILL, AIR INTAKE 2
$4.19¢2 093
1
#63
BRG-E449E-00-00
COVER, AIR CLEANER
$20.25¢10 126
1
#64
BRA-F1642-00-00
GUARD, FLAP
$9.87¢4 934
1
#65
1TP-2118K-A2-00
. LABEL, CAUTION
$6.59¢3 295
1
#66
1WD-F413B-01-00
TUNING FORK MARK, 3D
$9.72¢4 859
1
#67
1WD-F413B-01-00
TUNING FORK MARK, 3D
$9.72¢4 859
1
#68
B04-F4254-C1-00
GRAPHIC, FUEL TANK 7 *{UR FOR MDNM8}*
$1.39¢696
1
#69
B6W-F8391-50-00
.. GRAPHIC 1
$8.57¢4 284
1
#70
B6W-F8392-50-00
.. GRAPHIC 2
$9.91¢4 956
1
