REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

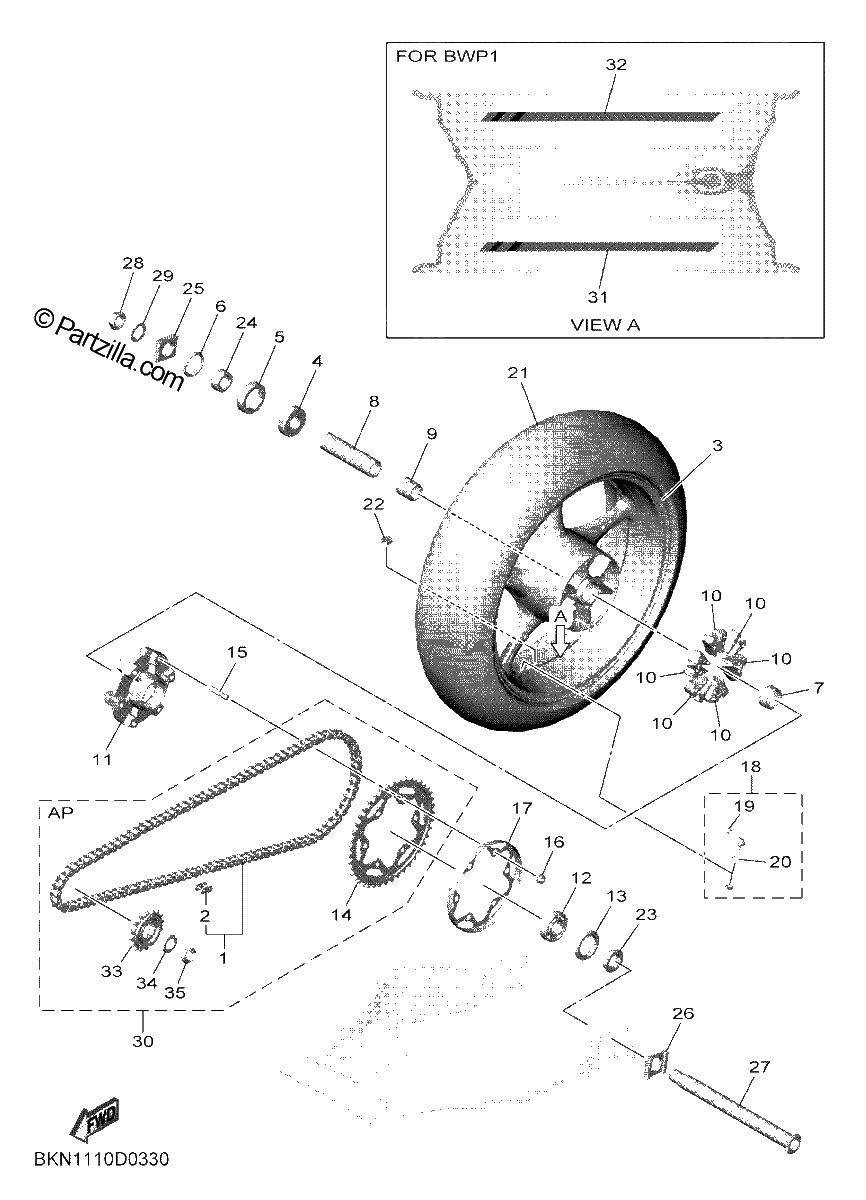

Diagrama de REAR WHEEL

Repuestos

#1
94A40-25110-00
SET, CHAIN
$293.80¢146 901
1
#2
94682-5202R-00
JOINT, CHAIN (DID525HV3 ZJ)
$16.70¢8 349
1
#3
BKN-25338-00-P0
CAST WHEEL, REAR
$719.89¢359 944
1
#4
93306-20531-00
BEARING
$48.71¢24 357
1
#5
BN6-2538E-00-00
Nut, Adjusting
$93.70¢46 851
1
#6
93106-40001-00
OIL SEAL
$11.11¢5 555
1
#7
93317-43580-00
BEARING
$69.60¢34 799
1
#8
5PW-25317-00-00
SPACER, BEARING
$54.81¢27 404
1
#9
BKN-25383-00-00
COLLAR, WHEEL
$49.22¢24 610
1
#10
5SL-25364-00-00
DAMPER
$40.01¢20 004
1
#11
B60-25366-00-00
CLUTCH, HUB
$287.06¢143 532
1
#12
93306-20531-00
BEARING
$48.71¢24 357
1
#13
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#14
B67-25443-00-00
SPROCKET, DRIVEN (43T)
$166.61¢83 306
1
#15
90116-10048-00
BOLT, STUD
$25.00¢12 500
1
#16
90185-10011-00
NUT, SELF-LOCKING
$4.30¢2 151
1
#17
B67-2537W-10-00
BRACKET 1
$24.48¢12 242
1
#18
93900-00045-00
VALVE, RIM
$24.21¢12 104
1
#19
B5Y-25188-00-00
CAP
$7.79¢3 893
1
#20
B5Y-251H4-00-00
O-RING
$8.56¢4 278
1
#21
94118-17093-00
TIRE (180/55ZR17M/C 73W)
$375.67¢187 835
1
#22
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#22
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#22
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#23
90387-28029-00
Collar
$28.77¢14 386
1
#24
90387-28017-00
COLLAR
$33.66¢16 830
1
#25
4XV-25388-00-00
PULLER, CHAIN 1
$43.56¢21 781
1
#26
4XV-25389-00-00
PULLER, CHAIN 2
$36.32¢18 158
1
#27
4XV-25381-10-00
AXLE, WHEEL
$122.24¢61 122
1
#28
90185-24002-00
NUT, SELF-LOCKING
$8.56¢4 278
1
#29
90201-25027-00
WASHER, PLATE
$4.23¢2 116
1
#30
BKN-W001A-10-00
CHAIN & SPROCKET KIT
$438.28¢219 138
1
#33
2CR-17460-00-00
SPROCKET, DRIVE
$58.28¢29 141
1
#34
90208-22002-00
WASHER, CONICAL SPRING
$18.39¢9 194
1
#35
90179-22018-00
NUT
$26.16¢13 081
1
