TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

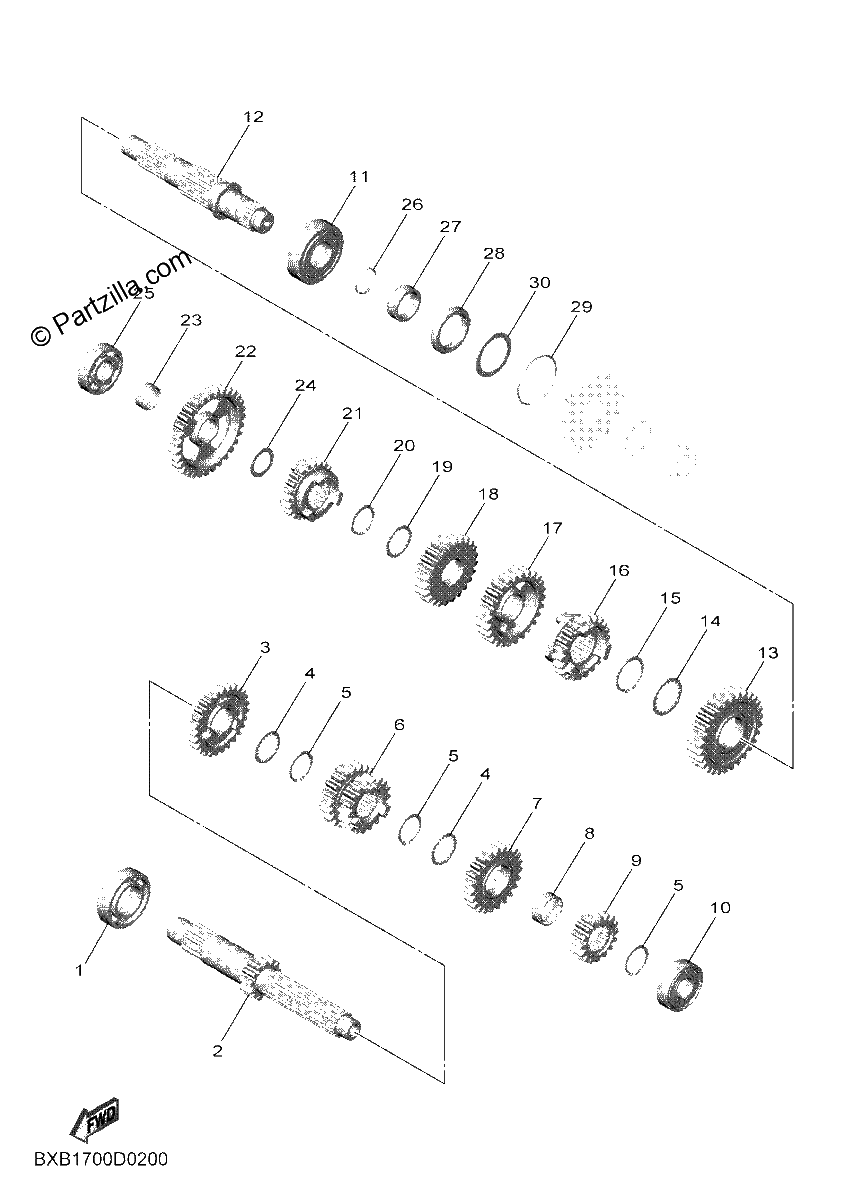

Diagrama de TRANSMISSION

Repuestos

#1
93306-00525-00
BEARING
$24.81¢12 406
1
#2
BAJ-17411-00-00
Axle, Main
$151.31¢75 656
1
#3
BAJ-17161-10-00
GEAR, 6TH PINION (27T)
$109.86¢54 931
1
#4
90209-20008-00
WASHER
$10.21¢5 106
1
#5
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#6
BAJ-17131-10-00
GEAR, 3RD PINION (18T/21T)
$245.15¢122 575
1
#7
BAJ-17151-10-00
GEAR, 5TH PINION (23T)
$97.76¢48 881
1
#8
90387-20006-00
Collar
$31.65¢15 825
1
#9
BAJ-17121-00-00
GEAR, 2ND PINION
$120.49¢60 244
1
#10
93306-20336-00
BEARING
$32.40¢16 200
1
#11
93306-27209-00
BEARING
$82.17¢41 088
1
#12
BAJ-1742A-00-00
DRIVE AXLE ASSY.,2
$212.03¢106 013
1
#13
BAJ-17221-00-00
GEAR, 2ND WHEEL
$141.72¢70 863
1
#14
90209-23012-00
WASHER
$5.99¢2 994
1
#15
93410-26067-00
CIRCLIP,S-TYPE
$8.84¢4 419
1
#16
BAJ-17251-10-00
GEAR, 5TH WHEEL (22T)
$163.94¢81 969
1
#17
BAJ-17231-00-00
GEAR, 3RD WHEEL
$108.09¢54 044
1
#18
BAJ-17241-00-00
GEAR, 4TH WHEEL
$103.45¢51 725
1
#19
90209-20008-00
WASHER
$10.21¢5 106
1
#20
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#21
BAJ-17261-10-00
GEAR, 6TH WHEEL (22T)
$153.98¢76 988
1
#22
BAJ-17211-00-00
GEAR, 1ST WHEEL
$104.86¢52 431
1
#23
90387-17012-00
COLLAR
$16.48¢8 238
1
#24
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#25
93306-20351-00
BEARING
$40.65¢20 325
1
#26
93210-196A4-00
O-RING
$2.33¢1 163
1
#27
90387-22036-00
Collar
$22.10¢11 050
1
#28
93102-28012-00
Oil Seal
$17.48¢8 738
1
#29
93450-40N50-00
Circlip
$1.47¢737
1
#30
90201-29M00-00
WASHER,PLATE
$6.47¢3 238
1
