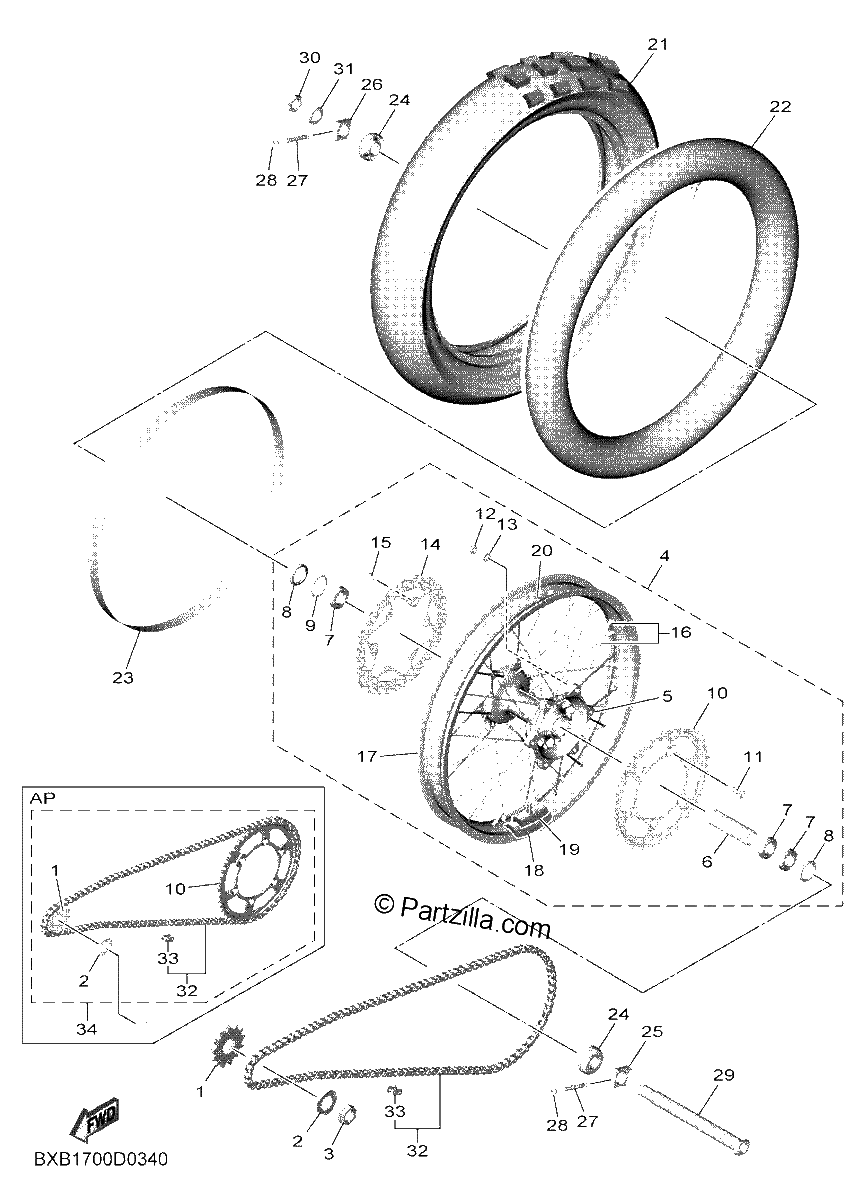

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SPROCKET, DRIVE (13T)
$22.69¢11 344
#2
Washer, Lock
$7.30¢3 650
#3
Nut
$16.34¢8 169
#4
REAR WHEEL SUB-ASSY
$676.25¢338 125
#5
HUB, REAR
$265.96¢132 981
#6
SPACER, bearing
$46.33¢23 163
#7
BEARING
$25.53¢12 763
#8
. OIL SEAL
$19.44¢9 719
#9
Circlip
$7.43¢3 713
#10
SPROCKET, DRIVEN (52T) | AP
$98.20¢49 100
#10
SPROCKET, DRIVEN (50T) | STD
$71.35¢35 675
#10
SPROCKET, DRIVEN (51T) | STD
$107.88¢53 938
#10
SPROCKET, DRIVEN (48T) | AP
$53.46¢26 731
#11
bolt
$3.39¢1 694
#12
NUT, SELF-LOCKING
$7.16¢3 581
#13
WASHER, plate
$6.88¢3 438
#14
DISK, REAR BRAKE 2
$139.01¢69 506
#15
SCREW, COUNTERSUNK
$3.17¢1 588
#16
SPOKE SET, REAR
$147.84¢73 919
#17
RIM (215-18)
$457.31¢228 656
#18
SPACER,BEAD
$39.71¢19 856
#19
Damper
$7.91¢3 956
#20
GROMMET
$8.06¢4 031
#21
TIRE (110/100-18 64M MX33)
$212.49¢106 244
#22
TUBE (110-140/80-100-18 M/C) | BRIDGESTONE
$39.67¢19 838
#23
BAND, RIM (25-18) | DUNLOP
$19.06¢9 531
#24
COLLAR ASSY
$41.14¢20 569
#25
PULLER, CHAIN 1
$34.84¢17 419
#26
PULLER, CHAIN 2
$31.69¢15 844
#27
bolt
$8.01¢4 006
#28
Nut
$6.23¢3 113
#29
AXLE, WHEEL
$94.56¢47 281
#30
NUT, SELF-LOCKING
$32.30¢16 150
#31
WASHER, plate
$7.03¢3 513
#32
CHAIN
$266.36¢133 181
#33
JOINT, CHAIN
$17.09¢8 544
#34
CHAIN & SPROCKET KIT
$235.15¢117 575
