WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

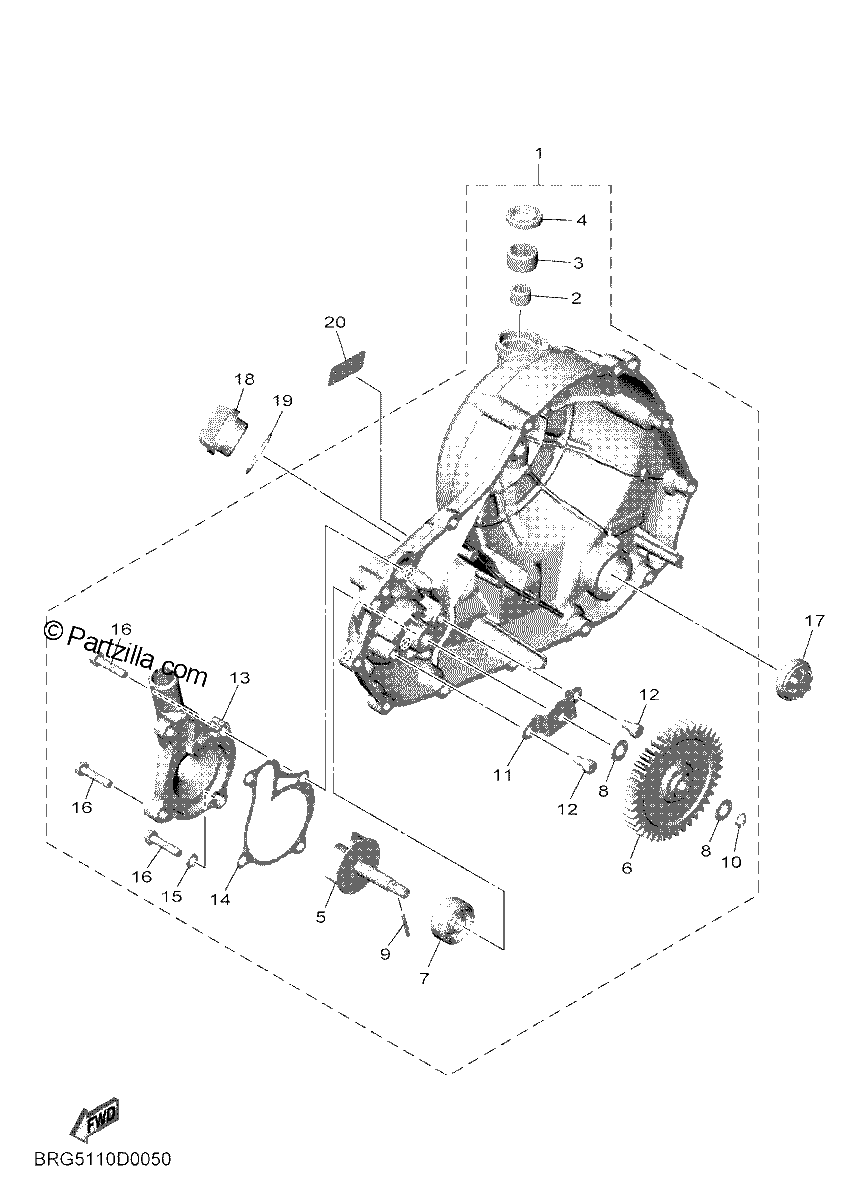

Diagrama de WATER PUMP

Repuestos

#1
BRA-E2420-00-00
WATER PUMP ASSY
$265.32¢132 663
1
#2
93317-11096-00
BEARING
$23.80¢11 900
1
#3
93315-21570-00
BEARING
$17.49¢8 744
1
#4
93102-15805-00
OIL SEAL
$7.13¢3 563
1
#5
1WD-E2450-00-00
IMPELLER SHAFT ASSY
$67.60¢33 800
1
#6
1WD-E2453-00-00
GEAR
$69.03¢34 513
1
#7
33S-E2223-00-00
SEAL
$70.92¢35 463
1
#8
33S-E2456-00-00
WASHER
$1.99¢994
1
#9
1WD-E319L-00-00
PIN, STRAIGHT
$1.74¢869
1
#10
99009-08400-00
CIRCLIP
$1.75¢875
1
#11
1WD-E2681-00-00
PLATE
$54.13¢27 063
1
#12
91317-06010-00
BOLT (4MY) (replaces 90110-06065-00)
$8.24¢4 119
1
#13
BRA-E2422-00-00
COVER, HOUSING
$31.25¢15 625
1
#14
1WD-E2428-00-00
GASKET, HOUSING COVER 2
$4.40¢2 200
1
#15
90430-06014-00
GASKET
$8.25¢4 125
1
#16
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#17
2H7-15361-00-00
GAUGE, LEVEL
$102.81¢51 406
1
#18
1WD-E5362-00-00
PLUG, OIL LEVEL
$7.31¢3 656
1
#19
93210-27807-00
O-RING
$1.46¢731
1
#20
BRA-E548B-00-00
OIL, LABEL
$1.99¢994
1
