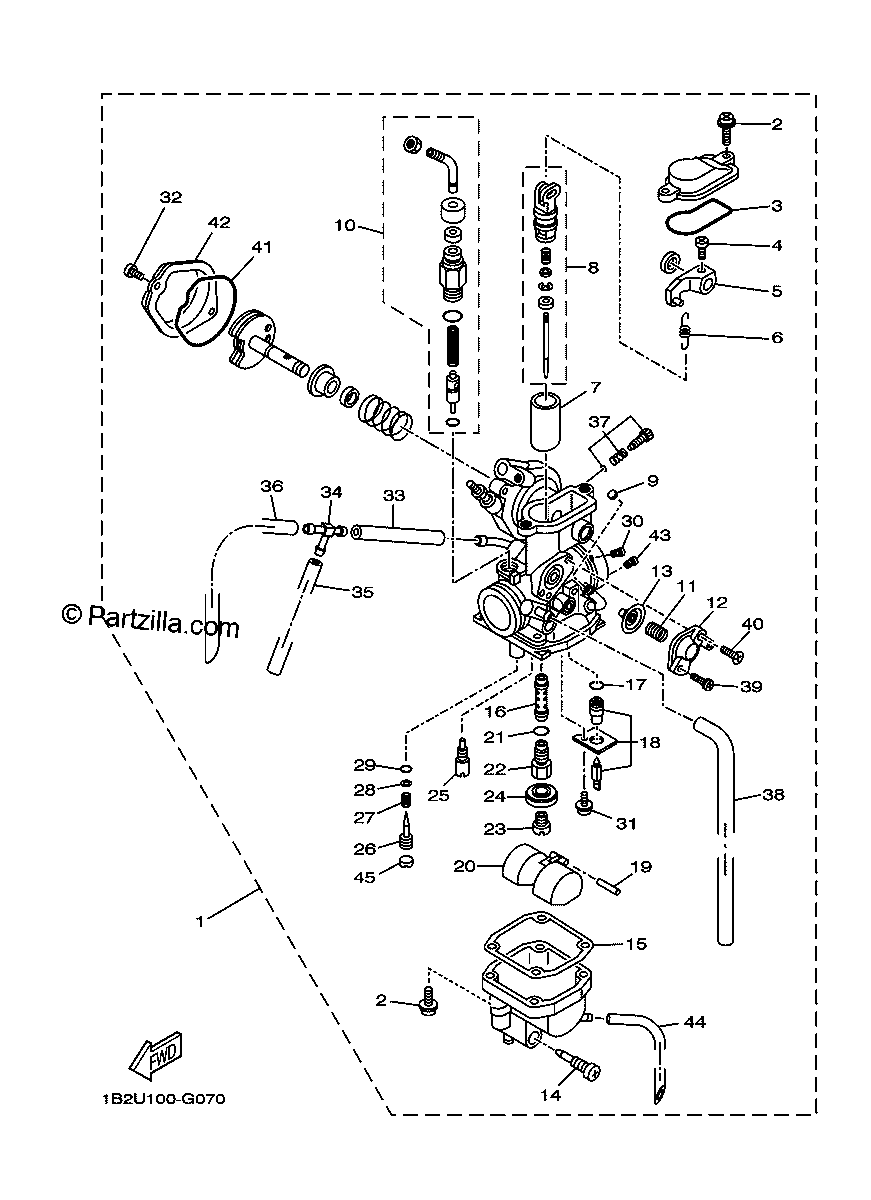

CARBURETOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY 1
$605.26¢302 631
#2
SCREW, WITH WASHER
$2.99¢1 494
#3
O-RING
$14.82¢7 413
#4
SCREW
$5.74¢2 869
#5
LEVER, STARTER
$27.90¢13 950
#6
SPRING
$12.60¢6 300
#7
VALVE, THROTTLE 1
$64.66¢32 331
#8
NEEDLE SET
$37.81¢18 906
#9
NET, FILTER
$15.59¢7 794
#10
STARTER SET
$72.81¢36 406
#11
SPRING, DIAPHRAGM
$15.59¢7 794
#12
COVER, CARBURETOR
$78.53¢39 263
#13
DIAPHRAGM ASSY
$41.39¢20 694
#14
PLUG, DRAIN
$10.64¢5 319
#15
GASKET, FLOAT CHAMBER
$23.64¢11 819
#16
NOZZLE, MAIN
$39.01¢19 506
#17
O-RING
$7.65¢3 825
#18
NEEDLE VALVE SET
$54.00¢27 000
#19
PIN, FLOAT
$7.39¢3 694
#20
FLOAT
$73.76¢36 881
#21
O-RING
$5.66¢2 831
#22
SETTER, NEEDLE JET
$40.44¢20 219
#23
JET, MAIN (#100)
$16.95¢8 475
#24
PLATE,BAFFLE
$21.81¢10 906
#25
JET, PILOT (#15)
$28.69¢14 344
#26
SCREW, PILOT
$23.34¢11 669
#27
SPRING, AIR ADJUSTING
$12.31¢6 156
#28
WASHER
$7.65¢3 825
#29
O-RING
$8.97¢4 488
#30
JET, MAIN (#120)
$12.31¢6 156
#31
SCREW, WITH WASHER
$1.90¢950
#32
SCREW, PAN HEAD
$5.30¢2 650
#33
PIPE 1
$22.54¢11 269
#34
NIPPLE
$20.80¢10 400
#35
PIPE
$18.57¢9 288
#36
PIPE
$18.82¢9 413
#37
THROTTLE SCREW SET
$70.92¢35 463
#38
PIPE
$42.25¢21 125
#39
SCREW
$8.73¢4 363
#40
SCREW
$5.00¢2 500
#41
O-RING
$5.74¢2 869
#42
COVER 1
$17.24¢8 619
#43
JET, MAIN (#80)
$11.89¢5 944
#44
PIPE, OVER FLOW 1
$6.72¢3 363
#45
CAP
$8.97¢4 488
