REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

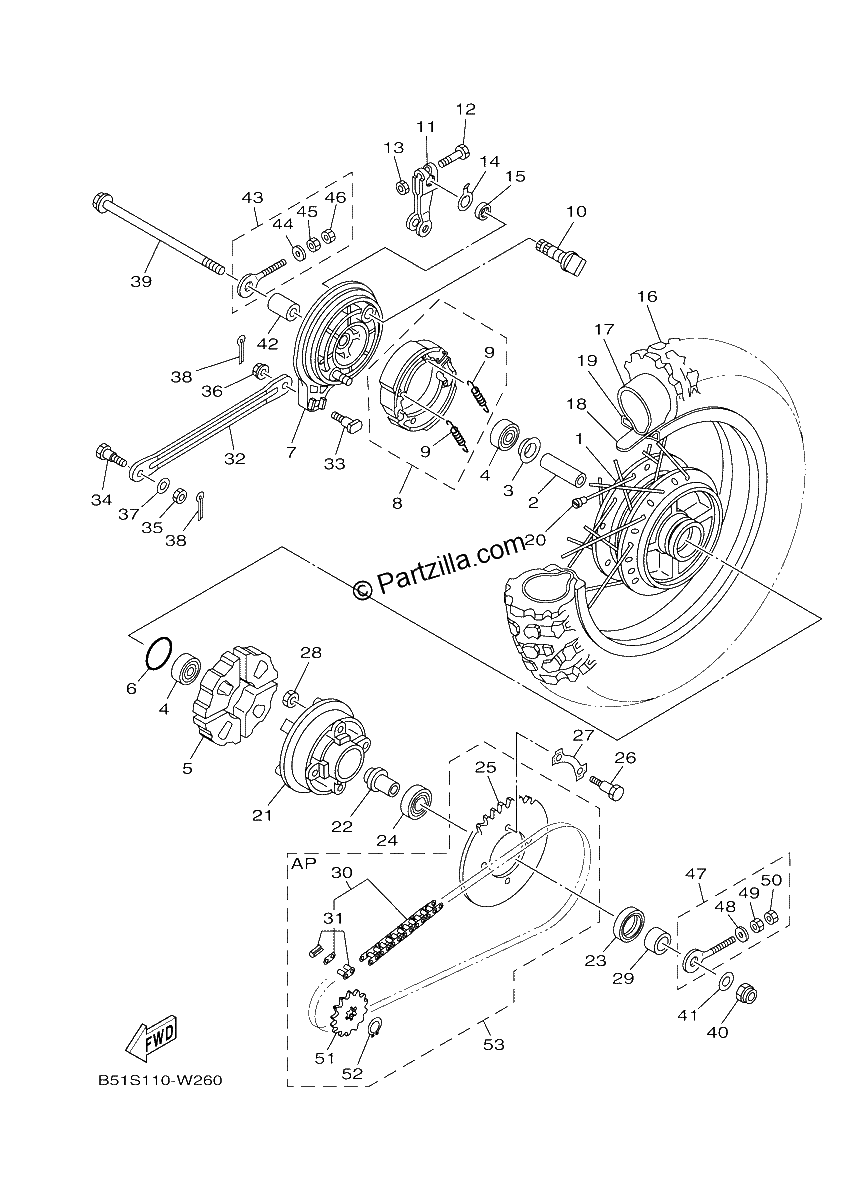

Diagrama de REAR WHEEL

Repuestos

#1
21W-25311-00-35
HUB, REAR | SL FOR DPBSE
$139.01¢69 506
1
#2
90560-12145-00
SPACER
$20.49¢10 244
1
#3
102-25315-00-00
FLANGE, SPACER
$7.39¢3 694
1
#4
93306-30111-00
BEARING
$40.79¢20 394
1
#5
21W-25364-00-00
DAMPER
$25.18¢12 588
1
#6
93210-41041-00
O-RING
$6.99¢3 494
1
#7
5B6-25321-00-35
PLATE, BRAKE SHOE | SL FOR DPBSE
$120.49¢60 244
1
#8
4BE-W253E-00-00
BRAKE SHOE KIT
$27.27¢13 638
1
#9
90506-15260-00
SPRING,TENSION
$6.85¢3 425
1
#10
3Y6-25351-00-00
CAMSHAFT
$73.65¢36 825
1
#11
538-25355-00-00
LEVER, CAMSHAFT
$39.31¢19 656
1
#12
90101-06278-00
BOLT
$2.23¢1 113
1
#13
95307-06600-00
NUT
$3.21¢1 606
1
#14
3Y6-2533A-01-00
PLATE, INDICATOR
$6.49¢3 244
1
#15
93109-14021-00
OIL SEAL
$12.61¢6 306
1
#16
94130-121A7-00
TIRE (3.00-12 2PR) | CHENG SHIN
$54.55¢27 275
1
#17
94227-12216-00
TUBE (2.75/3.00-12 TR4)
$46.76¢23 381
1
#18
94330-12130-00
BAND, RIM (3.00-12)
$30.92¢15 462
1
#19
94416-12002-00
RIM (1.60-12)
$181.70¢90 850
1
#20
21W-25304-00-00
SPOKE SET, REAR
$73.76¢36 881
1
#21
296-25366-01-35
CLUTCH, HUB | SL FOR DPBSE
$68.09¢34 044
1
#22
21W-25387-00-00
AXLE, SPROCKET
$34.04¢17 019
1
#23
93106-30004-00
OIL SEAL
$13.08¢6 538
1
#24
93306-00416-00
BEARING (B6004RS)
$43.72¢21 862
1
#25
5A7-25435-01-00
SPROCKET, DRIVEN (35T)
$29.98¢14 988
1
#26
90101-08672-00
BOLT
$3.30¢1 650
1
#27
4AW-25412-00-00
WASHER
$5.19¢2 594
1
#28
90179-08168-00
NUT
$8.06¢4 031
1
#29
90387-207G3-00
COLLAR
$16.04¢8 019
1
#30
94580-52090-00
CHAIN (DID 420M 90LL)
$33.59¢16 794
1
#31
94680-52001-00
JOINT, CHAIN (DID 420M)
$3.30¢1 650
1
#32
4BC-25371-00-00
BAR, TENSION
$18.90¢9 450
1
#33
90109-08183-00
BOLT
$7.35¢3 675
1
#34
90109-08368-00
BOLT
$8.31¢4 156
1
#35
95307-08700-00
. Nut
$8.39¢4 194
1
#36
95707-08500-00
NUT, FLANGE
$1.79¢894
1
#37
92902-08600-00
WASHER, plate
$2.76¢1 381
1
#38
91402-20012-00
PIN, COTTER
$2.20¢1 100
1
#39
5HN-25381-00-00
AXLE, WHEEL
$26.52¢13 263
1
#40
90185-12007-00
NUT, SELF-LOCKING
$10.64¢5 319
1
#41
90201-12045-00
WASHER, PLATE
$6.14¢3 069
1
#42
90387-12412-00
COLLAR
$16.38¢8 188
1
#43
3AC-2538G-10-00
PULLER, CHAIN
$13.96¢6 981
1
#44
90201-061A5-00
WASHER, PLATE
$6.99¢3 494
1
#45
90170-06184-00
NUT
$5.95¢2 975
1
#46
95307-06600-00
NUT
$3.21¢1 606
1
#47
4GL-2538G-10-00
PULLER, CHAIN
$18.73¢9 363
1
#48
90201-061A5-00
WASHER, PLATE
$6.99¢3 494
1
#49
90170-06184-00
NUT
$5.95¢2 975
1
#50
95307-06600-00
NUT
$3.21¢1 606
1
#51
93812-14814-00
SPROCKET, DRIVE (5B6
$14.65¢7 325
1
#52
93410-20038-00
CIRCLIP
$3.11¢1 556
1
#53
B51-W001A-00-00
CHAIN & SPROCKET KIT
$113.06¢56 531
1
